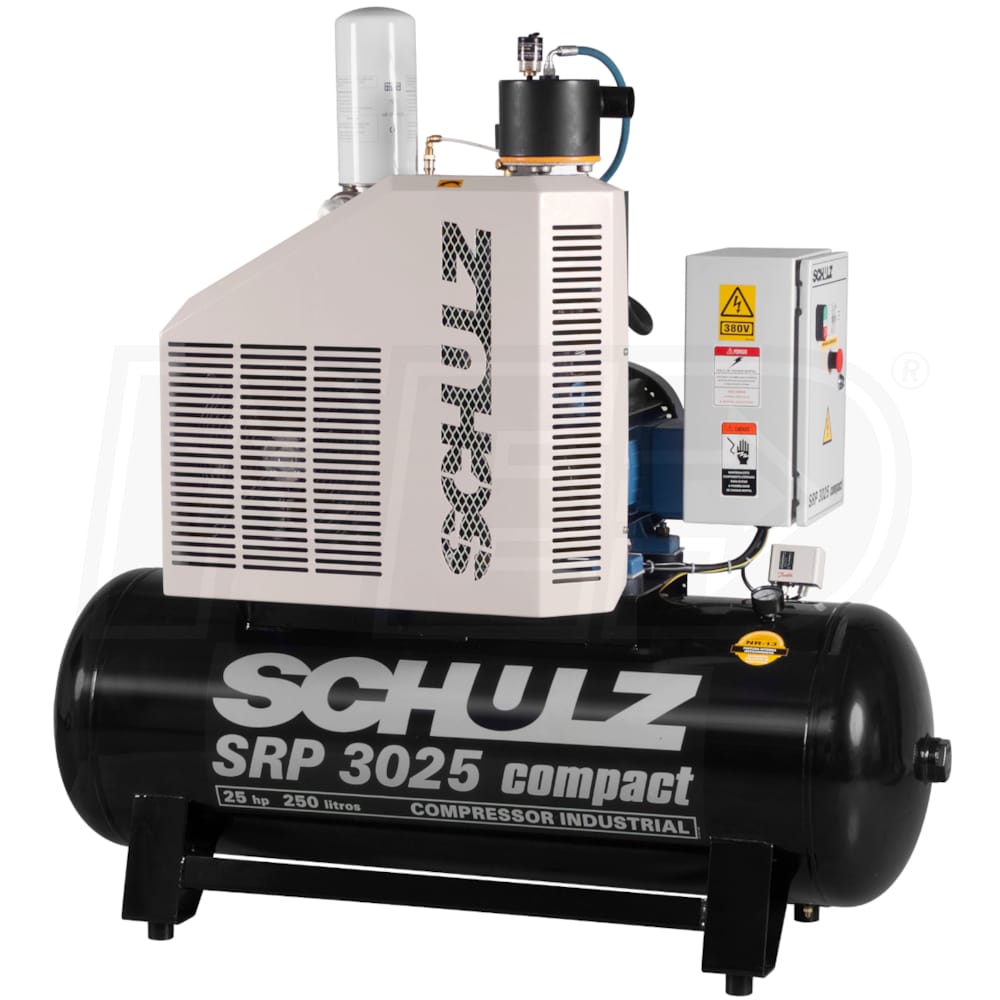

Schulz SRP 3025 Compact - 25-HP 80-Gallon Open Rotary Screw Air Compressor (208-230V 3-Phase)
Model:
970.2840-S
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
3-Phase
CFM
89
Tank Size
80
- SRP 3025 Compact 25-HP 80-Gallon Rotary Screw Compressor (208-230V 3-Phase)
- Combines technology and experience to generate efficiency and productivity
- Synonymous with versatility for applications requiring high performance
- Compact, 2-In-1 System - Open Compressor & Receiver
- Only 61" (L/W) x 26" (D) x 60" (H)
- Tank-mounted design allows for a compact foot print
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Rotary Air End
- 89 CFM @ 125 PSI (125 Max PSI); 100% Duty Cycle
- Oil-injected, belt-driven design for efficient operation
- 25-HP TEFC IP55 Electric Motor (208-230V 3-Phase)
- Provides an efficient and reliable power source
- Automatic starters with phase and sequence failure detection
- 24V Microprocessor Controller
- Easily adjustable parameters of operation
- Provides constant reading for simple monitoring
- Helps simplify troubleshooting compressor issues
- 80-Gallon Horizontal Air Receiver (ASME Certified)
- Ensures maximum safety during operation
- 12-Month Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
970.2840-S
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
86
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
89
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Product Category
Air Compressor - Stationary
Weight
864 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
61 Inches
Product Depth
26 Inches
Product Height
60 Inches
Power Type
Electric
UPC
7909480007116
