Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
75
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Excellent Performance
- Even where ambient & inlet temperatures are elevated
- Nominal air pressure of 100 PSI; 203 PSI maximum
- Energy Efficient Sizing
- Matches the compressor's displacement, saving energy

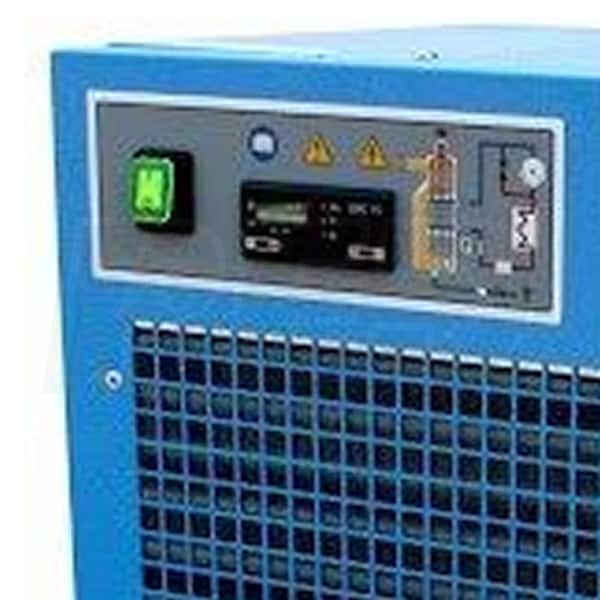

- Electronic Controller
- Digitally shows temperature & dew point
- Controls the drain valve through a timer
- Controls the condenser fan through a probe
- High-Efficiency Compressor
- Circulates the refrigerant through the system
- Totally New Design
- Delivers high dependability & low power consumption
- Quick disconnect automatic drain valve doesn't need special tools
- Requires a 115V, single phase circuit
- Environmentally Friendly Refrigerant
- R134a is effective & easier on the environment
- Compact Footprint
- Conveniently sized 29-1/8" x 13-9/16" x 15-3/8"
- Weighs only 75 pounds; easy to install
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ADS 75
General Information
Product Category
Air Compressor Accessories
Filter
High Efficiency
Yes
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
75
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
203
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
100
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
113
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Dry Amp Draw
15.44
Overview
Product Category
Air Compressor Accessories
Weight
75 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
17 Inches
Product Width
14 Inches
Product Height
30 Inches
Power Type
Electric
Additional Model Numbers
ADS-75, ADS 75
Reviews
(1)
Schulz ADS 75 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Manuals
ADS 75
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

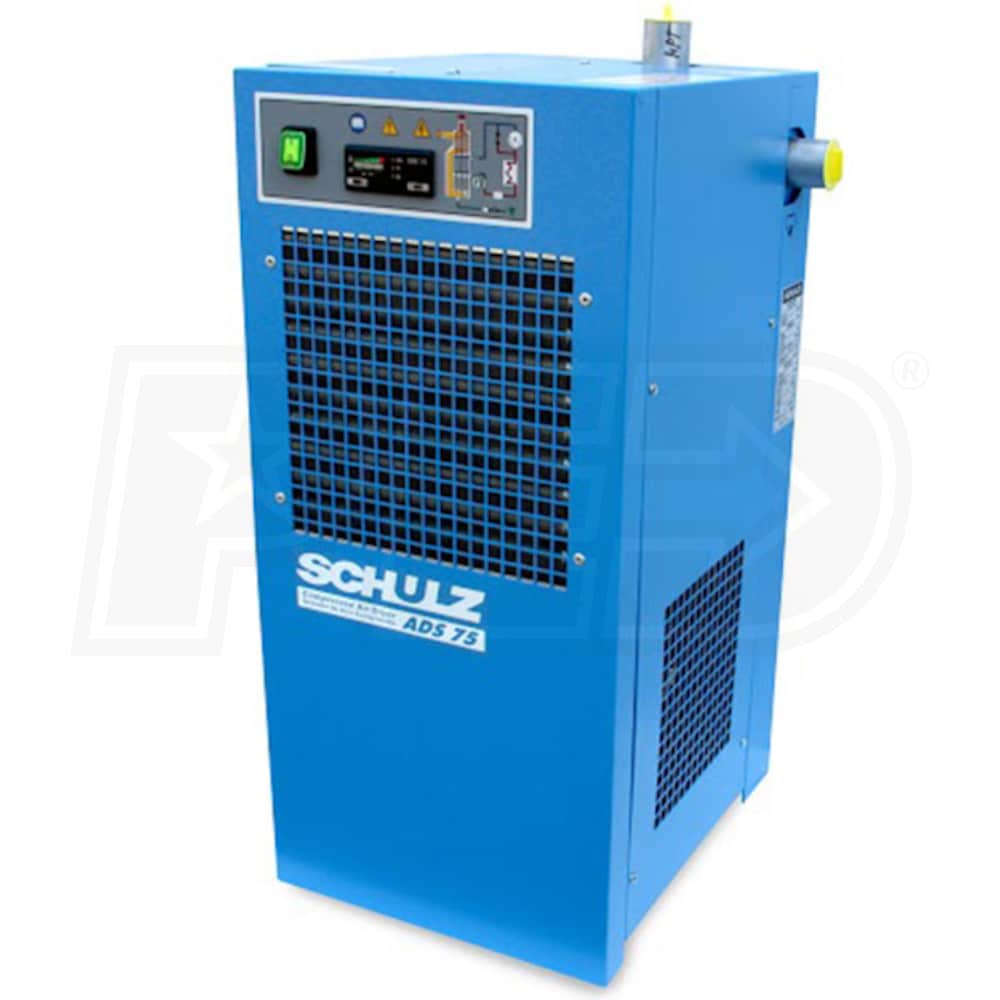

Schulz ADS 75 Non-Cycling Refrigerated Air Dryer (75 CFM 115V 1-Phase)
