Transair CP05 U1N02
Transair CP05 U1N02
Hover to zoom
1 Of 5

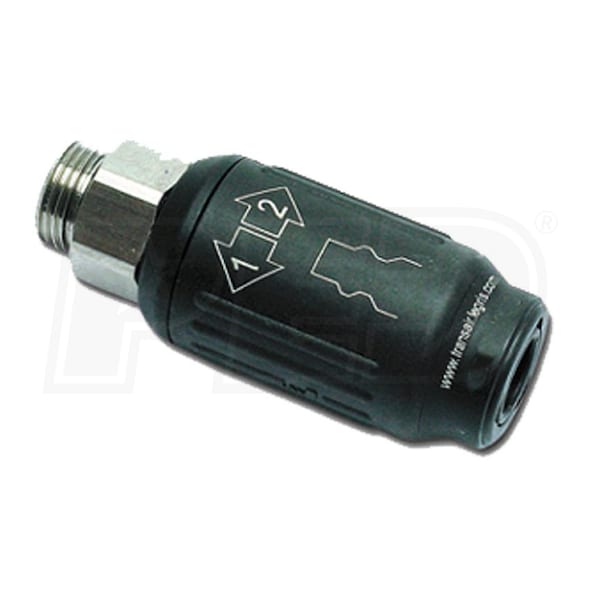

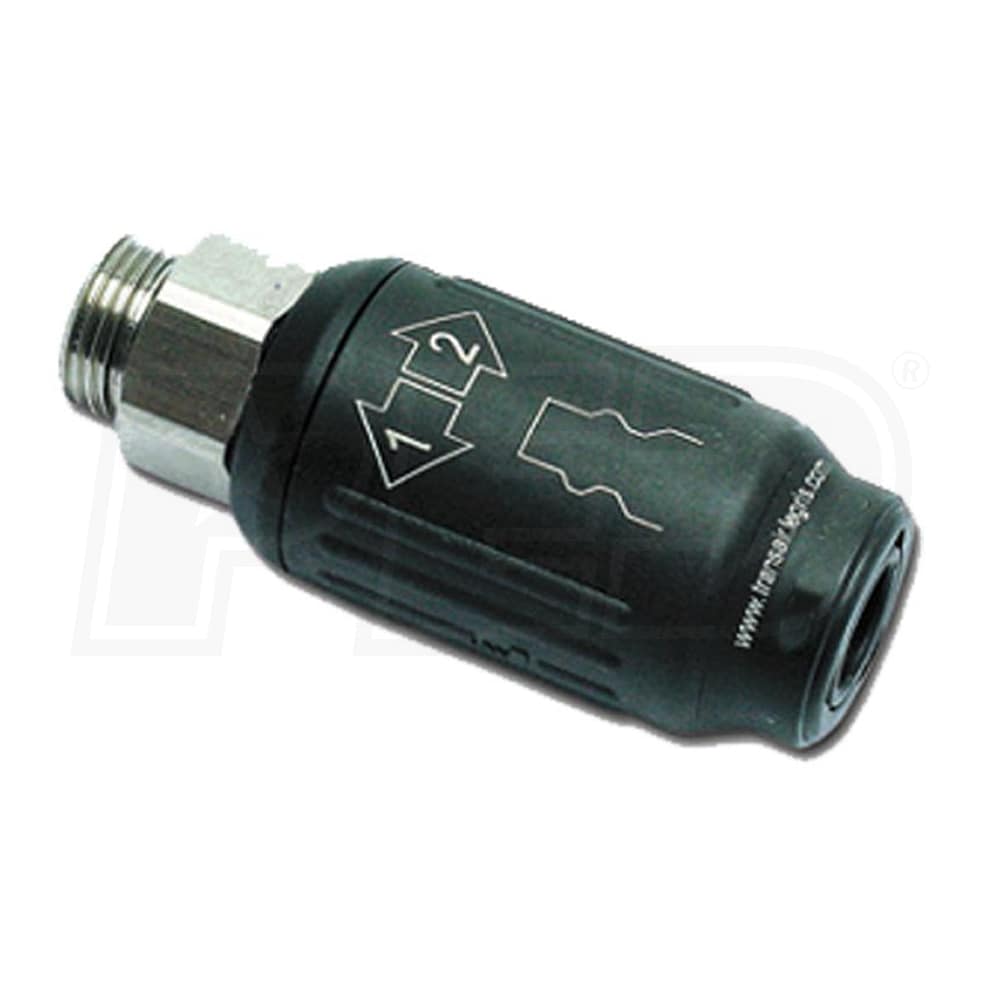

Transair 1/4-Inch Male NPT Coupler (ISO B 1/4-Inch Safety) (Box of 6)

Model:

CP05 U1N02

Write A Review
$208.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Transair 1/4-Inch Male NPT Coupler (ISO B 1/4-Inch Safety) (Box of 6)
Transair 1/4-Inch Male NPT Coupler (ISO B 1/4-Inch Safety) (Box of 6)
Model: CP05 U1N02
$208.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Transair Fast, Flexible & Easy-To-Use Series Pipe Connectors
  • Most effective and efficient compressed air piping system
  • Offers significant savings on installation and maintenance
  • Helps overcome constraints in structures of industrial buildings
  • Lightweight Safety Coupler
  • Industry Standards: ISO 4414, Series B; Flow Rate 47 SCFM
  • Disconnects by a double twist of the sleeve to prevent serious hose whip related injuries
  • Polymer HR / Zamac w/ Plymer HR Sleeve Material
  • Stainless steel spring & bearing, nitrile seal and treated seal probe
  • 100% recyclable, silicone-free and made of non-flammable materials
  • Resistant to minerals, synthetic compressor oils & aggressive environments
  • Full Bore Design
  • Delivers high flow with extremely low-pressure loss
  • Ideal for automotive assembly, industrial and food & beverage
  • Quick Connection Technology
  • Eliminates special install tools and the need to solder pipe
  • Allows systems to be modified and reconfigured in minutes
  • 1/4" Body Size; 1/4" Male NPT Connection
  • Max working pressure 232; Max working temp 140 F
  • 188psi when system is operated between -4 to 140 F
  • 232psi when system is operated between -4 to 115 F
  • Transair 10-Year Guarantee
  • Leak free, easy-to handle and safe to work with on elevated platforms
  • Suitable for compressed air (dry, wet, lubricated) and inert gases
  • For optimal results, Transair couplers should be used w/ Transair hose plugs
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

CP05 U1N02
specs product image PID-96768
General Information
Product Category
Air Compressor Accessories
Air Tools
Max Tool PSI
232
NPT
1/4"
Size
1/4"
Overview
Product Category
Air Compressor Accessories
Weight
0.18 Pounds
Consumer Warranty
10 Years
Commercial Warranty
10 Years
Product Length
10.75 Inches
Product Width
8.25 Inches
Product Height
5.75 Inches
