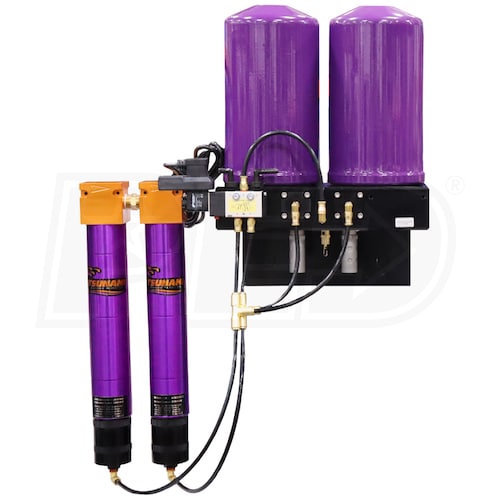

Tsunami Pure 7 Series 7.5-HP 1/2" Regenerative Air Dryer (25 CFM) w/ Moisture Minder Pneumatic Drain

Model:

21999-1140-MM

Write A Review
$2,654.10
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

Tsunami Pure 7 Series 7.5-HP 1/2
Tsunami Pure 7 Series 7.5-HP 1/2" Regenerative Air Dryer (25 CFM) w/ Moisture Minder Pneumatic Drain
Model: 21999-1140-MM
$2,654.10
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

N/A

Dryer Voltage

115V 1-Phase

Air Dryer CFM

25

Rated HP

7.5


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Tsunami Pure 7 Series - 25 CFM Regenerative Dryer System
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil and particulates before entering the dryer
  • Compact, Expandable Design
  • Comes complete with pre-filter, auto drains & mount bracket
  • Installs in minutes between receiver tank and piping
  • Great for mobile operations; auto paint, powder coating, etc.
  • Stage 1: Water Separator
  • Water and particulates are removed down to 10 micron
  • Stage 2: Oil Coalescing Filter
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • Lowest operating cost & maintenance of any dryer
  • 1/2" Inlet & 1" Outlet NPT Connectors
  • Max inlet pressure is 175 PSI; Min 80 PSI
  • Requires connection to 120-volt outlet
  • Handles up to 150°F inlet air temperature
  • Moisture Minder Pneumatic Drains
  • Automatically eliminates water & oil in the filter sumps
  • Valve operates without pressure drop in air system
  • 1-Year Manufacturer Warranty
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

21999-1140-MM
specs product image PID-145083
General Information
Product Category
Air Compressor Accessories
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
25
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
175
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
150
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Alarm Lights
No
Regenerative
Yes
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Rated HP Learn More
Rated HP
Possible corresponding compressor HP
7.5
Overview
Product Category
Air Compressor Accessories
Weight
62 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
8 Inches
Product Width
25 Inches
Product Height
29 Inches
Power Type
Electric
UPC
810099782424
