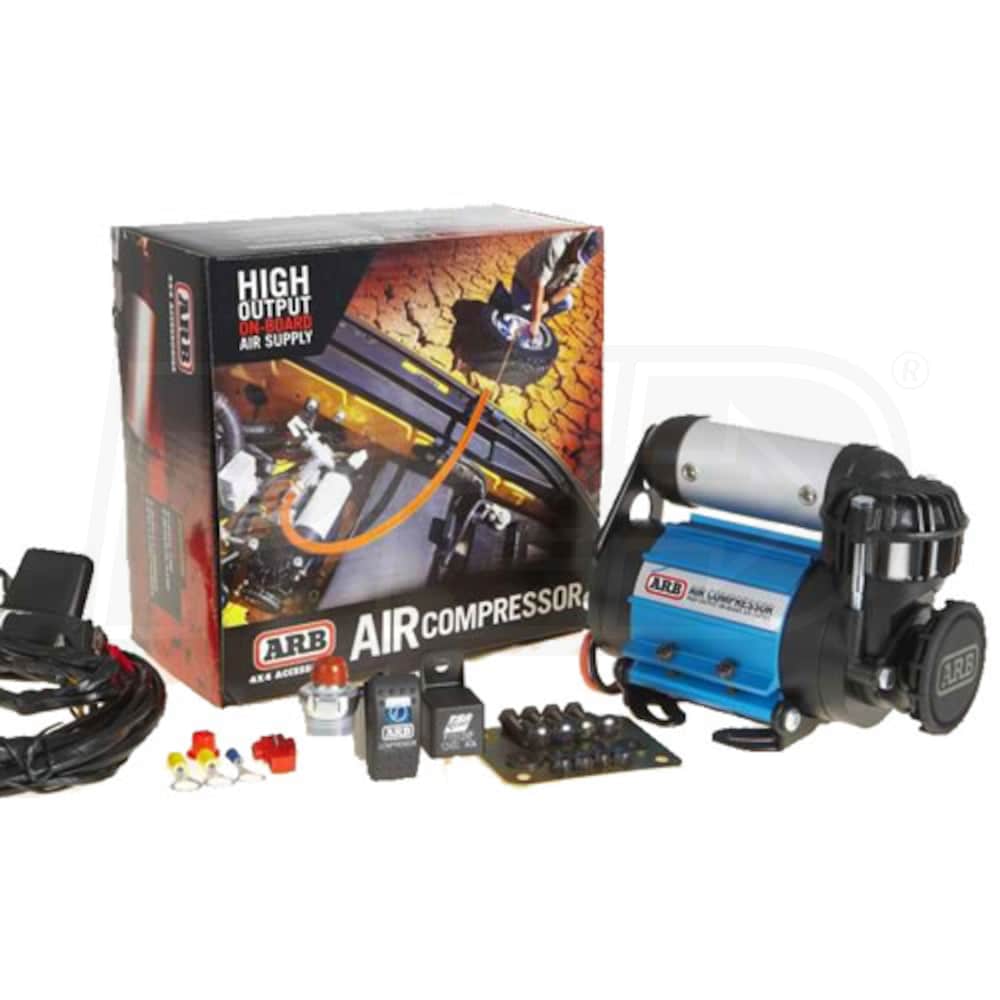

ARB Air Locker 12-Volt Onboard Medium-Duty Ultra-Compact Vehicle Tankless Air Compressor
Model:
CKMA12
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
DC Compressors
CFM
2.3
Tank Size
0
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Ultra-Compact High Volume Air Source
- Made to take the tough demands of 4 wheel drive vehicles
- Fits where other high-flow units can't
- Works With ARB's Air Locker Differential Lock
- Pneumatic supply & electric control for ARB Air Locker(s)
- Requires ARB Pump-Up Kit (part #171302) for Air Locker use
- Fast, Quiet & Powerful
- Enough output to air up 4 35"-27" tires in a single duty cycle
- Typically airs up a 35" tire in just over 2 minutes
- Ball-bearing equipped motor is quiet enough to mount in the cab
- Produces 2.3 CFM at 29 PSI
- Complete Wiring Harness
- Includes Air Locker solenoid plug-in contacts
- Splash-Resistant Washable Air Filter
- High-flow sintered bronze filter cartridge stands up to hard use
- Anodized Mounting Bracket
- Dissipates motor heat; compressor can be repositioned 180°
- Handy & Versatile
- Inflate car, truck, SUV, motorcycle, ATV tires, rafts, toys, etc.
- ARB Part #171302 Pump Up Kit needed
Specifications
CKMA12
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
25
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.3
CFM Rated @
29 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Weight
11 Pounds
Consumer Warranty
2 Years
Product Length
7.5 Inches
Product Width
3.9 Inches
Product Height
5.7 Inches
