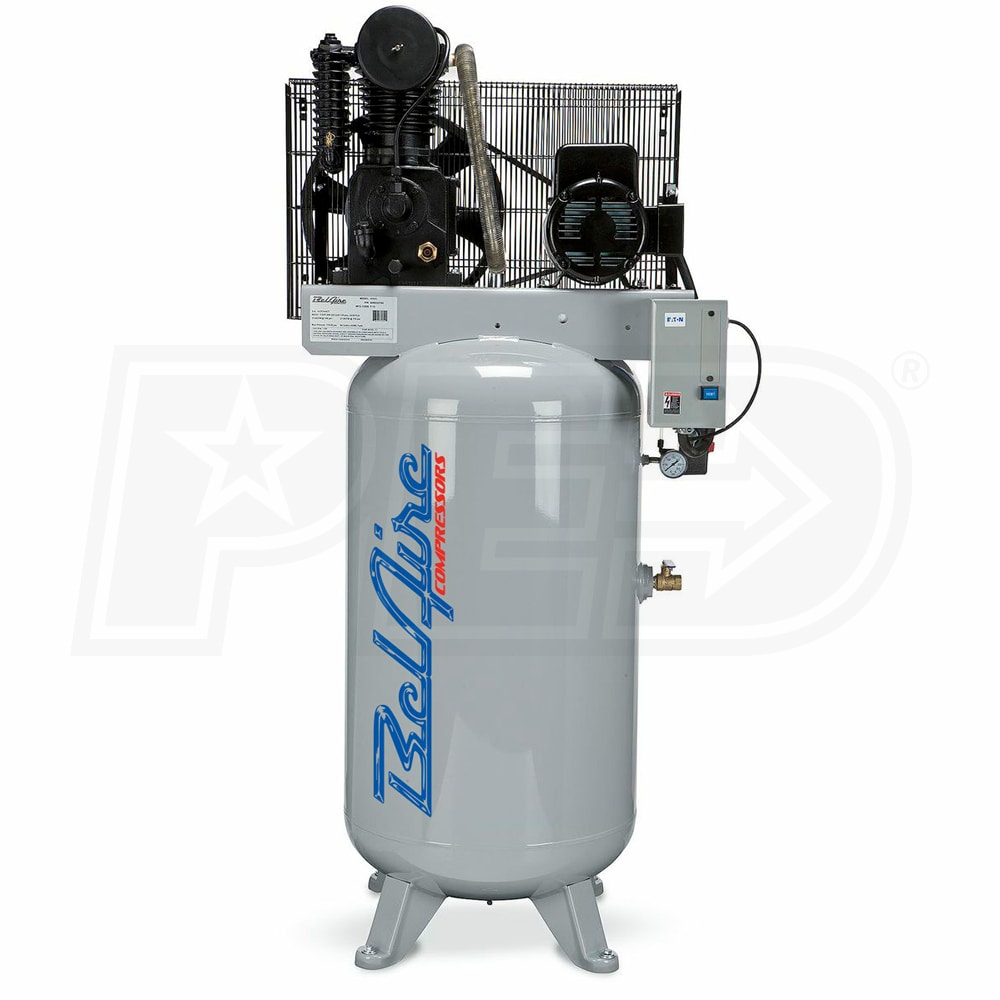

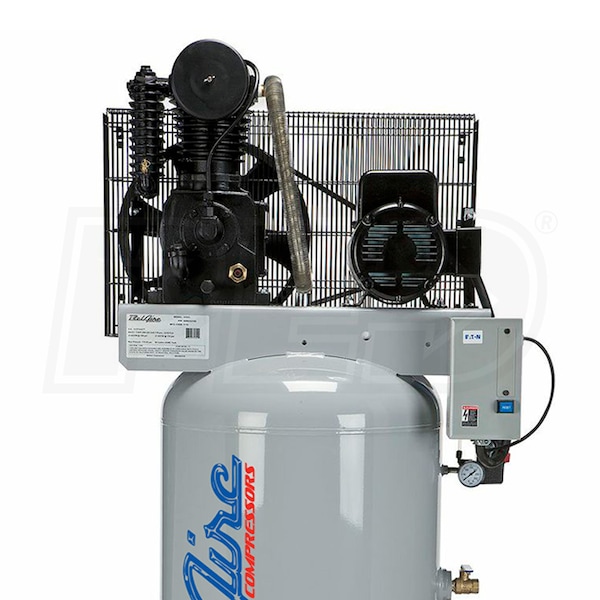

BelAire Elite Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 1-Phase)

Model:

418VLE

Write A Review
$3,519.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

BelAire Elite Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 1-Phase)
BelAire Elite Iron Series 7.5-HP 80-Gallon Two-Stage Cast Iron Air Compressor (208-230V 1-Phase)
Model: 418VLE
$3,519.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

23

Tank Size

80

  • BelAire 7.5-HP Elite Iron Series Splash Lubricated Air Compressor
  • Great performance and value offer professional quality
  • Lubricants protect against high heat and extend equipment life

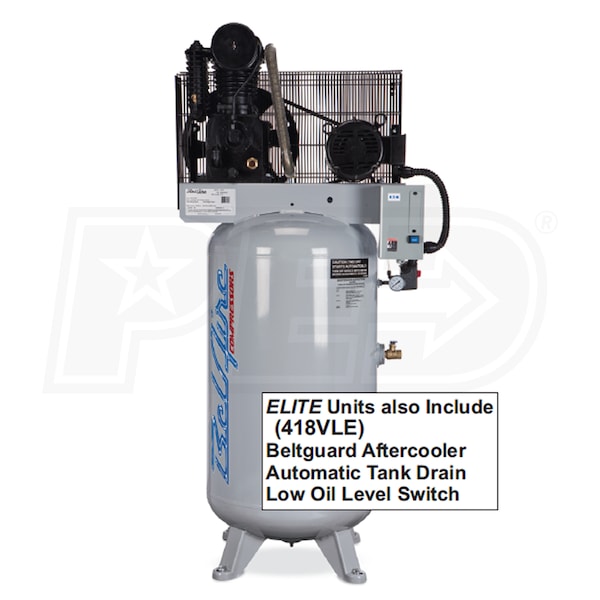

  • Fully packaged unit includes auto drain, aftercooler, magnetic starter, pressure switch and low oil switch

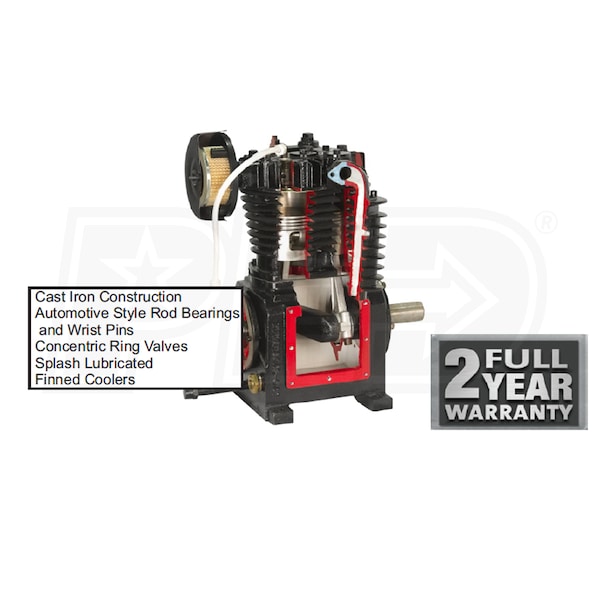

  • Solid Cast Iron Pump Construction
  • Adds dependability and smooth operation
  • Finned coolers enable more efficient heat exchange
  • Automotive-style rod bearing & wrist pins allow less oil carryover
  • Space-saving concentric valves offer compact design and max delivery volume
  • High-Performance Baldor Motor
  • Runs smoothly, quietly and efficient as possible
  • Improves your systems reliability and performance
  • Thermal overload switch automatically prevents overheating
  • Start-Stop Pressure Switch Controls
  • Automatically controls on/off cycling of compressor
  • Stops when cut-off pressure has reached capacity
  • Magnetic Starter
  • Safe method for starting an electric motor with a large load
  • Under-voltage & overload protection w/ automatic cutoff in the event of a power failure
  • High-Flow Wire Beltguard Aftercooler
  • Cools compressed air & removes moisture from air stream
  • Improves air quality for longer lifespan of tools and equipment
  • Elite Series Automatic Tank Drain (Not Electronic)
  • Pressurized auto draining makes tank maintenance effortless
  • Routine draining prevents air contamination & prolongs tool life
  • Low Oil Level Switch
  • Automatically disables your compressor if the oil level is too low
  • Protects your compressor's pump from seizing when your oil level drops
  • 80-Gallon ASME Air Tank
  • Pressure gauge shows the regulated pressure of compressed air
  • Safety valves prevent pressure in tank from rising over limit
  • 2 Year Bumper to Bumper Warranty
  • No additional purchase necessary
  • 100% factory tested
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

418VLE
specs product image PID-67936
General Information
Product Category
Air Compressor - Stationary
Engine
HP
7.5
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
23
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
580 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
37 Inches
Product Width
24 Inches
Product Height
72 Inches
Dimensions
610lbs Ship Weight
Power Type
Electric
UPC
738435744373
