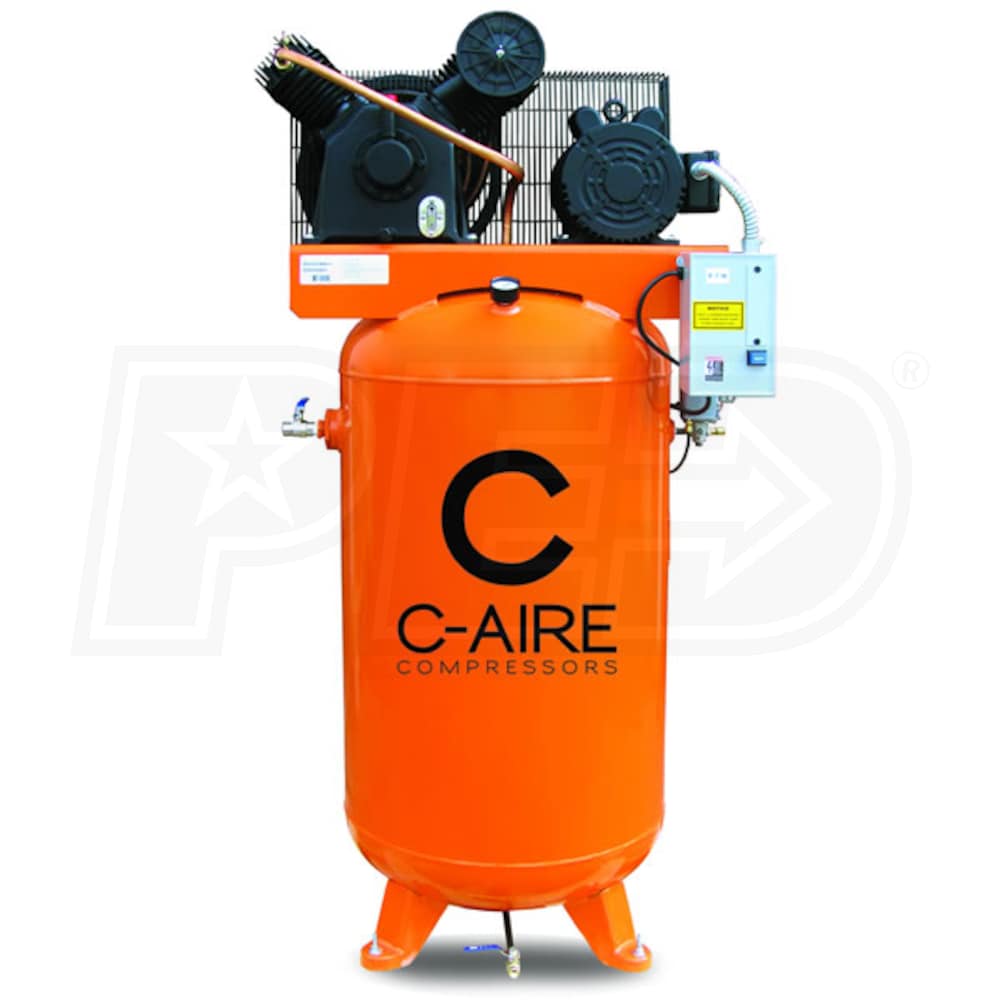

C-Aire 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
Model:
A050V080-1230
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
17
Tank Size
80

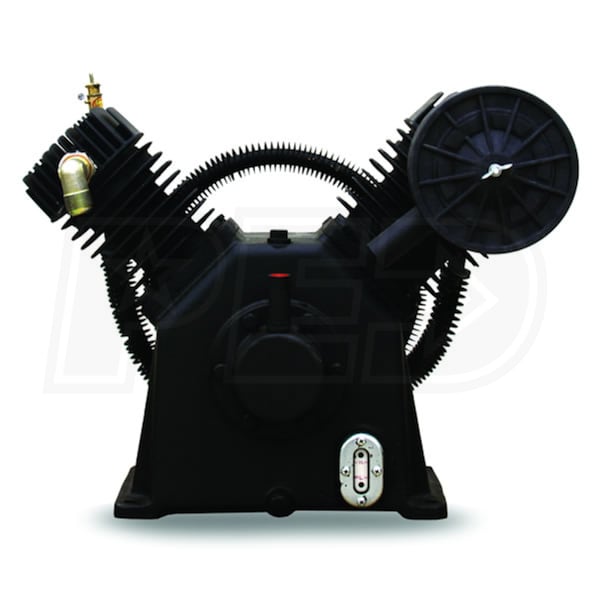

- Solid Cast Iron Cylinder 2 Stage Pump
- Delivers 17 CFM at 175 PSI; 200 PSI maximum
- Rugged components provide long-lasting dependability
- Low 885 RPM extends pump life, runs quieter
- Finned Inter-Stage Cooling
- Improves cooling & efficiency for optimum pump performance
- 5-HP Heavy Duty Motor
- Pre-wired magnetic starter for simple installation
- Ideal for farm, small auto repair or auto body shop
- 80 Gallon Vertical Tank
- ASME certified for reliability & safety
- Fully Enclosed Belt Guard
- Protects the belt & operator
- Manual Air Tank Drain
- Makes tank easy to maintain
- 208-230 Volt, 40-Amp, Single Phase Power
- Easily wires into either your 208V or 230V, 1-phase system
- INSTALL-80V installation kit recommended (not included)
- 1 Year Factory Warranty
- Extends to 3 years with AX-V95 & registration (sold separately)
Specifications
A050V080-1230
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Weight
550 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
35 Inches
Product Width
24 Inches
Product Height
70 Inches
Power Type
Electric
