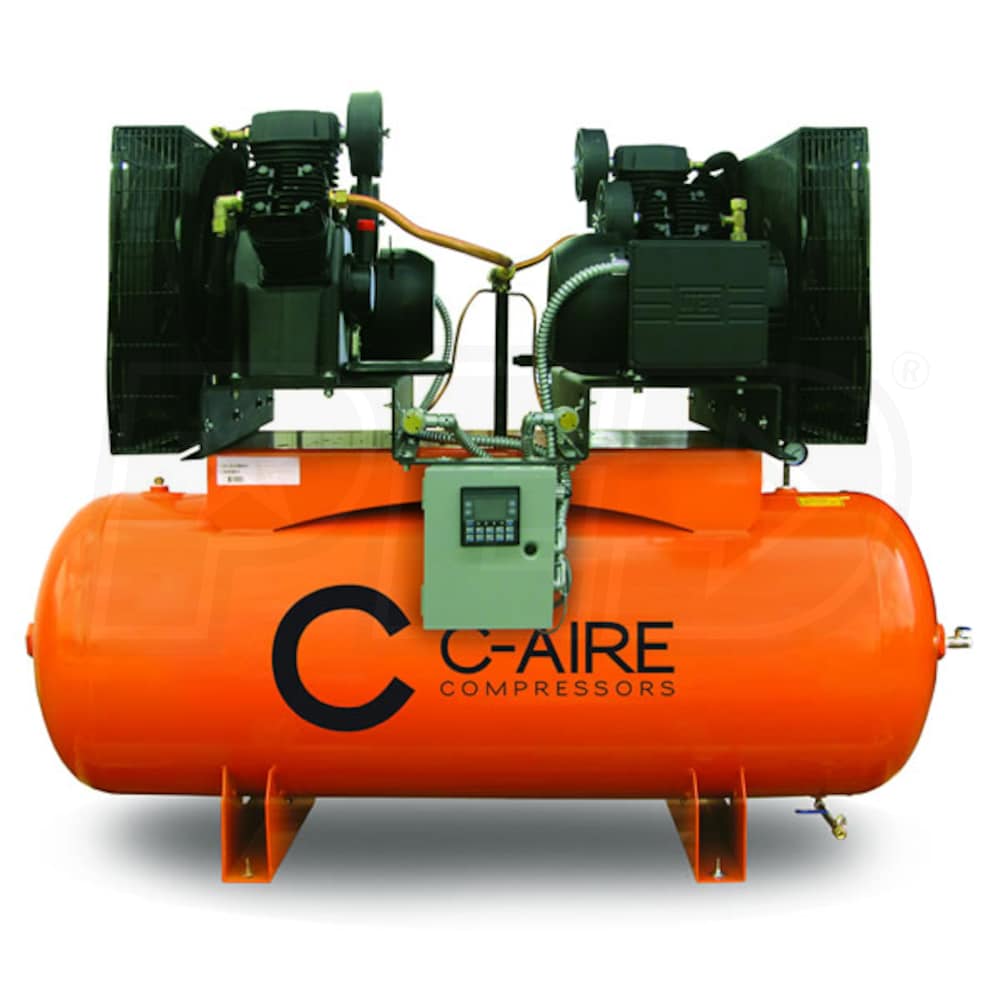

C-Aire 15-HP 120-Gallon Duplex Two-Stage Air Compressor (208-230V 3-Phase)

Model:

A075D120-3230

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
C-Aire 15-HP 120-Gallon Duplex Two-Stage Air Compressor (208-230V 3-Phase)
C-Aire 15-HP 120-Gallon Duplex Two-Stage Air Compressor (208-230V 3-Phase)
Model: A075D120-3230
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

3-Phase

CFM

48

Tank Size

120

  • Two 2-Stage Pumps Work Together Or Separately
  • Delivers 48 CFM at 175 PSI; 200 PSI maximum
  • Perfect for small manufacturing or medium auto repair shops
  • Dependable And Easy To Use
  • Built in redundancy to make sure you get the job done
  • Alternating controls for balanced unit wear & performance
  • Two 7.5 HP Motors Develop 15 HP Together
  • Prewired magnetic starter for easy installation
  • Perfect for applications where a 10HP compressor is too small

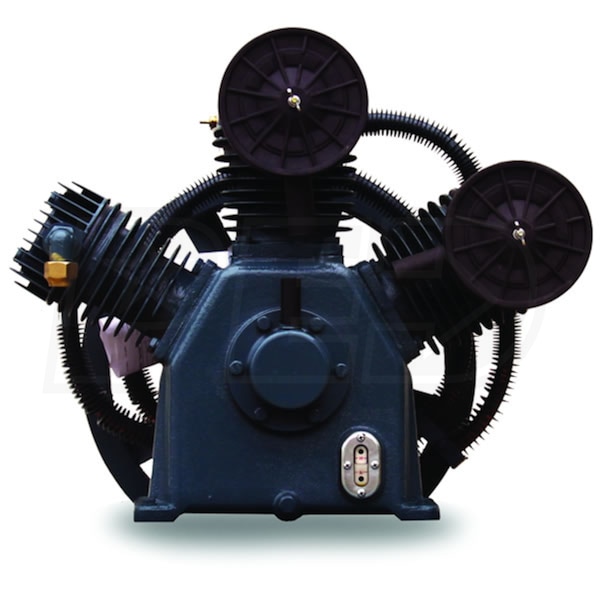

  • 3 Solid Cast Iron Cylinders & Crankcase
  • Rugged components provide long-lasting dependability
  • Center Mounted Electronic Control Panel
  • Balances run time equally between pumps
  • 120 Gallon Horizontal Tank
  • ASME certified for reliability & safety
  • 208 Volt Or 230 Volt, Three Phase Power
  • Easily wires into either your 208V or 230V 3-phase, 50 amp system
  • 649 RPM per pump runs cooler & lasts longer
  • 1 Year Factory Warranty
  • Extends to 3 years with (2) AX-W95 kits (sold separately)

Specifications

A075D120-3230
specs product image PID-11517
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
48
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
1250 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
76 Inches
Product Width
41 Inches
Product Height
53 Inches
Power Type
Electric
