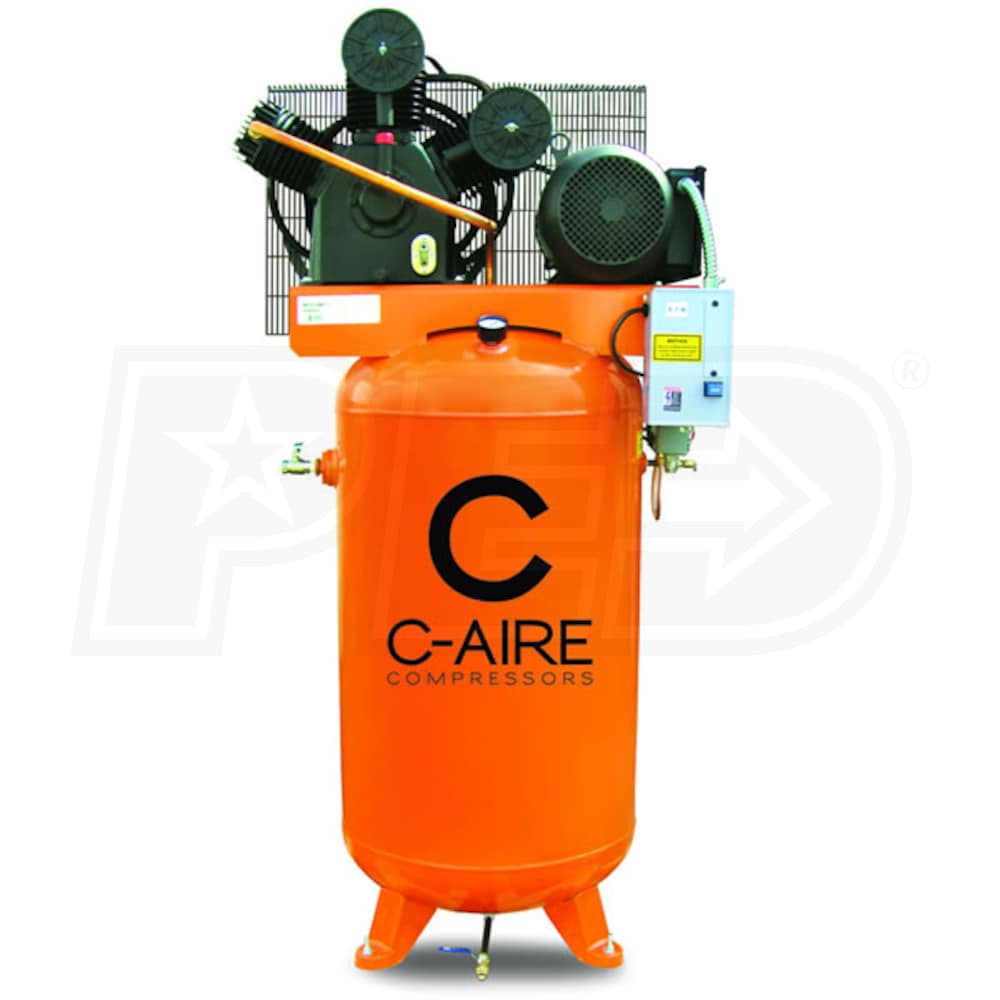

C-Aire 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase) Fully Packaged
Model:
A075V080-3460FP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
24
Tank Size
80

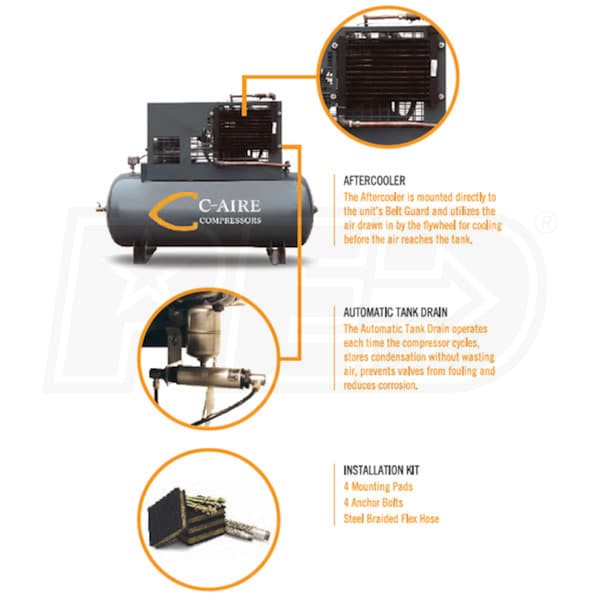

- Fully Packaged
- Includes aftercooler, automatic tank drain, & installation kit
- Affordably reduces moisture almost 60%, prolonging tool life
- Makes sure your compressor is set up correctly from the start

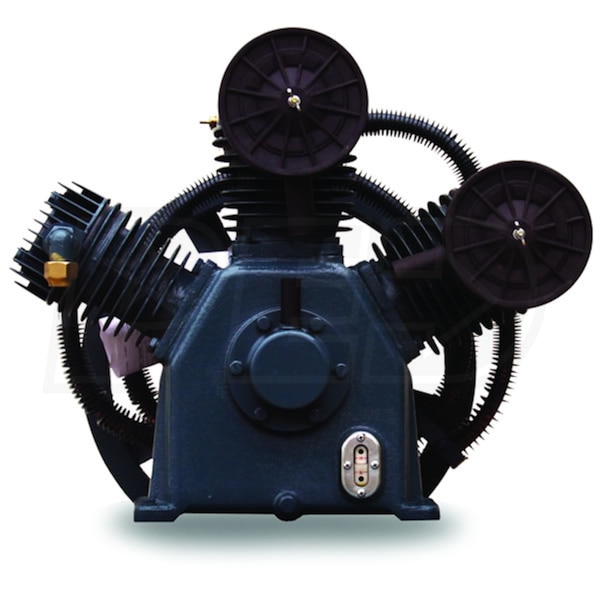

- Solid Cast Iron 3 Cylinder, 2 Stage Pump
- Delivers 24 CFM at 175 PSI; 200 PSI maximum
- Low 649 RPM extends pump life, runs quieter
- Belt Guard Mounted Aftercooler
- The flywheel draws in air for cooling before it reaches the tank
- 7.5-HP Heavy Duty Motor
- Pre-wired magnetic starter for simple installation
- Ideal for small manufacturing, farm, auto body, & tire shops
- 80 Gallon Vertical Tank
- ASME certified for reliability & safety
- Moisture Minder Automatic Tank Drain
- Stores condensation without wasting air; reduces corrosion
- Installation Kit
- Includes vibration pads, anchor bolts, & steel-braided flex hose
- 1 Year Factory Warranty
- Extends to 3 years with AX-W95 & registration (sold separately)
Specifications
A075V080-3460FP
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Overview
Weight
652 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
35 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
