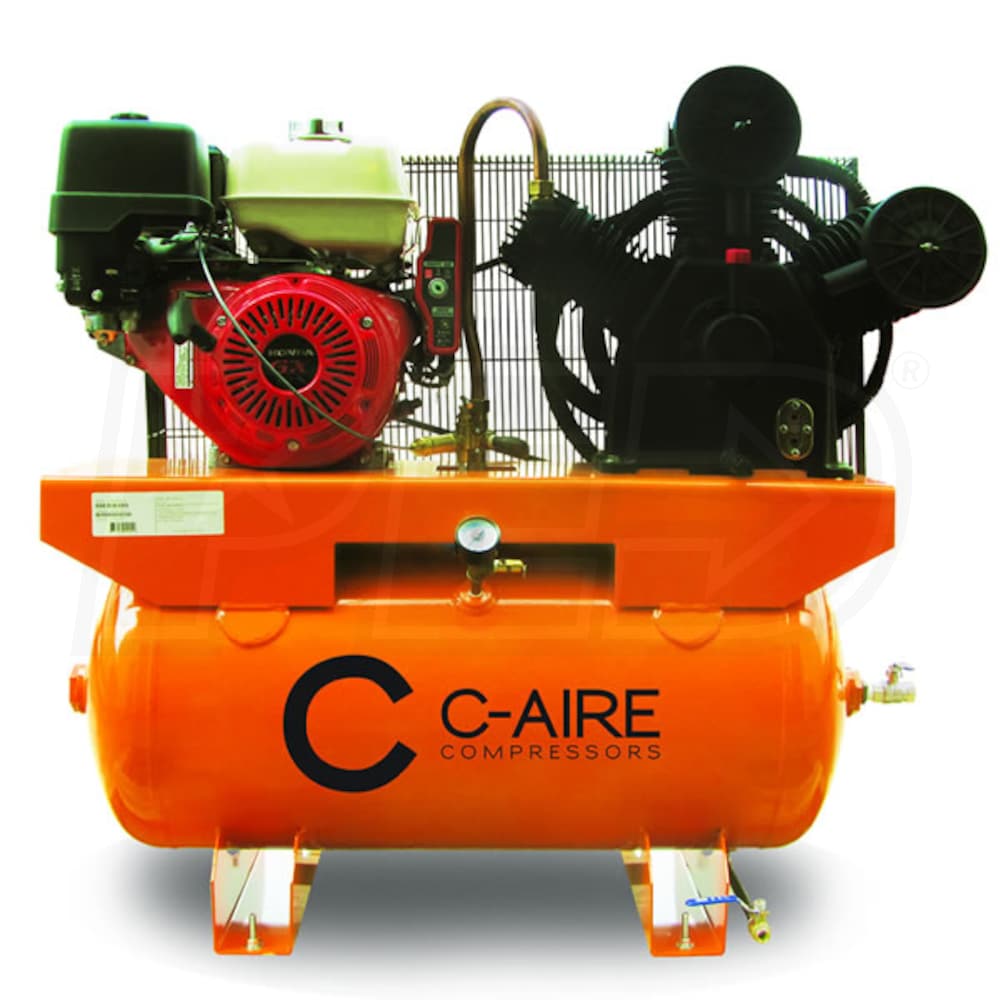

C-Aire 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine

Model:

A130H030-G

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
C-Aire 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
C-Aire 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: A130H030-G
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

26

Tank Size

30

  • Honda Commercial Grade GX 13HP Engine
  • Easy starting reliability & engine idle down
  • Perfect size for a service truck using a 3/4" impact wrench
  • Electric Start
  • Turns the motor over with the turn of a key; pull-start backup

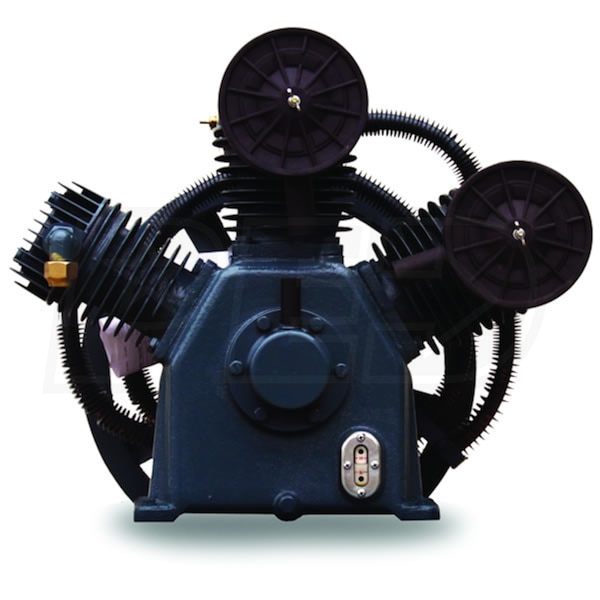

  • Solid Cast Iron 3 Cylinder, 2 Stage Pump
  • Delivers 26 CFM at 175 PSI;
  • Low 750 RPM runs cooler, extends pump life
  • Over 8 Inches Of Finned Inter-Stage Cooling
  • Improves cooling & efficiency for optimum pump performance
  • 30 Gallon Horizontal Tank
  • ASME certified for reliability & safety
  • Fully Enclosed Belt Guard
  • Protects the belt & operator
  • Manual Air Tank Drain
  • Makes tank easy to maintain
  • INSTALL-30H installation kit recommended (not included)
  • 1 Year Factory Warranty
  • Extends to 3 years with AX-W95 & registration (sold separately)

Specifications

A130H030-G
specs product image PID-11518
Engine
HP
13
Engine Brand
Honda GX
Starting System
120-Volt Key Start w/ Recoil
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
26
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
512 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
17 Inches
Product Height
45 Inches
Power Type
Gas
