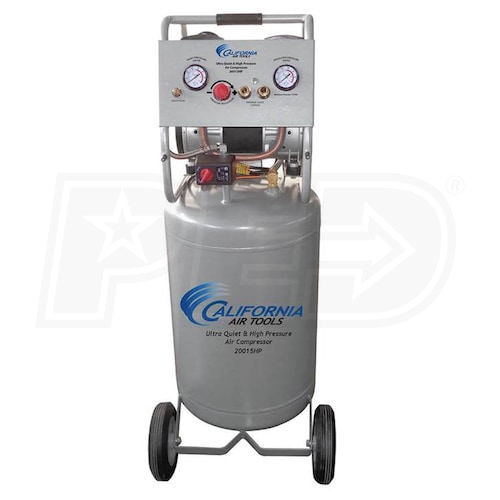

California Air Tools Ultra Quiet & Oil-Free 1.5-HP 20-Gallon Steel Two-Stage Air Compressor w/ Auto Drain

Model:

CAT-20015HPAD

Write A Review
$783.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools Ultra Quiet & Oil-Free 1.5-HP 20-Gallon Steel Two-Stage Air Compressor w/ Auto Drain
California Air Tools Ultra Quiet & Oil-Free 1.5-HP 20-Gallon Steel Two-Stage Air Compressor w/ Auto Drain
Model: CAT-20015HPAD
$783.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

3.8

Tank Size

20

  • Ultra-Quiet, Oil-Free and High Pressure Two-Stage Air Compressor
  • Designed to be one of the quietest 1.5-HP in the industry
  • Oil-Free provides cleaner air for better tool operation
  • Only 70 decibels of sound; ideal for inside jobs
  • High Performance Oil-Free Two-Stage Dual Piston Pump
  • Designed to have a life cycle before wear of 3000 Plus hours
  • Engineered for high performance and durability
  • Use in a variety of temperatures (cold starts) & uneven terrains
  • EZ-1 Automatic Drain Valve
  • Eliminates manually draining your air compressor tank
  • Less service & maintenance with at least 30% less noise
  • Produces 3.80 CFM @ 90 PSI; 175 PSI Maximum Pressure
  • Recovery time from 145 PSI to 175 PSI - 120 Seconds
  • Air filters protect unit in dusty/dirty environments
  • Durable 1.5-HP Oil-Free 110-Volt Motor
  • Operates at only 1750 RPM creating less noise & less wear
  • Increased duty cycle allows for longer continuous run times
  • Thermal overload protector for maximum protection
  • 20 Gallon Steel Air Tank w/ Wheel Kit
  • Easy to move around the jobsite, shop or garage
  • Time to fill tank from empty to full - 450 Seconds
  • Convenient Condor Pressure Switch
  • Low amp draw at only 12 amps
  • Easy start valve for less starting amperage
  • User Friendly Easy-To-See & Read Control Panel
  • Two large pressure control gauges
  • Two universal 1/4″ industrial female quick connectors
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-20015HPAD
specs product image PID-81916
General Information
Product Category
Air Compressor - Portable
Engine
HP
1.5
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
12
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
3.8
CFM Rated @
90 PSI
CFM @ 40 PSI
4
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
20 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Assembly Required
No
Weight
113 Pounds
Consumer Warranty
1 Year
Product Length
19.3 Inches
Product Width
19.5 Inches
Product Height
46.7 Inches
Power Type
Electric
UPC
743369720096
