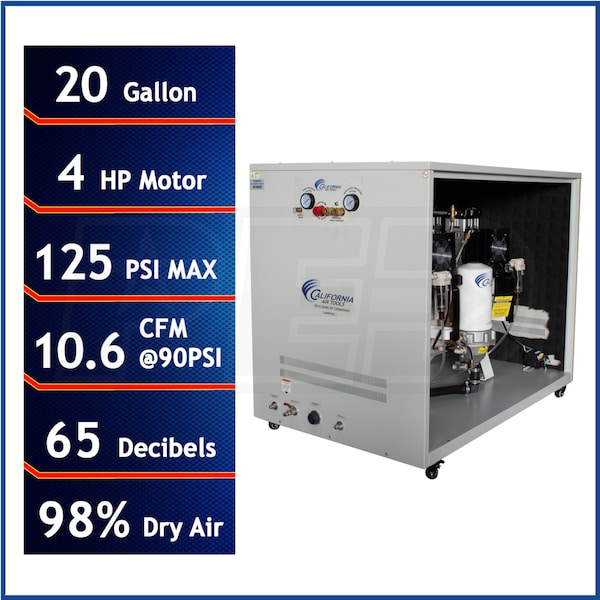

California Air Tools SP Ultra Quiet & Oil Free 4-HP 20-Gallon Steel Tank Air Compressor w/ Dryer, Auto Drain & Sound Proof Cabinet (220V 1-Phase)

Model:

CAT-20040DSPCADC

Write A Review
$5,441.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

California Air Tools SP Ultra Quiet & Oil Free 4-HP 20-Gallon Steel Tank Air Compressor w/ Dryer, Auto Drain & Sound Proof Cabinet (220V 1-Phase)
California Air Tools SP Ultra Quiet & Oil Free 4-HP 20-Gallon Steel Tank Air Compressor w/ Dryer, Auto Drain & Sound Proof Cabinet (220V 1-Phase)
Model: CAT-20040DSPCADC
$5,441.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Vertical

CFM

10.60

Tank Size

20

  • Ultra-Quiet SP Series Air Compressor
  • 1/4" air outlet with a quick connector for fast hose changes
  • 65 dBA is ideal for indoor use where noise is an issue
  • Delivers power, 98% dry air, air flow and less service with at least 30% less noise
  • Two Powerful 2.0-HP (Rated/Running) Motors
  • 1680 RPM creating less noise and less wear
  • Time to fill tank from empty to full - 150 Seconds
  • Recovery time from 100 PSI to 130 PSI - 40 Seconds
  • Oil-Free Dual Piston Pump System
  • Works in a variety of temperatures & uneven terrains
  • 3000+ hour life cycle before wear; comparable units are 1500 hours or less
  • "NEW" Air Dryer Cartridge System - Up to 98% Dry Air
  • Remove up to 98% of the water vapor from the air
  • Aftercooler cools the air to reduce moisture in system & tools
  • "Spin-On" air dryer cartridge has a life of 2-years before replacement
  • Now Includes (2) 0.01 Micron Prefilters
  • Helps satisfy ISO CLEAN ROOM standards
  • Easy Start Valve
  • Uses less starting amps while starting
  • Releases a small amount of air from pump at start up to produce a no-load condition and allow the motor to spin freely

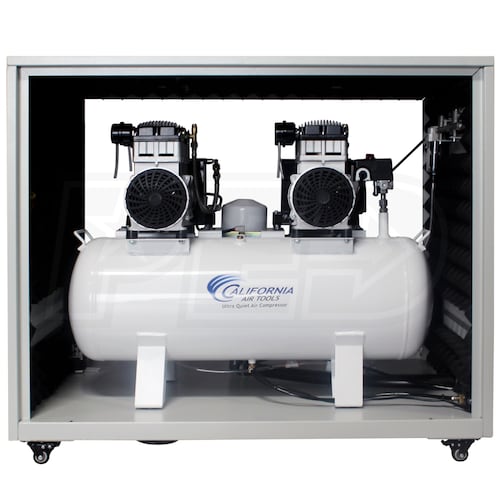

  • 20-Gallon Steel Air Tank w/ Sound Proof Cabinet
  • Two latching doors and 4 swivel caster wheels allows for easy portability

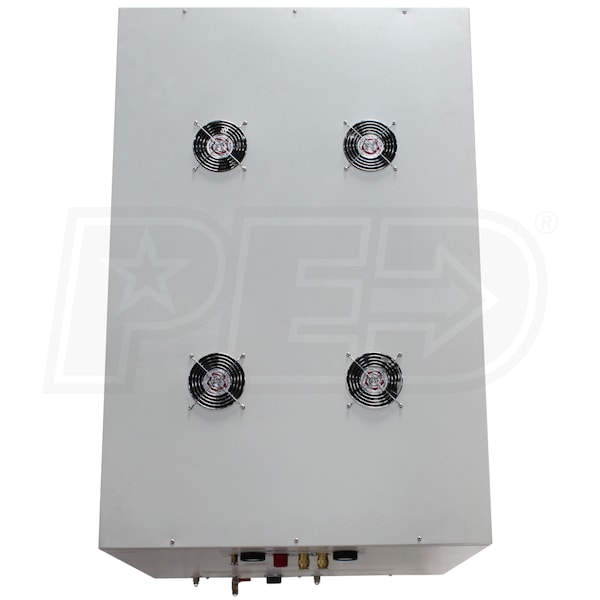

  • Top exhaust fans remove air to reduce heat and provide cooler working conditions

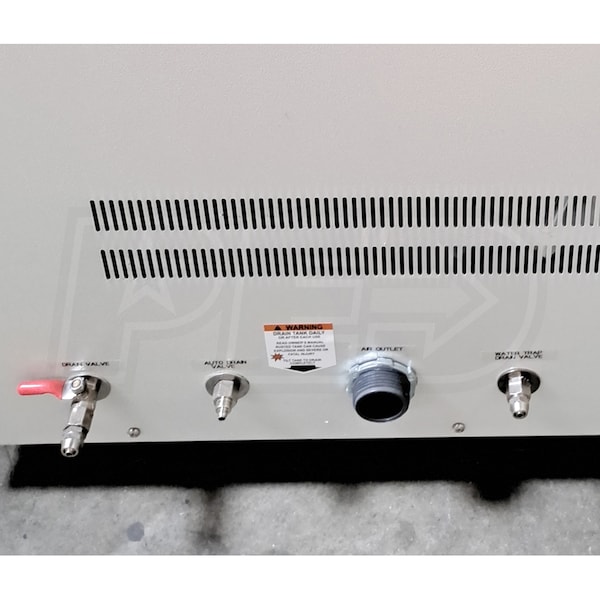

  • Manually set auto drain timer for the frequency and duration of the draining process
  • Thermal Overload Protector
  • Protects the motor from overheating

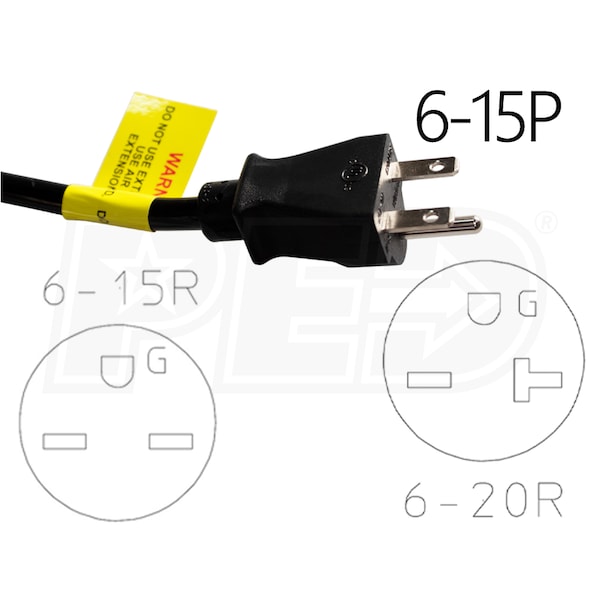

  • Low 14 amp draw works on NEMA 6-15P outlets
  • Top Mounted Controls & Pressure Condor Switch
  • Dual gauges let you check tank and tool pressure easily
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-20040DSPCADC
specs product image PID-106616
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
4
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
10.60
CFM Rated @
90 PSI
CFM @ 40 PSI
12.80
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
130 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Oil System
Splash Lubricated
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Filter
Regulator
Yes
General Purpose
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
375 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
46 Inches
Product Height
39 Inches
Power Type
Electric
UPC
850004451359
