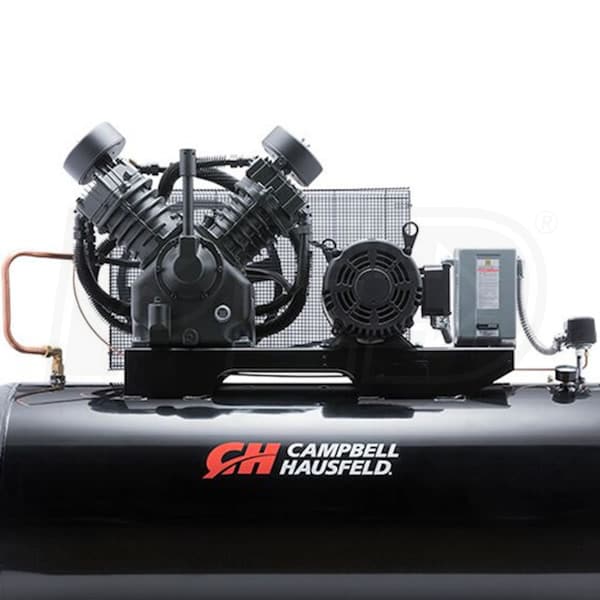

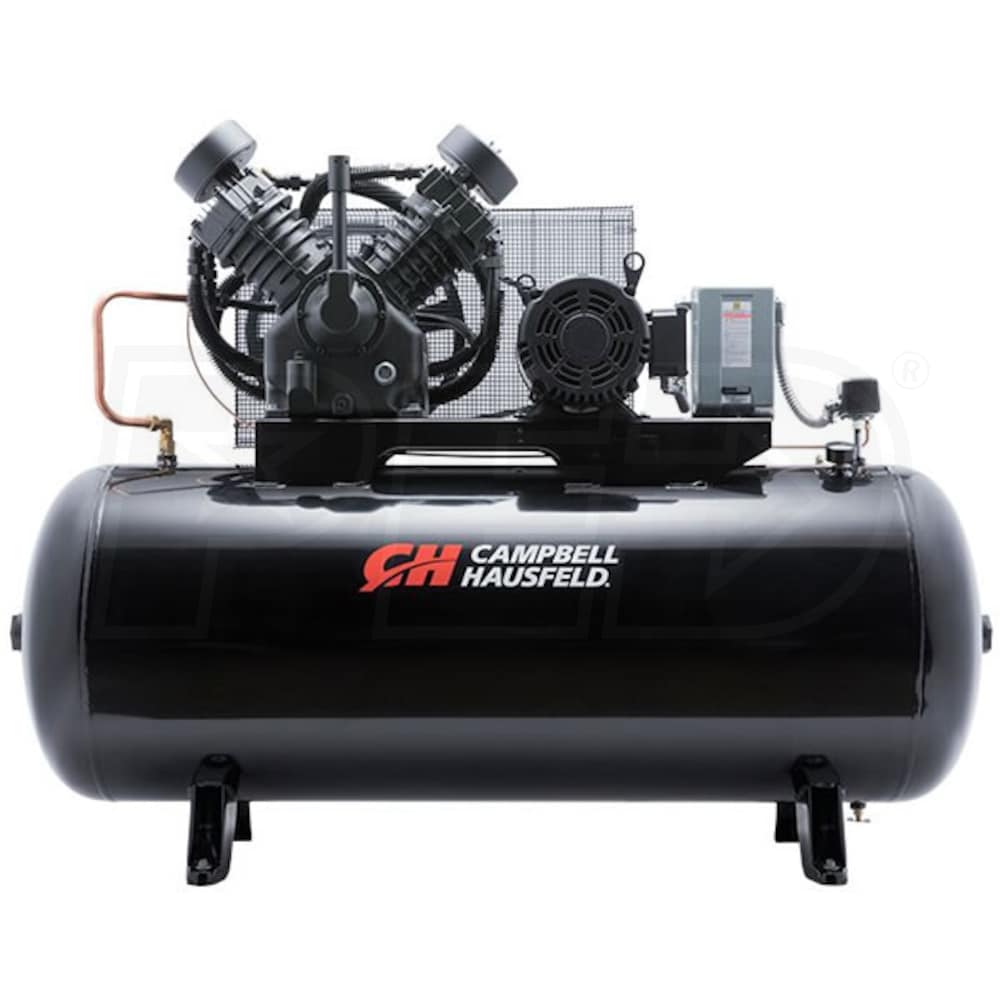

Campbell Hausfeld 10-HP 120-Gallon Two Stage Air Compressor (230V 3-Phase) w/ Starter
Model:
CE8001
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
3-Phase
CFM
34.1
Tank Size
120
- Rugged Cast Iron Oil Lubricated Two Stage Pump
- Made for heavy duty commercial & industrial applications
- Delivers Up To 15,000+ Hours Of Pump Life
- Based on B-10 bearing rating
- Durable stainless steel valves & ductile iron crankshaft
- Reliable precision balanced flywheel & low pump RPM
- 10 Horsepower Tri-Voltage NEMA Motor
- Totally enclosed metal belt guard
- Pre-installed and wired starter
- Viton High Temperature O-Rings
- Superior high pressure sealing compared to paper-type gaskets
- Advanced design for leak-proof sealing
- 120 Gallon ASME Code Tank
- Certified to 200 PSI maximum pressure for safe operation
- Limited Manufacturer Warranty
- 1-yr on compressor and 3-yr on pump & air receiver
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
CE8001
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
34.1
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
835 Pounds
Certification
UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
29.5 Inches
Product Width
78 Inches
Product Height
56 Inches
Power Type
Electric
UPC
045564627201
Additional Model Numbers
CE8001-230, CE8001
