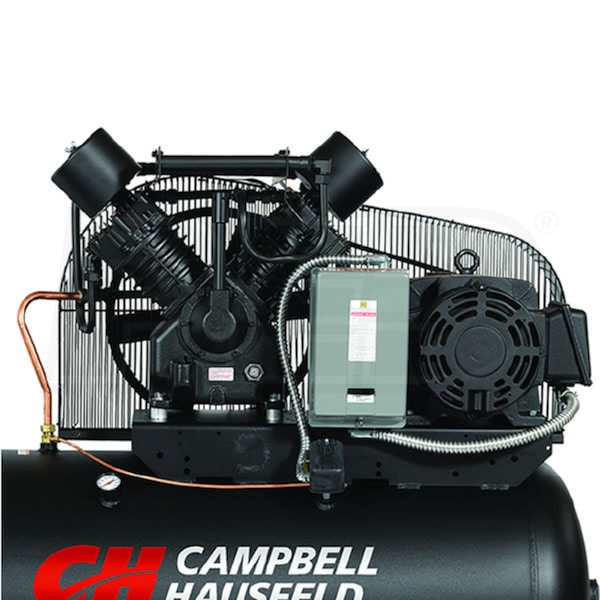

Campbell Hausfeld Commercial 15-HP 120-Gallon Two Stage Air Compressor (460V 3-Phase) Fully Packaged

Model:

CE8003FP-460

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Campbell Hausfeld Commercial 15-HP 120-Gallon Two Stage Air Compressor (460V 3-Phase) Fully Packaged
Campbell Hausfeld Commercial 15-HP 120-Gallon Two Stage Air Compressor (460V 3-Phase) Fully Packaged
Model: CE8003FP-460
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

50

Tank Size

120

  • Fully Packaged 2 Stage Compressor
  • Ideal choice for tire & lube shops
  • Rugged Cast Iron Oil Lubricated Two Stage Pump
  • Made for heavy duty commercial & industrial applications
  • Delivers Up To 15,000+ Hours Of Pump Life
  • Based on B-10 bearing rating
  • Durable stainless steel valves & ductile iron crankshaft
  • Reliable prescision balanced flywheel & low pump RPM
  • 15 Horsepower NEMA Motor
  • Totally enclosed metal belt guard
  • Pre-installed and wired starter
  • 120 Gallon ASME Code Tank With Vibration Isolation Pads
  • Certified to 200 PSI maximum pressure for safe operation
  • Belt Guard Mounted Aftercooler
  • Removes moisture from the air stream improving air quality
  • Easy Maintenance
  • Automatic tank drain so there's no need to manually drain tank
  • Digital hour meter to monitor maintenance intervals
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CE8003FP-460
specs product image PID-70885
Engine
HP
15
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Overview
Weight
930 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
29.5 Inches
Product Width
78 Inches
Product Height
56 Inches
Power Type
Electric
UPC
045564628864
