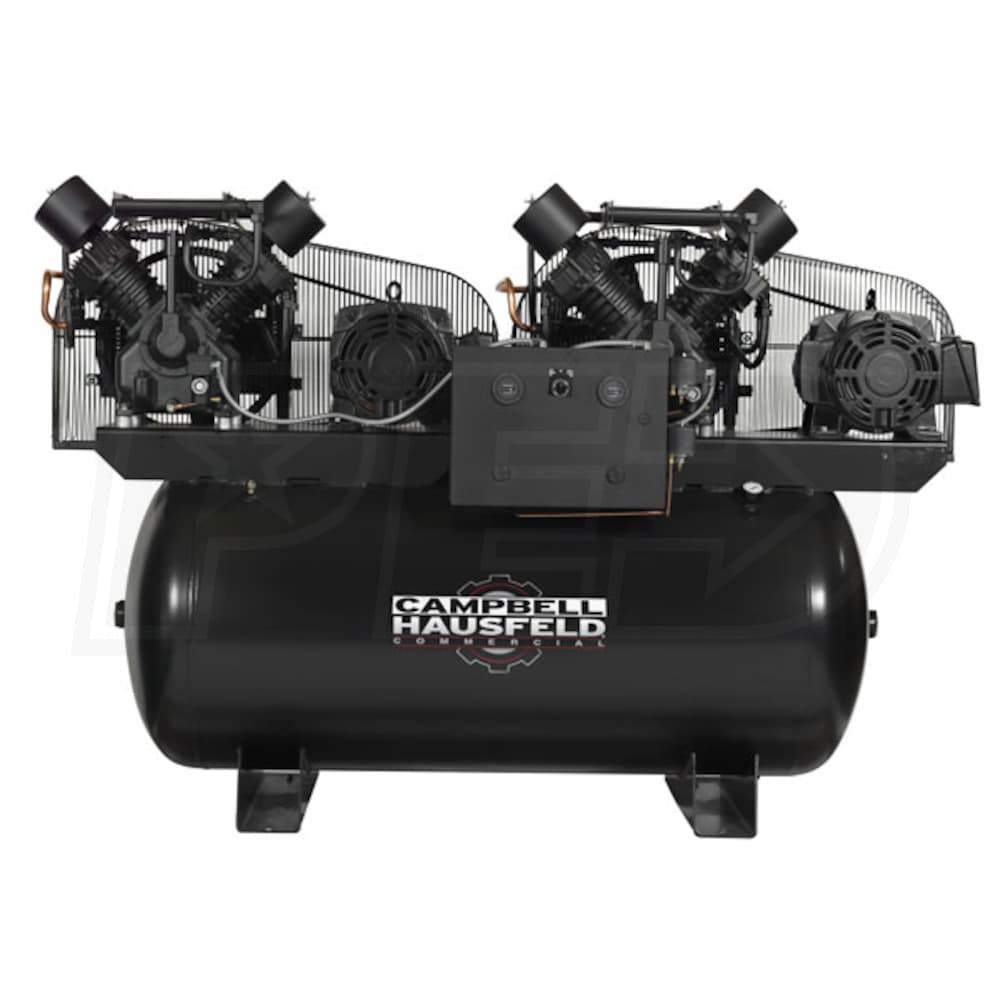

Campbell Hausfeld Commercial 20-HP 200-Gallon Two Stage Duplex Air Compressor (208/230/460V 3-Phase)
Model:
CE8201FP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230/460 Volt AC
Phase
3-Phase
CFM
72
Tank Size
200
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Two 10 HP Motors And Pumps On A Single Air Tank
- Duplex setup provides built-in backup
- Each side can run independantly or together, depending on load
- Deluxe UL Listed Control Panel
- Provides single connection point
- Alternator Control
- Provides even run time of compressor pumps and motors
- Multi-Voltage Industrial Duty NEMA Motors
- 3 phase motors can be wired for 208V, 230V or 460V
- Cast Iron Two Stage Compressor Pumps
- Durable and reliable
- 120 Gallon Air Tank
- Automatic drain keeps condensation from building up
- ASME Code rated for safety
- Belt Guard Mounted Aftercooler
- Pumps run cooler, last longer
- Belt enclosure protects the belt & the operator
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
CE8201FP
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
72
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage - Dual Pump
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
200 Gallons
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Overview
Weight
1620 Pounds
Certification
ASME
Consumer Warranty
3 Years
Product Length
98 Inches
Product Width
38 Inches
Product Height
67 Inches
Power Type
Electric
UPC
045564633370
