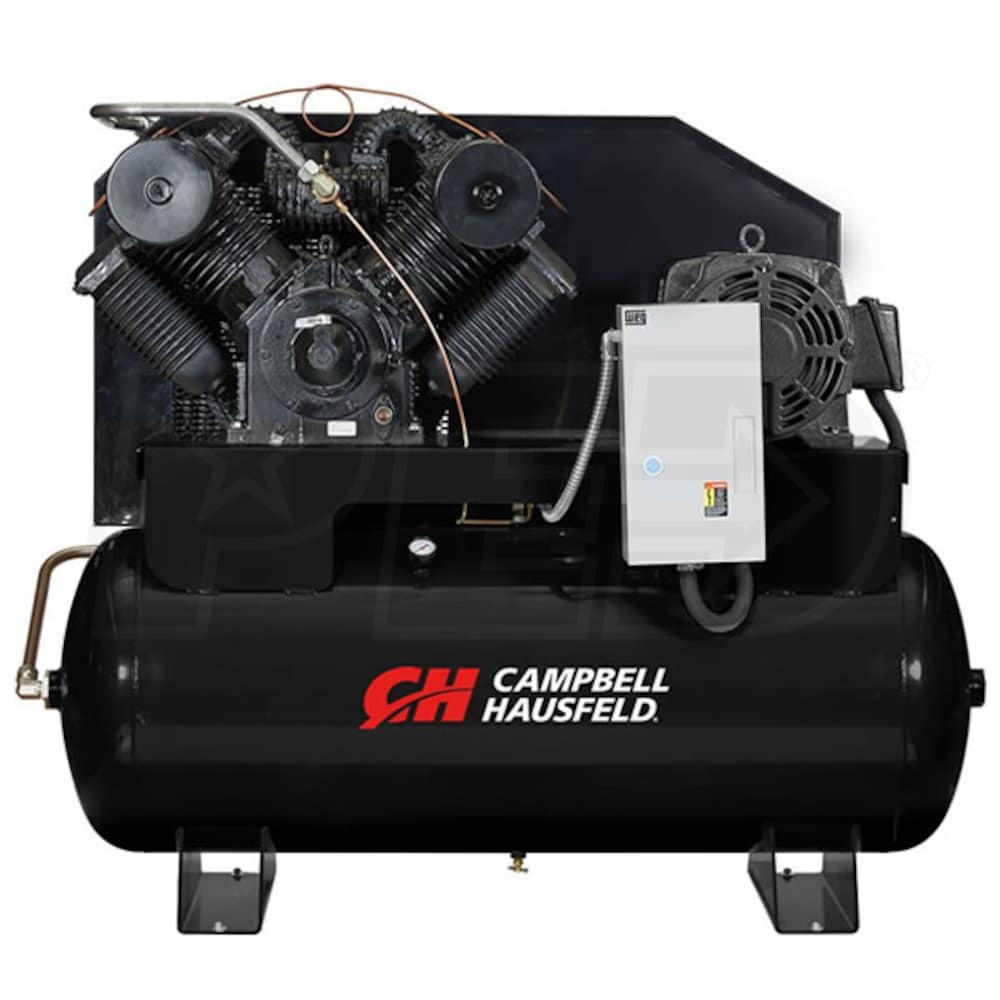

Campbell Hausfeld Commercial  25-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) w/ Starter
Campbell Hausfeld Commercial 25-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) w/ Starter
Model: CE9004
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

103

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

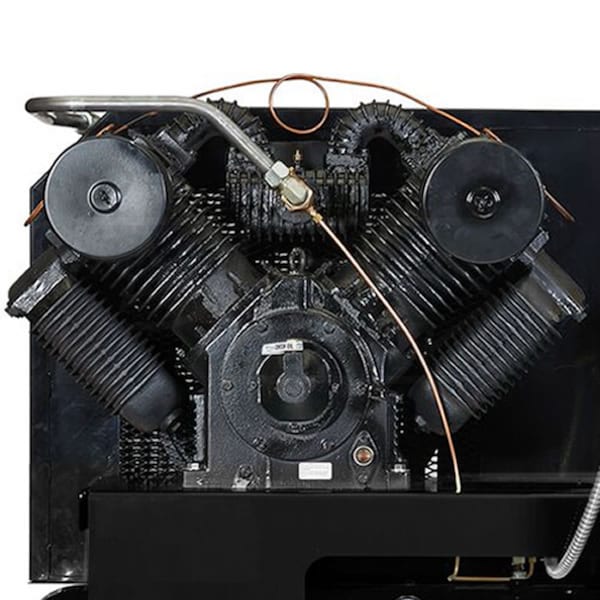

  • Two-Stage Cast Iron TW Pump
  • Delivers 103 CFM at 175 PSI; 175 PSI maximum
  • 120 Gallon, ASME Code Tank
  • Manual tank drain simplifies regular maintenance
  • 1" female NPT tank outlet suits many applications
  • Mounted & Wired Motor Starter
  • Allows for quick electrical hookup; UL/CSA listed
  • 3-phase motor wired for 208-230V; 460V conversion kit included
  • Industrial Duty NEMA Motor
  • Delivers reliable performance for professional applications
  • Fully Enclosed Metal Belt Guard
  • Protects the operator and the belt
  • Pressure Switch
  • For automatic stop/start operation
  • Pressure Gauge
  • Check tank pressure at a glance
  • 3 Year Factory Warranty
  • Protects your investment
  • Too heavy for liftgate service, must be delivered to a loading dock
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CE9004
specs product image PID-70233
Engine
HP
25
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
66.1 - 59.8 / 29.9
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
103
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Overview
Weight
1900 Pounds
Certification
UL, CSA
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
96 Inches
Product Width
41 Inches
Product Height
71 Inches
Power Type
Electric
UPC
45564641597
