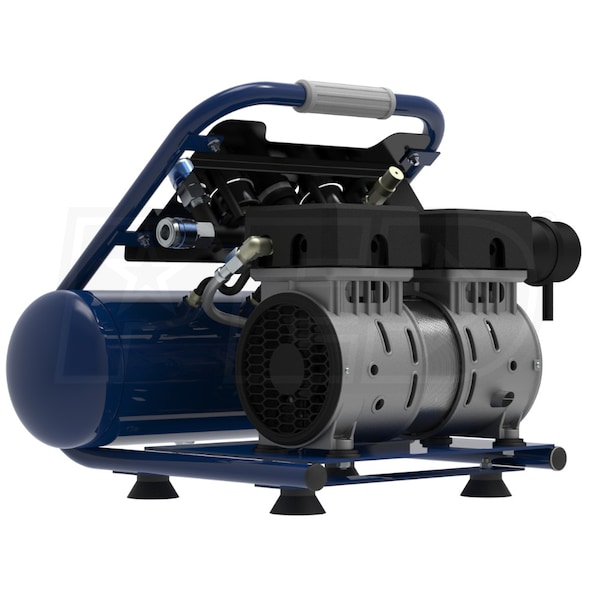

Campbell Hausfeld Quiet 2-HP 2-Gallon Oil-Free Hot Dog Air Compressor

Model:

DC020500

Write A Review
$249.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Campbell Hausfeld Quiet 2-HP 2-Gallon Oil-Free Hot Dog Air Compressor
Campbell Hausfeld Quiet 2-HP 2-Gallon Oil-Free Hot Dog Air Compressor
Model: DC020500
$249.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Hot Dog

CFM

2.2

Tank Size

2

  • Campbell Hausfeld Quiet Oil-Free Compressor
  • Up to 90% quieter than most other compressors
  • Designed to be one of the quietest air compressors in the industry at 65 dBA
  • Reliable 1-HP Motor
  • Low 1750 RPM reduces wear and tear
  • Draws only 7.5 amps, works on most household 115V outlets
  • Oil-Free Double Piston Pump System
  • Oil-free system requires no pump maintenance
  • Produces 2.2 CFM at 90 PSI and 3.2 CFM at 40 PSI
  • Top-Mounted Control Panel
  • Dual gauges to monitor tool & tank pressure at a glance
  • Single 1/4" air hose quick connector simplifies tool use
  • Oversized regulator knob is easy to use, even wearing work gloves
  • 2-Gallon Hot Dog Style Tank
  • Easy to carry, transport & store; 125 PSI maximum pressure
  • Lever-Type Tank Drain Valve
  • Simplifies maintenance; extends air tank life
  • Roll Cage Design With Anti-Vibration Feet
  • Protects the pump; rubber handle is easy on your hands
  • Helps keep the compressor steady and reduces vibration
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

DC020500
specs product image PID-153854
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7.5
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.2
CFM Rated @
90 PSI
CFM @ 40 PSI
3.2
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
50%
Tank
Tank Size
2 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
38 Pounds
Consumer Warranty
1 Year
Product Length
22.6 Inches
Product Width
22.7 Inches
Product Height
18.3 Inches
Power Type
Electric
UPC
846212091166
