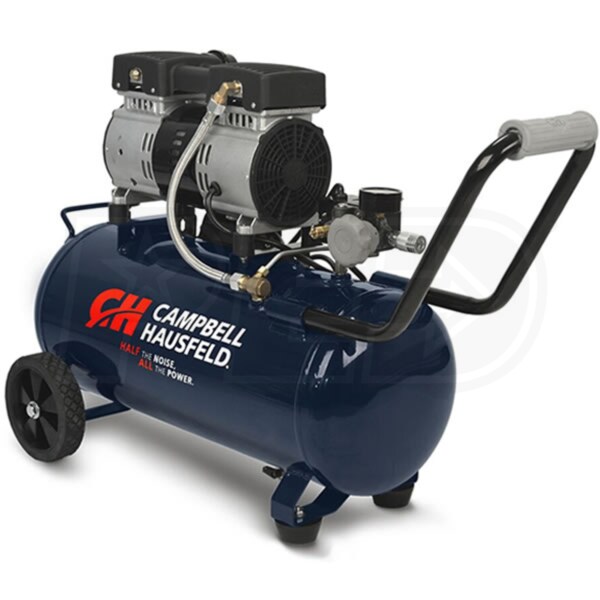

Campbell Hausfeld Quiet 1-HP 8-Gallon Portable Air Compressor

Model:

DC080500

Recommended
Write A Review
$279.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601

Campbell Hausfeld Quiet 1-HP 8-Gallon Portable Air Compressor
Campbell Hausfeld Quiet 1-HP 8-Gallon Portable Air Compressor
Model: DC080500
$279.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

2.4

Tank Size

8



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Half The Noise, All The Power
  • 68 dBA is up to 50% quieter than conventional 1-HP compressors; about as loud as a normal conversation
  • Delivers 2.4 CFM at 90 PSI, 3.5 CFM at 40 PSI; ideal for tire inflation, hobby air brushing, finish nailing & stapling
  • Oil-Free Pump & Induction Motor
  • Dual piston-pump system provides superior motor performance with no pump maintenance
  • Key components last up to 4 times longer
  • 8 Gallon Air Tank
  • Produces up to 25% more air compared to other 1-HP units
  • Rated up to 125 PSI; comfort-grip handle for easy transport & storage
  • Top-View Controls
  • Dual gauges let you monitor tank and tool pressure at a glance
  • 1/4-inch air hose quick connect for speedy set up
  • 1 Year Factory Warranty For Consumer Use
  • Protects your investment; warranty is 90 days for commercial use
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

DC080500
specs product image PID-70238
General Information
Product Category
Air Compressor - Portable
Engine
HP
1
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.4
CFM Rated @
90 PSI
CFM @ 40 PSI
3.5
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
70 Pounds
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
26.8 Inches
Product Width
11.4 Inches
Product Height
23.6 Inches
Power Type
Electric
UPC
045564641948
