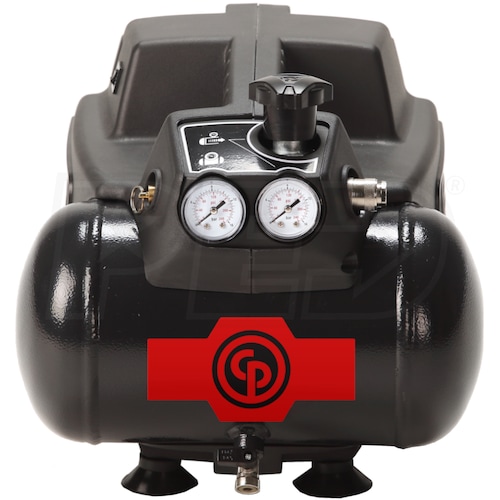

Chicago Pneumatic EASY AIR 1.5-HP 1.6-Gallon Oil-Less Hotdog Air Compressor
Model:
HCP-1116
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Hot Dog
CFM
2.0
Tank Size
1.6
- Chicago Pneumatic Easy Air Hand-Carry Air Compressor
- A powerful and compact compressor for small jobs
- Oil-Less Design
- No contaminated air, no oil spills and less maintenance
- 1.6-Gallon Tank
- Provides up to 115 PSI of working pressure
- Dual-Gauge
- Easy-to-read design for simple operation
- Pressure Knob
- Makes it easy to set the pressure you need for the task
- Quick-Connect Design
- Allows for faster set-up
- Easy-Access Drain Valve
- Helps reduce tank rust
- 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
HCP-1116
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Engine
HP
1.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.0
CFM Rated @
90 PSI
CFM @ 40 PSI
3.0
CFM @ 90 PSI
2.0
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
115 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Free
Tank
Tank Size
1.6 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
23.6 Pounds
Made in USA
No
Product Length
12.75 Inches
Product Width
12 Inches
Product Height
16 Inches
Power Type
Electric
UPC
791326103987
