Chicago Pneumatic 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase) Fully Packaged

Model:

RCP-583VQP

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Chicago Pneumatic 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase) Fully Packaged
Chicago Pneumatic 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase) Fully Packaged
Model: RCP-583VQP
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

3-Phase

CFM

18.5

Tank Size

80

  • 2 Stage Quiet Performance Air Compressor
  • Delivers 18.5 CFM at 100 PSI; suits many applications
  • 66 dBA noise level is safer for workers near by

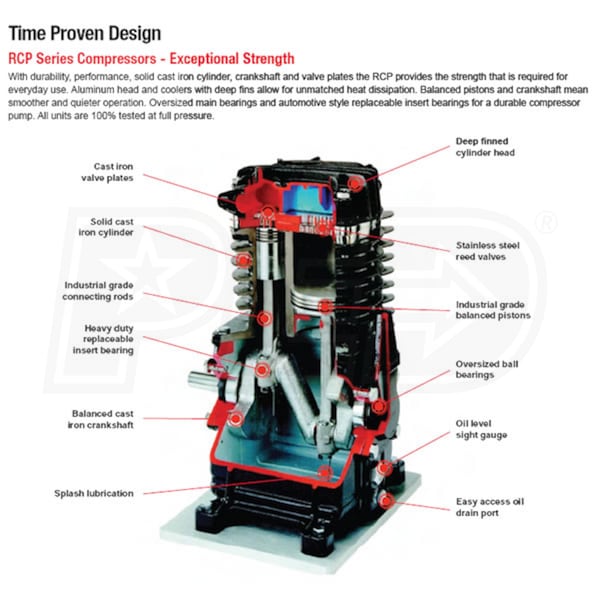

  • Solid Cast Iron Cylinder
  • Rugged components provide long-lasting dependability
  • All Units 100% Tested At Full Pressure
  • Provides strong & reliable performance
  • ASME /CRN Certified Tank
  • 80 gallon air reserve for big jobs or multiple users
  • High Temperature Shut Down
  • Protects the pump & motor
  • Low oil level protection for the pump
  • Automatic Tank Drain
  • Easy & efficient maintenance
  • 208 Volt Or 230 Volt Three-Phase Power
  • Easily wires into either your 208V-3 or 230V-3 system
  • Magnetic Starter Included
  • Reliable starting; no additional purchase necessary
  • 2 Year Factory Warranty
  • Supported by a network of trained service technicians
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RCP-583VQP
specs product image PID-11425
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Overview
Weight
513 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
38.2 Inches
Product Width
24.3 Inches
Product Height
80 Inches
Power Type
Electric
