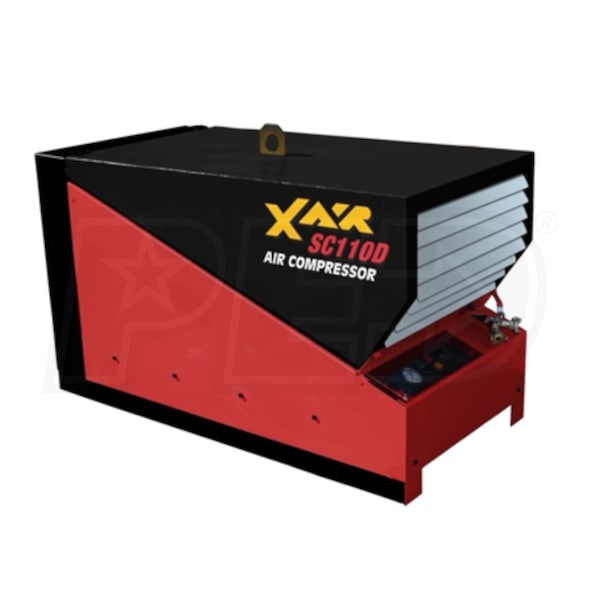

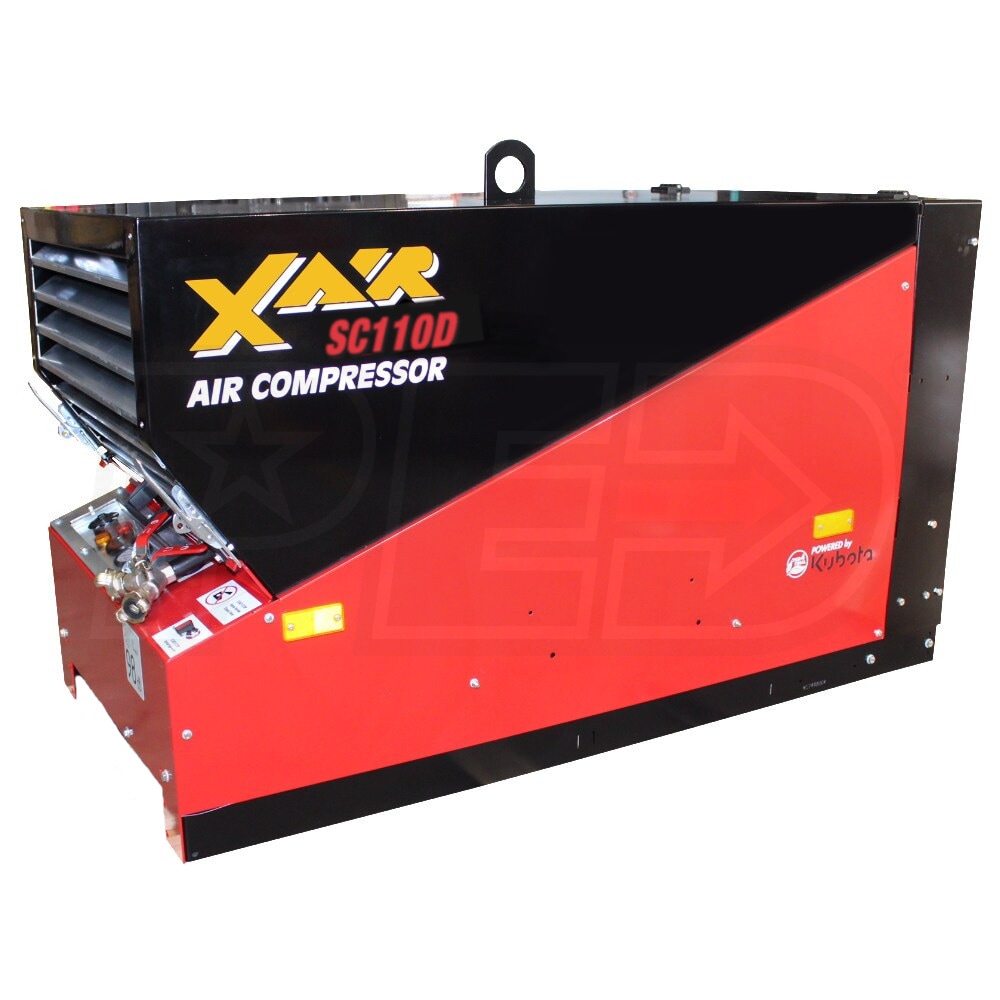

X Air by Con X Equipment SC110D 24.3-HP Skid Rotary Screw Air Compressor w/ Kubota Diesel Engine
Model:
SC110D
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Engine Brand
Kubota
CFM
110
Tank Size
0
- Small Investment, Big Return Compact Rotary Compressor
- X AIR compressors excel in reliability and energy efficiency
- Ideal for sandblasting, breakers, painting, chipping hammers, graffiti removal, nail guns, staple guns and much more...
- XAIR SC110 Skid Oil Injected Rotary Screw
- 74 dBA sound level @ 23 feet
- Extremely durable, efficient and high performance air end
- Airflow & pressure are constant and continuous, no need for an air tank
- 24.3HP 3-Cylinder Kubota Diesel Engine w/ Electric Start (Tier 4 Final)
- Easily runs two 60lb paving breakers
- 6.5-gallon transparent gas tank for a full day's operation
- Dependable commercial grade engine starts easily, runs quietly
- Automatic Full Safety Shutdown System
- Full safety shutdown on compressor and engine
- Pressure safety valve on separator, pressure & thermal switch on engine and thermal switch on air end
- Convenient Control Panel Gauges
- Includes two 3/4" FNPT air outlets
- Voltage gauge makes it easy for you to know status
- Front mounted temperature & oil gauge; 2-gal oil compressor capacity
- Compressor Cooling & Lubrication System
- Fan exhausts the heat to flow to the cooler
- Provide adequate lubrication and maintains proper operating temperature of the compressor
- Fluid & Oil Separator Systems
- Removes water vapor from compressed air for longer lifespan
- Oil particles are separated for clean air to protect air tools and equipment
- Durable Construction Space Saving Design
- Hinged hood with 2 gas springs w/ lifting hooks
- Rugged frame can withstand harsh environments and working conditions
Specifications
SC110D
General Information
Product Category
Air Compressor - Portable
Engine
HP
24.3
Auto Idle
Yes
Engine Brand
Kubota
Starting System
12-Volt Key Start
Battery Included
Yes
Engine Low Oil Shut-off
Yes
Fuel Tank Size
6.5
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
110
CFM Rated @
100 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
123 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Air Tools
NPT
3/4"
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
1058 Pounds
CARB Compliant
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
59.6 Inches
Product Width
30 Inches
Product Height
38.5 Inches
Power Type
Diesel
