Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
17.9
Tank Size
80
- 5 HP Electric Motor With Thermal Overload Protection
- T.O.P.S. protects the motor from voltage fluctuations
- Magnetic starter not required
- Patented Two Stage Cast Iron Industrial Duty Pump
- Provides 17.9 CFM at 100 PSI for big jobs & multiple users
- Patented Cast Iron Flywheel
- Large fins for low pump RPM, improved cooling, longer pump life
- Patented Asymmetrical, Deep Groove Cooling Fins
- Cooler pumps last longer & run more effectively
- Integrated Control Panel
- Tank & output pressure gauges are large & easy to see
- Easy access to pressure regulator & 2 quick-connect air outlets
- 2 Year Factory Pump Warranty
- 1 year Factory Warranty on all other parts
- 80 Gallon Air Tank
- ASME rated for safety; 175 PSI maximum pressure
- Shipped With Synthetic Blend Compressor Oil
- Easy to wire into your 230 volt, single phase system
- Pump Warranty Extension
- Purchase & use of maintenance kit doubles the pump warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMV5048055
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Product Category
Air Compressor - Stationary
Weight
470 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212008638
Reviews
(43)
DeWalt DXCMV5048055 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Melissa, the Air Compressor Expert
Other websites have the amperage listed for this compressor (DXCMV5048055.1) as 28A whereas your site lists it as 22A. Where is your 22A figure sourced from?
Nic
from Wisconsin
May 24, 2018
Does the compressor come on a pallet that it is bolted down on? If we buy the service kit does it extend the whole compressor warranty for 4 years or just the pump?
Joe
from New York
May 20, 2016
How-To Articles
How To Pick The Perfect Two-Stage Air Compressor
If you've ever worked in manufacturing or visited your local garage, you might ...
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make itsimple. W...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

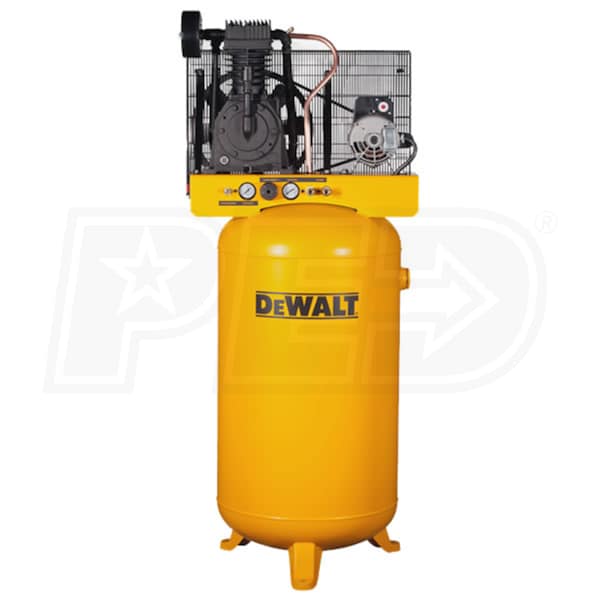

DeWalt 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
