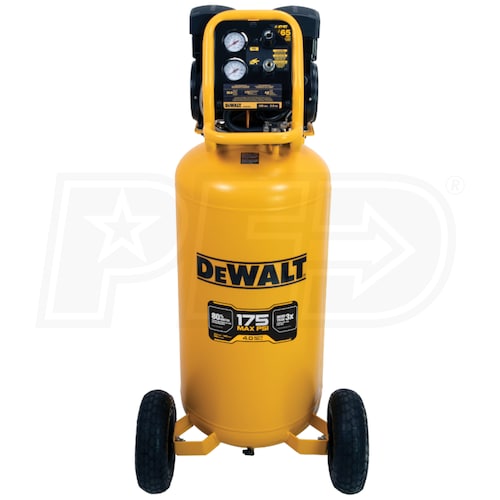

DeWalt 2-HP 26-Gallon Vertical Ultra Quiet Air Compressor (120V 1-Phase)

Model:

DXCMSAC260

Write A Review
$579.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from DeWalt
Shipping to60601

DeWalt 2-HP 26-Gallon Vertical Ultra Quiet Air Compressor (120V 1-Phase)
DeWalt 2-HP 26-Gallon Vertical Ultra Quiet Air Compressor (120V 1-Phase)
Model: DXCMSAC260
$579.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

4.0

Tank Size

26

  • Ultra Quiet Electric Portable Air Compressor
  • 65dBA is ideal for indoor use where noise is an issue
  • 80% quieter than similar oil-free induction products
  • Produces 4.0 CFM @ 90 PSI; Max 175 PSI
  • Engineered for high performance and durability
  • Perfect for larger projects, HVLP spray gun, blowguns, brad and nail guns
  • Direct Drive 2-HP Induction Motor
  • Designed for maximum performance and efficiency
  • Tackle airbrushing, drilling, sanding and bolting/wrenching
  • Oil-Free Single Stage Pump
  • Up to 4X the life of standard induction oil-free compressors
  • Provides cleaner air for tool operation and maintenance-free
  • Low Voltage, Easy Start
  • Works in a variety of temperatures
  • Auto on/off switch and safety valve included
  • 26-Gallon Steel Vertical Tank w/ 10" Pneumatic Tires
  • Compact design for easy portability to job sites
  • Great for uneven terrains and dampens vibration
  • Convenient Top Control Panel
  • Regulator and quick connect right at your finger tips
  • Dual gauges to monitor tool and tank pressure at a glance
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DXCMSAC260
specs product image PID-150565
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.0
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
26 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
130.7 Pounds
Consumer Warranty
1 Year
Product Length
18.5 Inches
Product Width
17.5 Inches
Product Height
51.2 Inches
Power Type
Electric
UPC
846212095607
