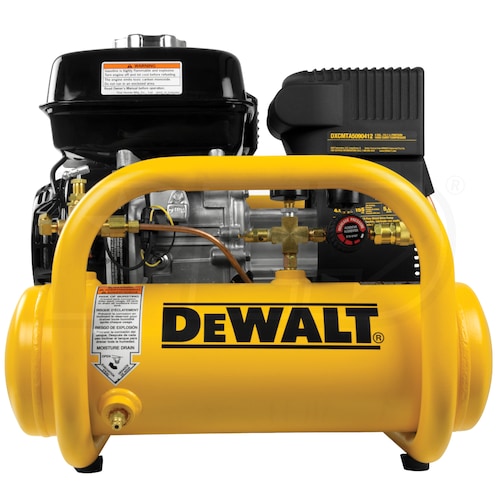

DeWalt 163cc 4-Gallon Twin Stack Gas Air Compressor w/ Honda GX Engine

Model:

DXCMTA5590412

Write A Review
$1,239.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from DeWalt
Shipping to60601

DeWalt 163cc 4-Gallon Twin Stack Gas Air Compressor w/ Honda GX Engine
DeWalt 163cc 4-Gallon Twin Stack Gas Air Compressor w/ Honda GX Engine
Model: DXCMTA5590412
$1,239.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Twin Stack

Engine Brand

Kohler

CFM

5.0

Tank Size

4

  • Honda GX160 OHV Commercial Grade Gas Engine
  • Powerful, reliable and easy to start
  • Low-oil alert provides added protection
  • Patented Pump Design
  • Increased cooling extends pump life
  • Oil free, direct drive for low maintenance operation
  • 155 PSI Maximum Pressure
  • 6.9 CFM at 40 PSI; 5 CFM at 90 PSI powers many tools
  • Pontoon-Style Tank Design
  • (2) 2-gallon tanks provide job-site stability
  • Central Controls
  • Easy access to regulator (1/4"), tool & tank gauges, & quick connect
  • Sturdy Frame
  • Provides added protection and easy portability
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DXCMTA5590412
specs product image PID-151198
Engine
CC
163
Auto Idle
No
Engine Brand
Kohler
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Fuel Tank Size
.825
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.0
CFM Rated @
90 PSI
CFM @ 40 PSI
6.9
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Overview
Weight
93 Pounds
CARB Compliant
Yes
Certification
CARB
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
21.75 Inches
Product Width
24.25 Inches
Product Height
20.5 Inches
Power Type
Gas
UPC
846212078174
