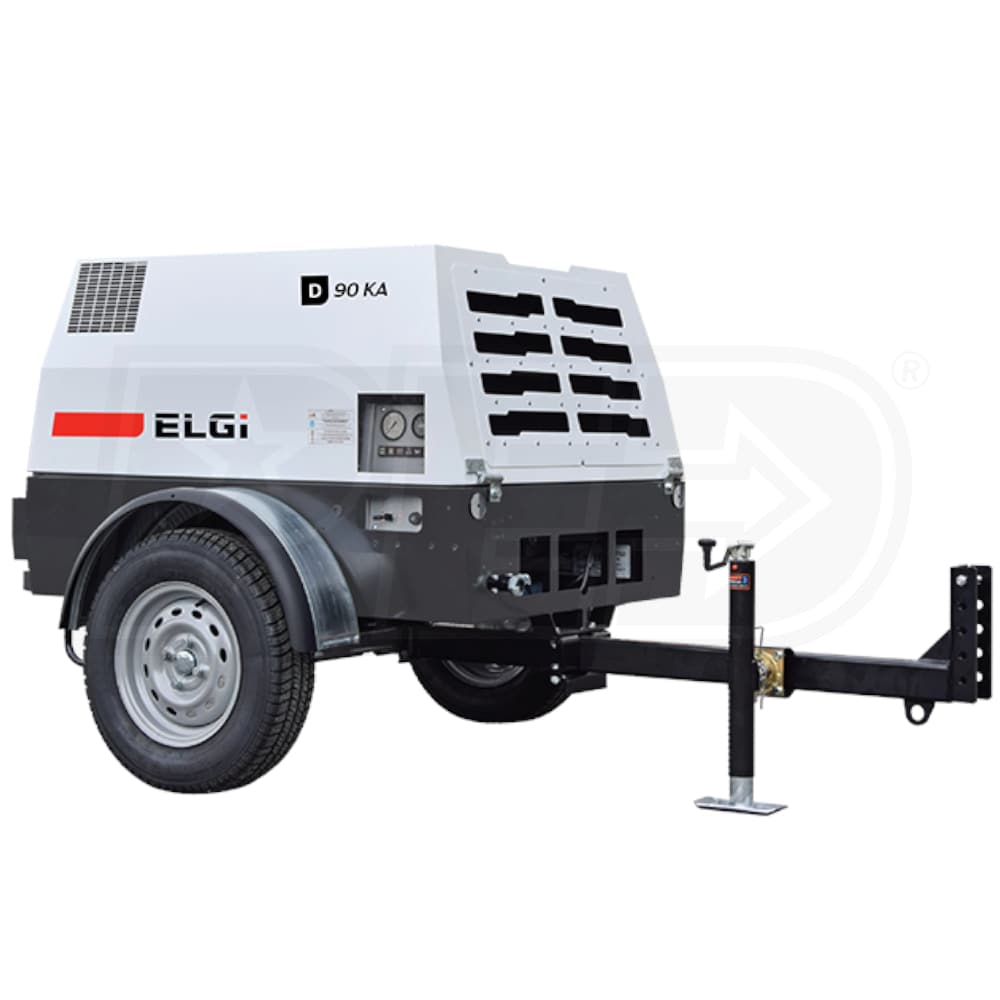

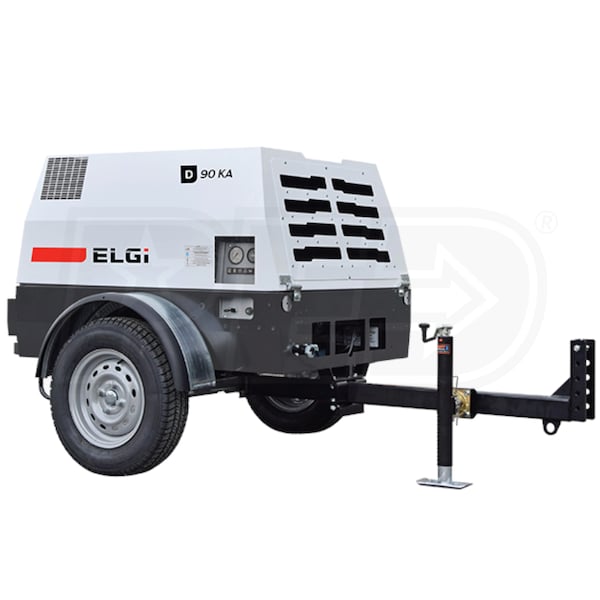

ELGi D90KA - 25-HP Trailer Mounted Diesel Rotary Screw Air Compressor (90 CFM)

Model:

D90KA

Write A Review
$17,349.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks

ELGi D90KA -  25-HP Trailer Mounted Diesel Rotary Screw Air Compressor (90 CFM)
ELGi D90KA - 25-HP Trailer Mounted Diesel Rotary Screw Air Compressor (90 CFM)
Model: D90KA
$17,349.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Grade

Commercial

Engine Brand

Kubota

CFM

90

Tank Size

0

  • NOTE - Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • ELGi D90KA Trailer Mounted Diesel Rotary Screw Air Compressor
  • A compact workhorse, ideal for a wide range of applications
  • 1123cc Kubota D1104-E4B Diesel Engine (Tier 4 Final)
  • Naturally aspirated, water-cooled design w/ Electric Start (Battery Included)
  • One of the most reliable diesel engines for the construction market
  • Automatic Glow Plug System
  • Makes cold start an easy task
  • 7.9-Gallon Fuel Tank
  • Provides up to 7.5-hours of runtime on a single tank of fuel
  • ELGi Belt Drive, Twin Screw Rotary Air End
  • Produce 90 CFM @ 100 PSI (Max)
  • Minimum working pressure 73 PSI
  • (2) 3/4" Air Outlets
  • Compatible with most air tools on the market
  • Minimum Pressure Check Valve On Air Outputs
  • Prevents back-feeding of solids or liquids
  • User-Friendly Controls
  • Makes this air compressor very easy to operate and monitor
  • Spin-On Compressor Oil Filters
  • Helps extend the life of the air end
  • Standard Toolbox
  • Provides onboard storage for tools and accessories
  • Fully-Enclosed, Open-Canopy Design
  • Metal enclosure provides added protection to your compressor
  • Allows for easier access to service parts
  • Single-Axle Trailer
  • Only 1215 lbs.; Can be easily towed by most trucks/vans
  • 5-Year/ Unlimited Hour ELGi Air End Warranty
  • 2-Year / 4000-Hour Kubota Engine Warranty
  • 1-Year / 2,000-Hour Full Machine Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

D90KA
specs product image PID-143452
Engine
HP
25
Auto Idle
Yes
Engine Brand
Kubota
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Fuel Tank Size
7.9
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
90
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
100 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Air Tools
NPT
3/4"
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Portable
Weight
1520 Pounds
CARB Compliant
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
112 Inches
Product Width
56 Inches
Product Height
49 Inches
Power Type
Diesel
