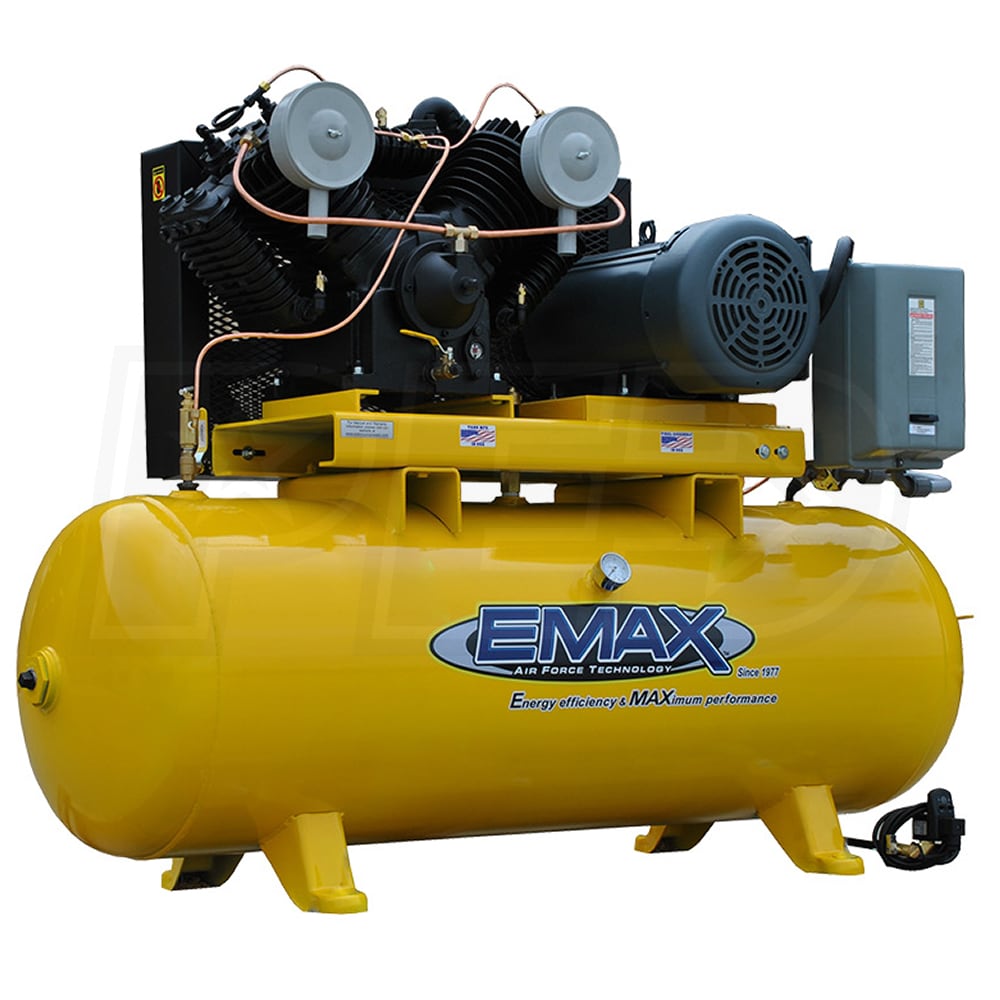

EMAX Industrial Plus 10-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model:
EP10H080V3-460
+
Share This Product
Recommended Accessories
![Air Compressors Direct expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-1.png?v=1)
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
38
Tank Size
80
- Piston Series V-4 2-Stage 800 RPM Cast Iron Pump
- Dual control design allows for automatic or continuous run
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Ram-Tek - Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Flow-Tek - Concentric Disc Valves
- Delivers maximum performance & longevity
- Cool-Tek - The Coolest Running Compressors In The Industry
- Air Stream Technology provides 35% lower operating temperature
- Reduces moisture build up & extends pump life
- Built-In Inter-Cooler & After-Coolers
- Allows air to be cooled between stages
- Second cooling stage cools the air before it goes into the tank
- 10-HP Industrial Grade Motor
- Low 1750 RPM design extends useful life
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Magnetic Starter
- Gives you longer life on your controls
- Limited to defect in materials & workmanship
- Prevents overloads and gives you trouble-free operation
- Auto Tank Drain
- 110V dual timer controlled, eliminates daily maintenance
- Gate Valve Oil Drain
- Provides quick, clean oil changes
- 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EP10H080V3-460
![specs product image PID-104881](/products-image/150/ep10h080v1_104878_1000.png)
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
12
Recommended Breaker
20 Amp Breaker
Engine
HP
10
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
918 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
30 Inches
Product Width
76 Inches
Product Height
56 Inches
Power Type
Electric
UPC
815002013619
