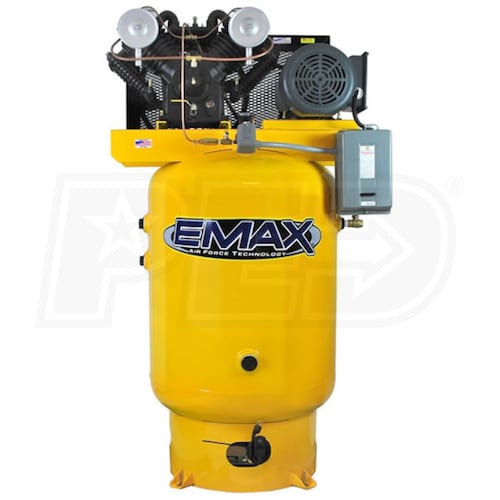

EMAX Industrial Plus 10-HP 120-Gallon V-4 Two-Stage Air Compressor (230V 1-Phase)

Model:

EP10V120V1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
EMAX Industrial Plus 10-HP 120-Gallon V-4 Two-Stage Air Compressor (230V 1-Phase)
EMAX Industrial Plus 10-HP 120-Gallon V-4 Two-Stage Air Compressor (230V 1-Phase)
Model: EP10V120V1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

34

Tank Size

120

  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Piston Series V-4 2-Stage 800 RPM Cast Iron Pump

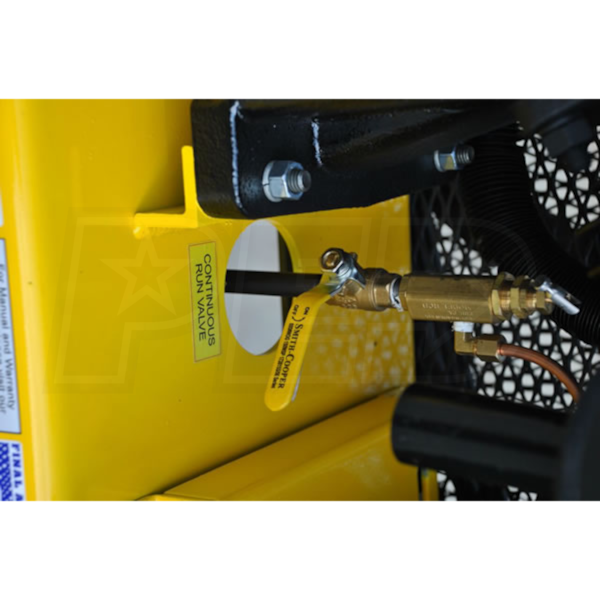

  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum performance & longevity
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • 10-HP Grade Industrial Motor
  • Low 1750 RPM design extends useful life

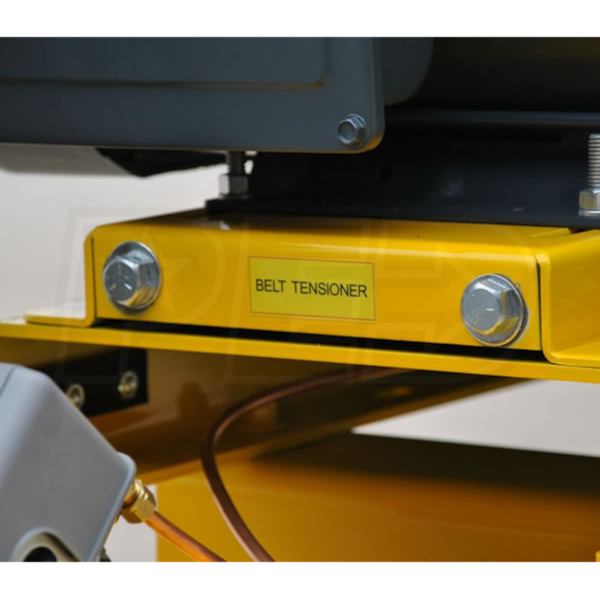

  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Auto Tank Drain
  • 110V dual timer controlled, eliminates daily maintenance

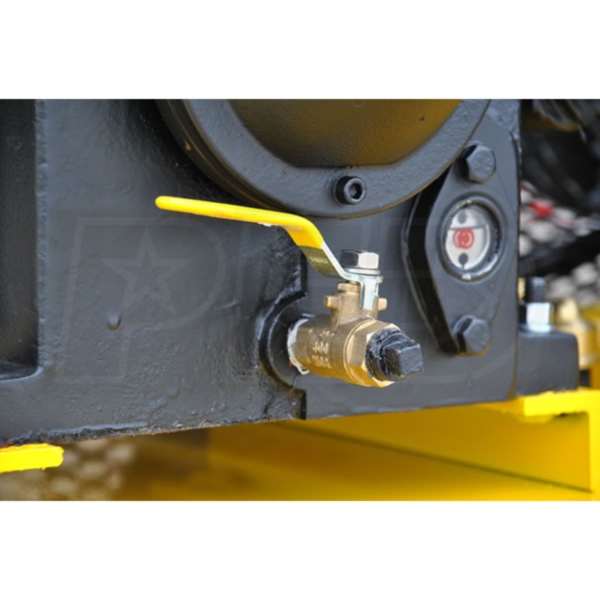

  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP10V120V1
specs product image PID-14409
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
34
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1000 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Product Length
51 Inches
Product Width
51 Inches
Product Height
90 Inches
Power Type
Electric
UPC
815002012506
