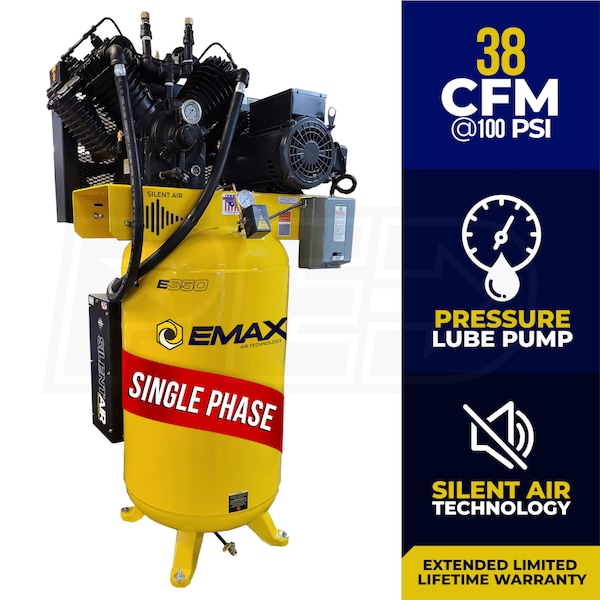

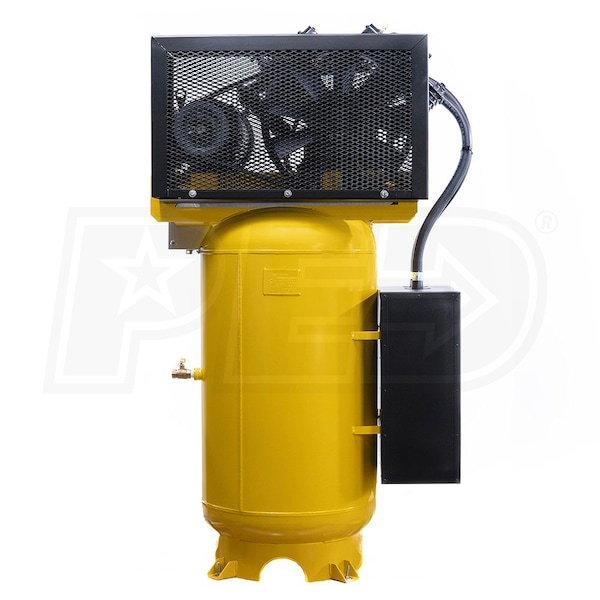

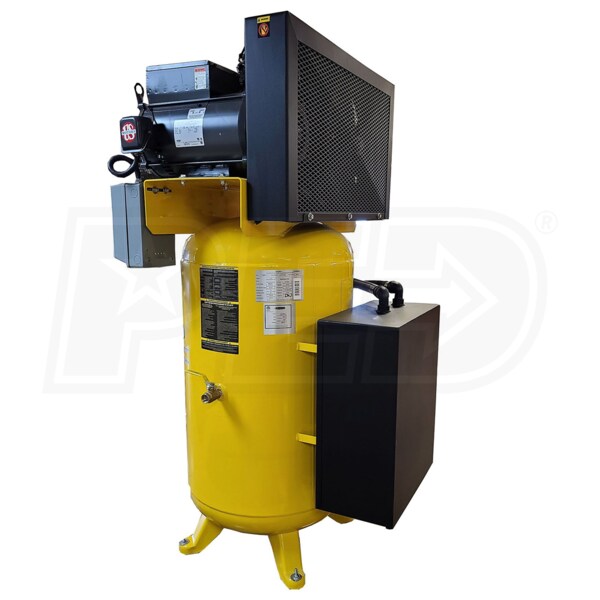

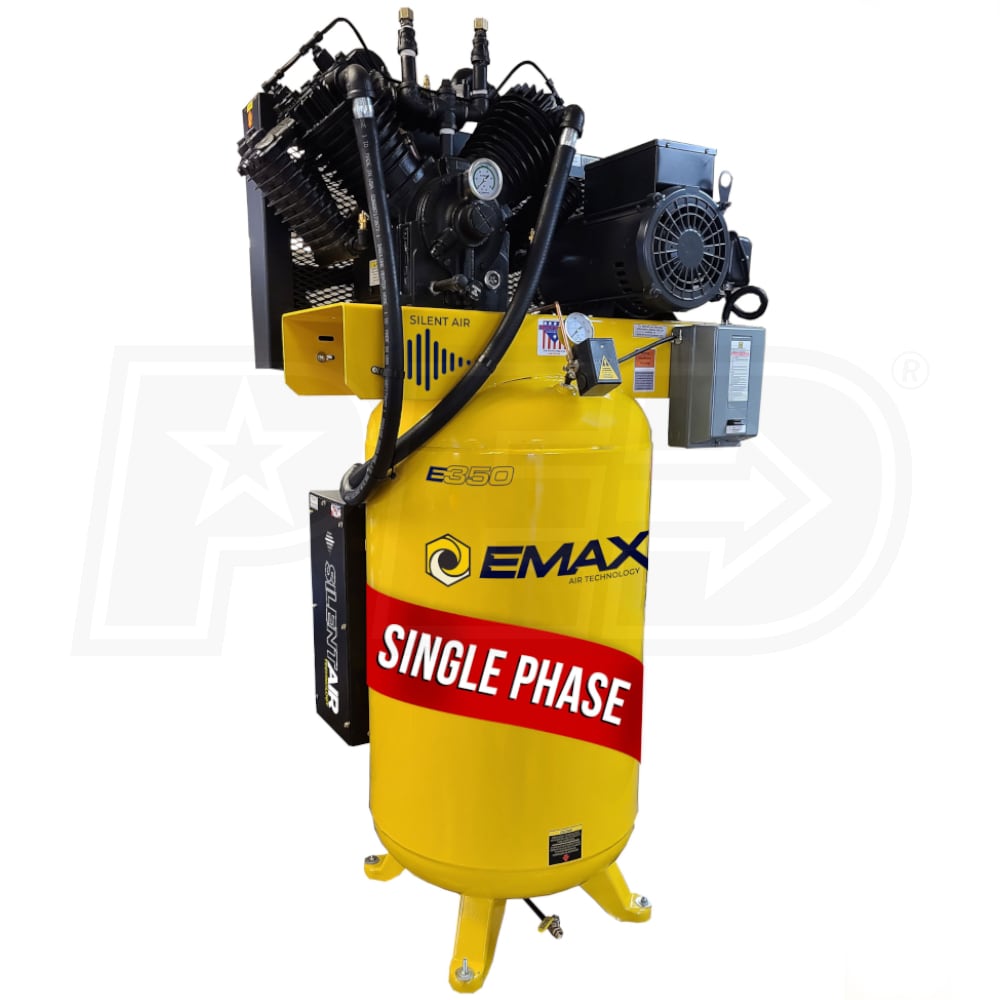

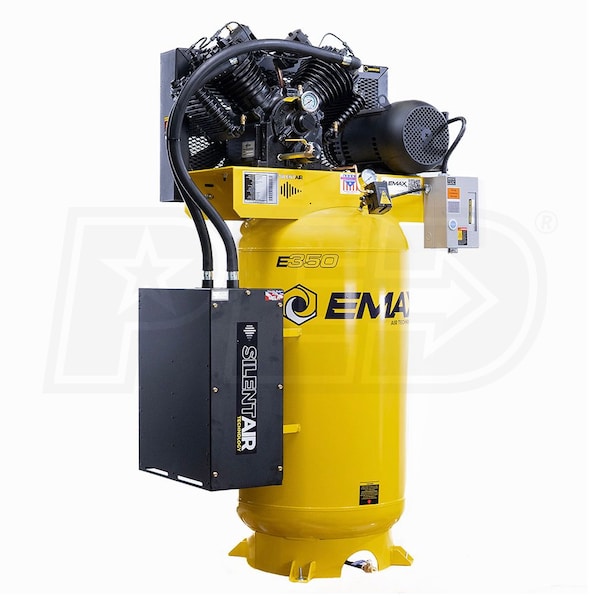

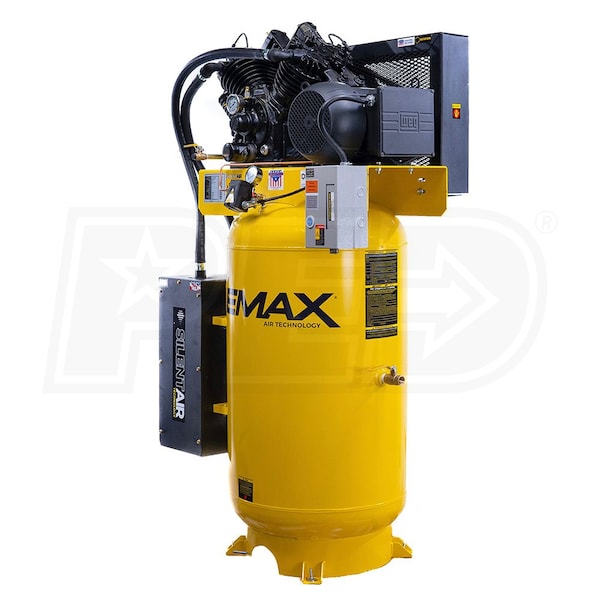

EMAX Industrial Silent Air 10-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

Model:

ES10V080V1

Write A Review
$4,299.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

EMAX Industrial Silent Air 10-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
EMAX Industrial Silent Air 10-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: ES10V080V1
$4,299.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

38

Tank Size

80

  • Patented Silent Air Technology
  • Reduces dBA readings by up to 20%
  • Provides a 5 layer filtration ideal for heavy airborne particle work environments

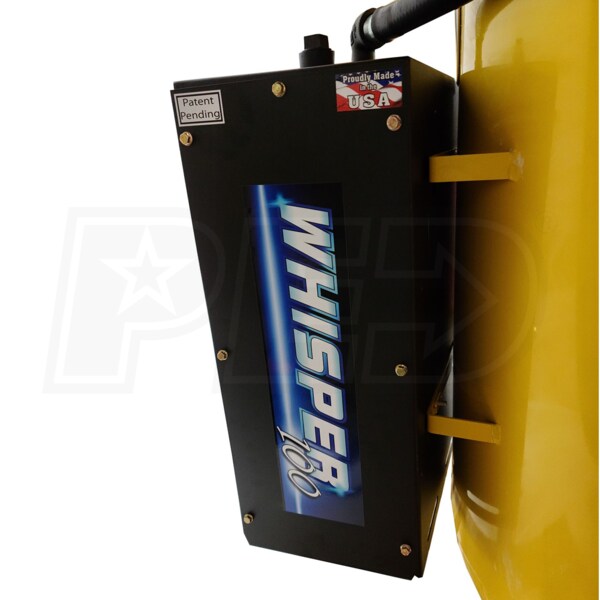

  • Patented Silent Air System
  • Piston intake noise is trapped and dissipated within the silencer structure
  • Premium Industrial UL-Rated 1750 RPM Motor
  • Low RPM extends motor life; Condor pressure switch & magnetic starter for reliable starts

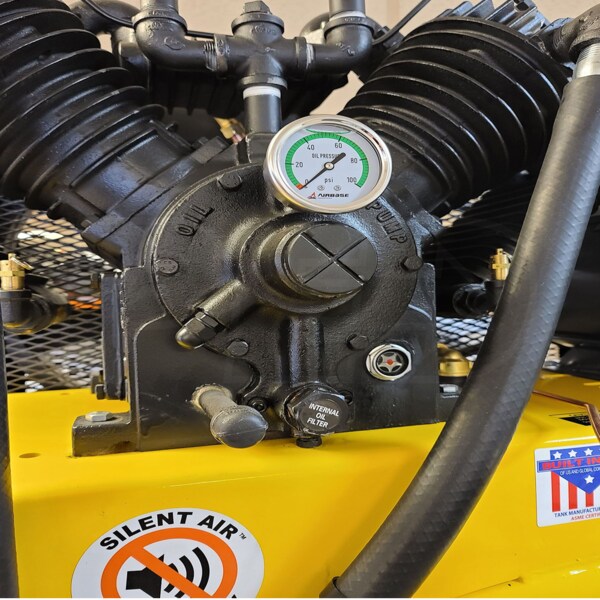

  • 2-Stage, Belt Driven Cast Iron Pump
  • Durable and reliable pump with a 2.5 qt oil capacity
  • 38 CFM @ 100 PSI; 34 CFM @ 175 PSI (MAX)
  • Durable and reliable pump with a 2.5 qt oil capacity
  • 80 Gallon Air Tank
  • ASME rated for safety to 175 PSI, with 3/4" air outlet
  • Includes isolation pads to lessen vibration and noise
  • 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ES10V080V1
specs product image PID-18822
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
810 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002012711
