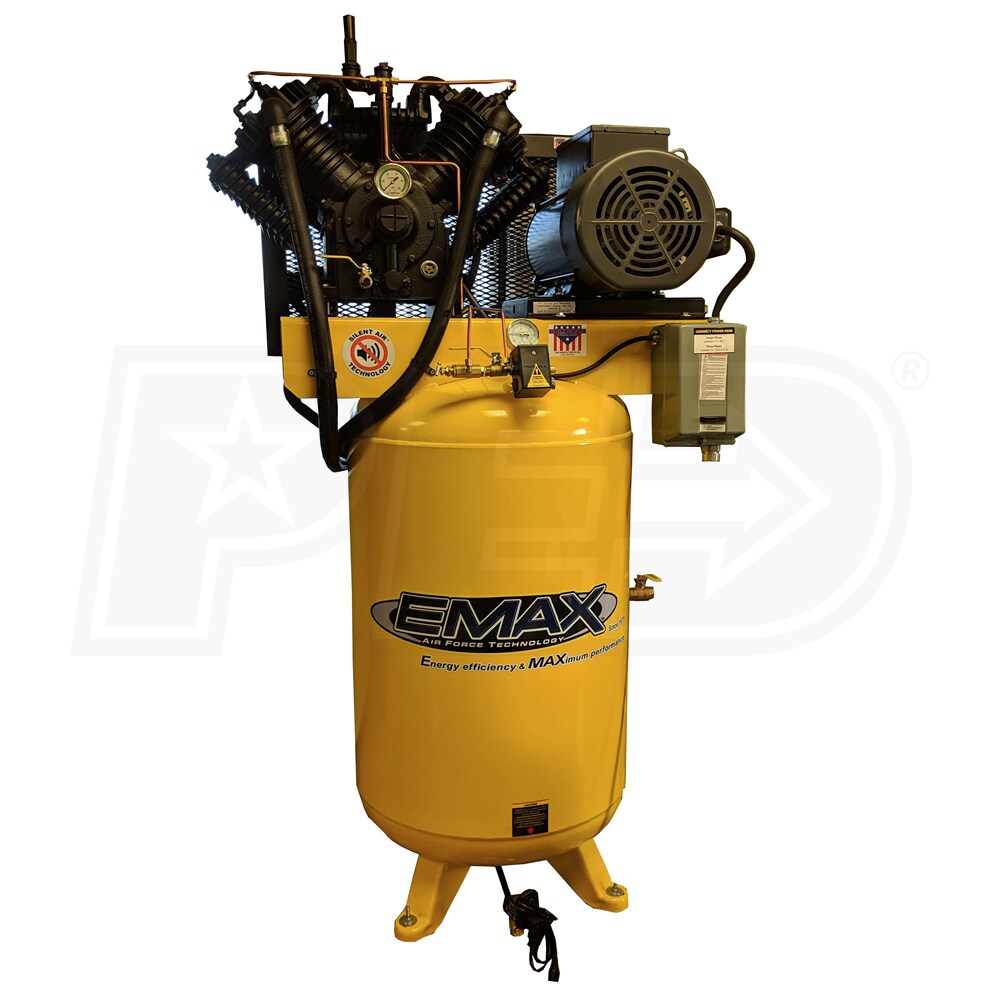

EMAX Industrial Plus Silent Air 7.5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor w/ Aftercooler (208/230V 1-Phase)

Model:

ESR07V080V1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
EMAX Industrial Plus Silent Air 7.5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor w/ Aftercooler (208/230V 1-Phase)
EMAX Industrial Plus Silent Air 7.5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor w/ Aftercooler (208/230V 1-Phase)
Model: ESR07V080V1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

31

Tank Size

80

  • 7.5-HP Industrial-Duty TEFC Grade Motor
  • Low 1750 RPM design extends useful life
  • Fully waterproof and protects from dust and dirt
  • Two-Stage Pressure-Lubricated Solid Cast Iron Pump
  • Low 640 RPM produces less heat for less wear & tear
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • 5-layer filtration is ideal for heavy airborne particle work environments

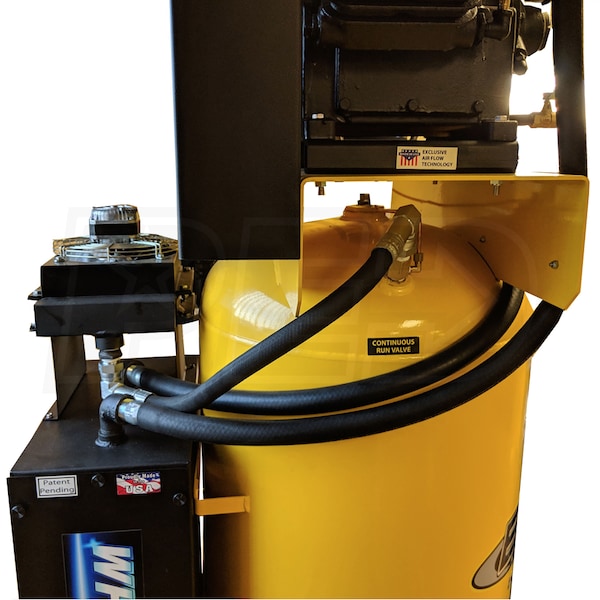

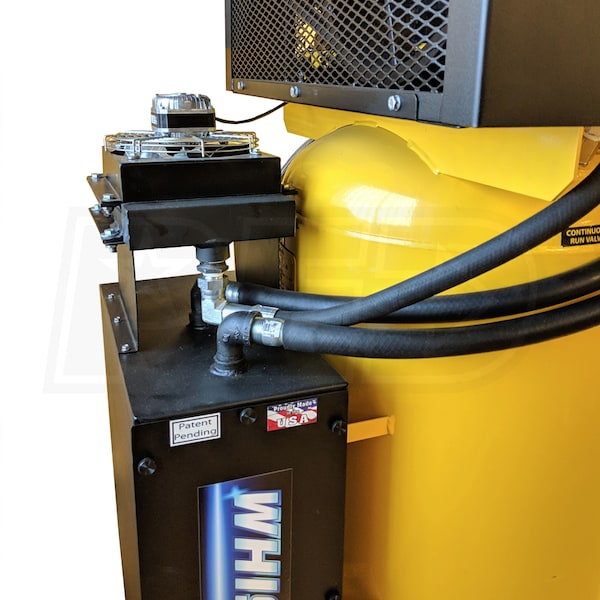

  • Built-In Aftercooler & Intercooler
  • Protects from excessive heat and moisture
  • Cools down air to provide trouble-free protection against water in your system
  • Air Stream Technology
  • Reduces moisture build up & extends pump life
  • Provides 35% lower operating temperature; coolest in the industry
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt and retighten 4 bolts
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • 80-Gallon ASME Air Tank w/ Auto Tank Drain
  • Approved for all 50 states
  • 110V dual timer controlled auto drain eliminates daily maintenance and rust build up
  • 5-Year Bumper To Bumper Factory Warranty
  • Warranty is only valid for 5-yrs with annual purchase of Maintenance Kit Model: FILTERKIT008
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ESR07V080V1
specs product image PID-97922
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
31
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
820 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
38 Inches
Product Width
42 Inches
Product Height
76 Inches
Power Type
Electric
UPC
815002017358
