EMAX HYDRO Smart Air Silent Air Industrial 10-HP 80-Gallon Variable Speed Water-Cooled Two-Stage Air Compressor w/ Wi-Fi (230V 3-Phase)

Model:

EVW10V080V3-230

Write A Review
$15,099.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

EMAX HYDRO Smart Air Silent Air Industrial 10-HP 80-Gallon Variable Speed Water-Cooled Two-Stage Air Compressor w/ Wi-Fi (230V 3-Phase)
EMAX HYDRO Smart Air Silent Air Industrial 10-HP 80-Gallon Variable Speed Water-Cooled Two-Stage Air Compressor w/ Wi-Fi (230V 3-Phase)
Model: EVW10V080V3-230
$15,099.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

38

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • HYDRO™ Water Cooled Silent Air™ & Smart Air™ Variable Compressor w/ Wi-Fi
  • Built-in single phase and 3 phase converter
  • True 100% duty rating for continuous operation 24/7/365 days; Low 63 dBA
  • Replaces ALL rotary screw, scroll, pistons with 3 patented replacement air technologies
  • 10-HP Industrial Grade Motor & Split Bar Radiator
  • Belt tension adjuster for fast, easy "one turn" design
  • Low RPM design extends useful life; motors run much cooler than 3450 RPM
  • Can be installed in or outside garages, farm shops, and industrial applications

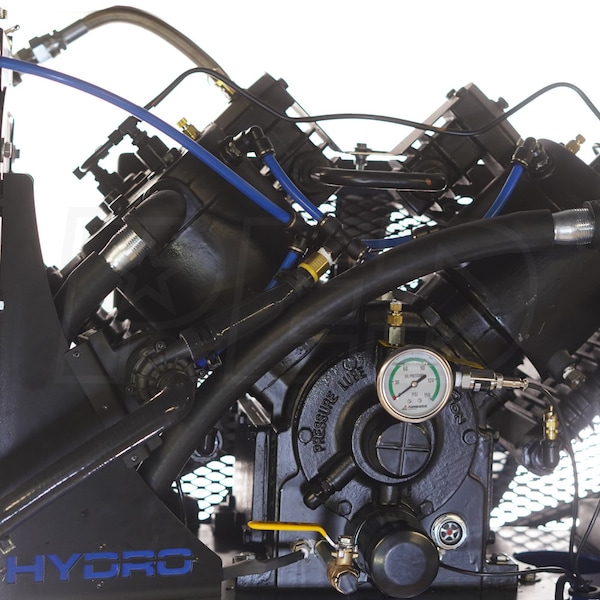

  • Ultra Quiet Pressure Lubricated Pump w/ HYDRO™ Cooling
  • Designed for up to 80,000 hours of commercial or industrial
  • Integrated aftercooler and low oil shutdown for constant protection
  • HYDRO™ cools down air temperature and reduces moisture by 50%
  • Allows for water to reach every crevice of the head to absorb heat
  • Variable Speed Programmable Mitsubishi Drive
  • Electronic drive sensors monitor air demand to adjust pump automatically
  • Soft starts at low RPMs reduce amp draw; Energy savings up to 90% in loading mode
  • Eliminates virtually all energy waste by only producing required air for specific applications
  • Silent Air™ 5-Stage Filtration System & Smart Air™ Technology
  • Reduced noise levels up to 65% through noise cancellation plates
  • High performance air filters provide 250% more air filtration versus all other brands
  • Reduces high upfront cost & annual maintenance; Estimated 50% lower operating cost
  • Smart Digital Programmable Logic Controller (PLC)
  • Displays kW energy savings while unit is running
  • Timed start/stops each day of the week and maintenance alarms
  • Enables manual and remote pressure adjustments from 70 to 175 PSI
  • Alarms include low oil shutdown, motor overload shutdown, loss of phase shutdown
  • Built-In WiFi & Network Enabled
  • For remote monitoring 24-7 and 70+ mobile commands
  • Pushes maintenance and preventative failure notification (optional)
  • 80 Gallon ASME Receiver With Auto Tank Drain
  • Includes isolation pads to lessen vibration and noise
  • 110V automatic tank drain with dual timers eliminates daily maintenance
  • 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Please See Warranty Sheet For More Information & Manuals Section For Additional Videos
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EVW10V080V3-230
specs product image PID-157368
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1050 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
32 Inches
Product Width
49 Inches
Product Height
76 Inches
Power Type
Electric
UPC
810070054120
