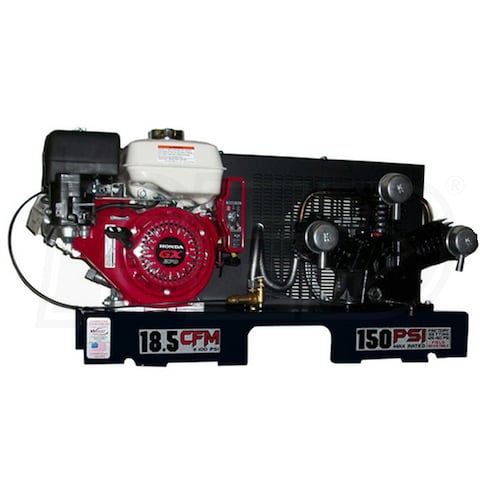

Eagle 9-HP Tankless Single Stage Truck Mount Air Compressor w/ Electric Start Honda Engine

Model:

9GSKTRKE-H

Write A Review
$2,899.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Eagle 9-HP Tankless Single Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Eagle 9-HP Tankless Single Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: 9GSKTRKE-H
$2,899.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

18.5

Tank Size

0

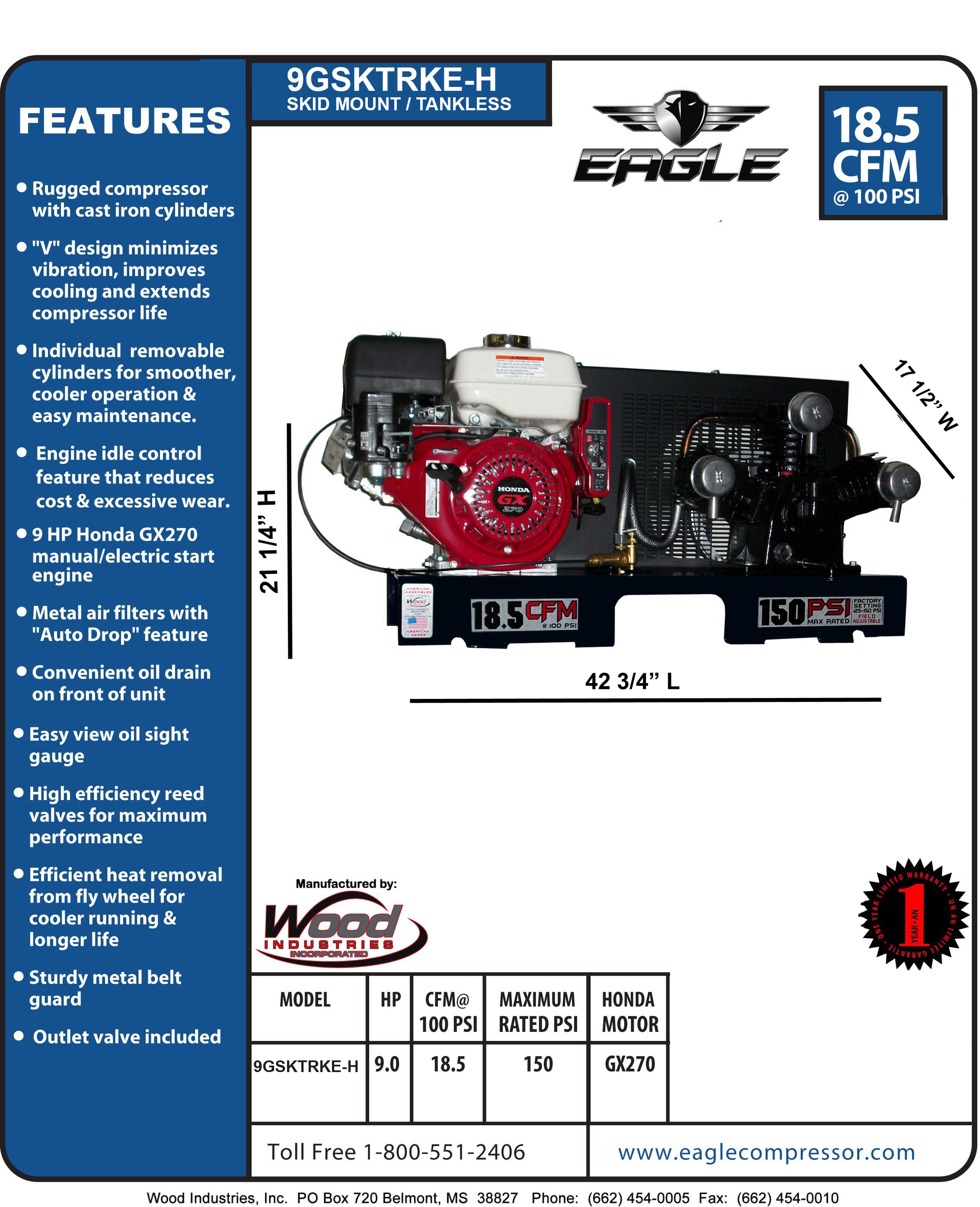

  • Tankless Single Stage Truck-Mount Compressor On Base Plate
  • Add to your own tank or custom set-up
  • Delivers high output and reliability
  • Ideal for contractor jobsite needs and emergency mobile service
  • Reliable 9-HP Commercial Grade GX270 Honda Engine
  • Provides quieter performance and lower fuel consumptions
  • Precision engineered components result in lower vibration
  • Idle control reduces cost and excessive wear & tear
  • Automatic low oil engine shutdown
  • Convenient Electric Start With Recoil Back-Up
  • Heavy duty recoil starter included for back up
  • Ensures dependable starting every time (Battery & Cables Not Included)
  • Cast Iron "V" Style Pump Produces 18.5CFM @ 100PSI
  • High efficiency reed valves for maximum performance
  • Large bore pistons give the ability to run at less RPM
  • Minimizes vibration, improves cooling, extends compressor life
  • Designed for service trucks & contractors running multiple tools
  • Easy Viewing Oil Sight Glass On Pump
  • Drain located in front of unit for easy maintenance
  • Rugged Removable & Individual Cast Iron Cylinders
  • Built to work hard and last a long time
  • Efficient heat removal from fly wheel
  • Provides cooler operation & easy maintenance
  • Solid Steel Base Plate
  • Mounting flanges allow sturdy mounting on your choice of base
  • Rust & corrosion resistant

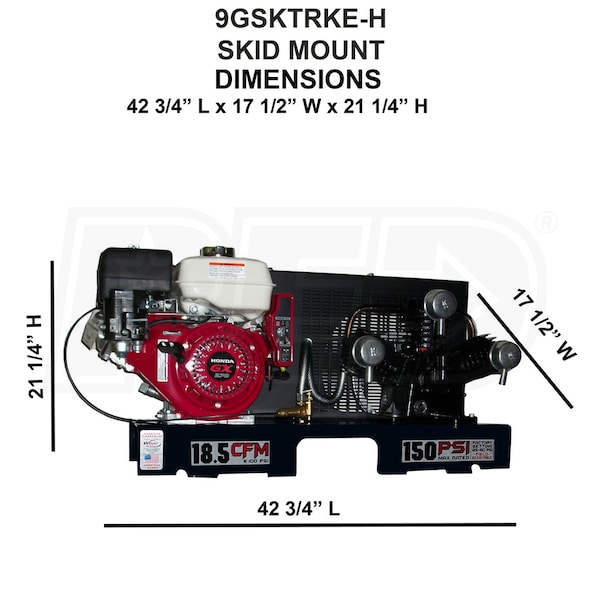

  • Unit dimensions 42-3/4" L x 17-1/2" D (Depth) x 21-1/4" H
  • Metal Air Filters With "Auto Drop" Feature
  • Extends compressor life, easy to maintain
  • Sturdy metal belt guard for ultimate protection
  • 1 Year Factory Warranty
  • Warranty extends to 2 years w/ purchase of Eagle Service Kit
  • Service kit model EA-SKG019-X
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

9GSKTRKE-H
specs product image PID-81601
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
235 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42.75 Inches
Product Width
17.5 Inches
Product Height
21.25 Inches
Power Type
Gas
UPC
020791504624
