Eagle Silent Series 3-HP 60-Gallon Oil-Free Single-Stage Air Compressor (120V)
Model:
EA-10000
+
Share This Product
Recommended Accessories
![Air Compressors Direct expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-1.png?v=1)
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Single Stage 1-Phase
CFM
10.5
Tank Size
60
- Silent Series Oil-Free Air Compressor
- More than 80% quieter than traditional air compressors

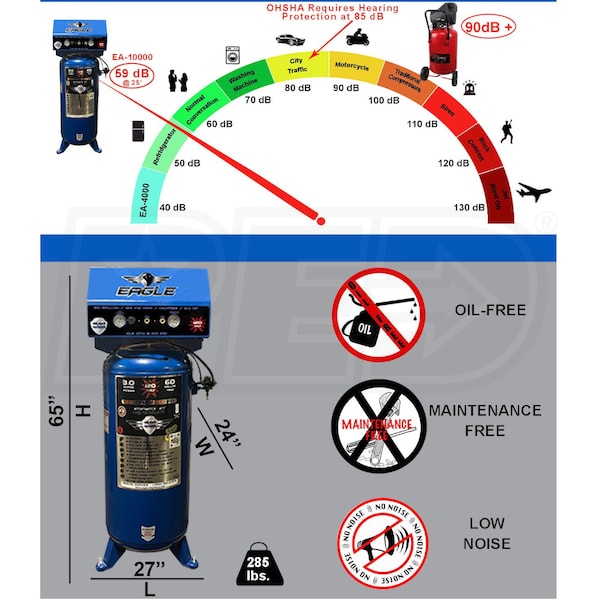

- Rated at 59 dB from 25 feet away; softer than most conversations
- Life expectancy up to 10x times longer than most oil-free air compressors
- 3-HP Running Heavy Duty Induction Motor
- Low 1720 RPM for less wear and tear for a longer life span
- Plug & Play; 120 volt requires 20 amp receptacle and breaker
- Oil-Free Double Piston Pump System
- Produces 10.5 CFM at 100 PSI
- Oil-free system requires low pump maintenance
- All Steel Construction Top-Mounted Control Panel
- Protects critical components from jobsite
- Dual gauges to monitor tool & tank pressure at a glance
- Two 1/4" air hose quick connectors for fast tool changes
- Oversized Regulator Knob
- Easy to use, even wearing work gloves
- Controls and regulates air pressure for reliable air tool operation
- 60 Gallon ASME Air Tank
- Manual drain simplifies maintenance; extends air tank life
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EA-10000
![specs product image PID-163465](/products-image/150/ea-10000_163465_1000_3b4abfffb690f1e7814d9a92d9f77b8e.jpg)
General Information
Product Category
Air Compressor - Portable
Engine
HP
3
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
59
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
20
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
10.5
CFM Rated @
100 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
60 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
285 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
27 Inches
Product Width
24 Inches
Product Height
65 Inches
Power Type
Electric
UPC
020791504860
