Features
Grade
Consumer
Style
Twin Stack
CFM
6.5
Tank Size
5
- Rugged Compressor With Cast Iron Cylinder
- Puts out 6.5 CFM at 90 PSI to work with many air tools
- High efficiency reed valves provide maximum output
- Individual & Removable Cylinders
- Smoother & cooler operation for optimum performance
- Metal air filter with "Auto Drop" feature for easy servicing
- Thermally Protected 120V Electric Motor
- CSA/US approved; runs on household outlets
- 3450 RPM running speed can operate multiple air nail guns
- Top Mounted Control Panel
- 1/4" dual air hose quick connectors simplify tool use
- Dual gauges to monitor tool & tank pressure at a glance
- Oversized regulator knob is easy to use, even wearing work gloves
- Portable Roll Cage Design w/ Flat Free Wheels
- 40-inch fully extended handle with foam cover
- Heavy-duty roll cage protects pump and components
- Maneuver effortlessly and anti-vibration feet keep unit steady
- Integrated Small Storage / Tool Box
- Keeps tools on hand and neatly organized
- 5 Gallon Total Air Reserve
- Rated up to 140 PSI maximum
- Two 2.5-gallon tanks can easily be moved around
- Convenient Oil Drain
- Located on the front for easy maintenance
- Oil sight gauge lets you monitor level at a glance
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
TS3050L+
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Engine
HP
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6.5
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
140 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
106 Pounds
Certification
CSA/US
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
29 Inches
Product Height
16.5 Inches
Dimensions
40" Height w/ Handle Extended
Power Type
Electric
Reviews
Eagle TS3050L+ Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How to Pick the Perfect Contractor Twin Stack Compressor
There is your typical consumer-grade twin stack air compressor.And then, there'...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Twin-Stack Compressor
You don't have to be Tim "The Tool Man" Taylor to take on home improvement task...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

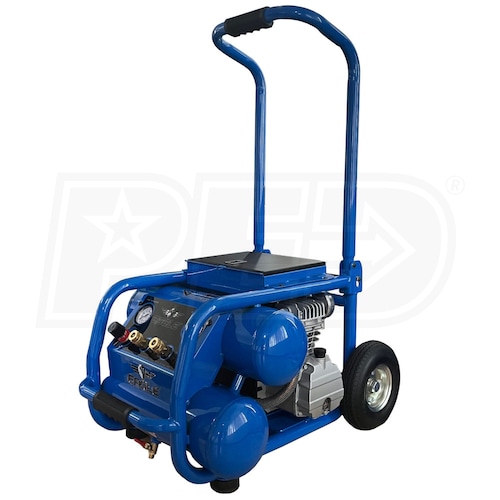

Eagle 3-HP 5.0-Gallon Twin Stack Air Compressor
