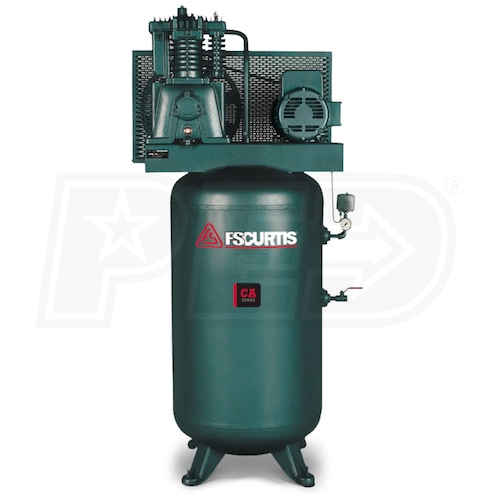

FS-Curtis CA5+ 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Model:

FCA05E57V8S-A2L1XX

Write A Review
$3,755.16
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

FS-Curtis CA5+ 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
FS-Curtis CA5+ 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: FCA05E57V8S-A2L1XX
$3,755.16
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Voltage

230 Volt AC

Phase

1-Phase

CFM

18.5

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Robust CA Series 2-Stage Air Compressor
  • Provides higher pressures, better efficiency & longer life for rugged, heavy-duty applications
  • Durable Cast Iron Pump
  • Slow-turning pump increases pump life; long lasting cylinders & cylinder heads are 100% cast iron
  • Reliable UL-approved automatic start/stop pressure switch & ASME-approved safety valve
  • Magnetic Motor Starter
  • Safely starts the NEMA motor, provides under-voltage & overload protection for longer motor life
  • Heavy Duty Stainless Steel Valve System
  • Delivers more CFM per horsepower: 18.5 CFM at 175 PSI
  • Metal Intake Filter/Silencers
  • Cleaner air coming in reduces wear & tear, allows better quality air output
  • Heavy Duty Stamped-Steel Belt Guard
  • Totally encloses the dynamically balanced flywheel & belt; OSHA-approved for operator safety
  • Large Dial Read-Out Pressure Gauge
  • Easily check pressure at a glance
  • 80 Gallon ASME-Approved Air Receiver
  • Manual condensate tank drain valve simplifies maintenance; discharge valve is ASME-approved
  • 1 Year Factory Warranty
  • Extends to 5 years using FS-Curtis maintenance products
  • The Reciprocating Start Up and Warranty Registration form must be completed in its entirety ONLINE at www.fscurtis.com within 30 days of the original start up date
  • For detailed information please see Warranty Breakdown under the Manuals tab
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FCA05E57V8S-A2L1XX
specs product image PID-76257
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
510 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
36 Inches
Product Width
25 Inches
Product Height
74 Inches
Power Type
Electric
