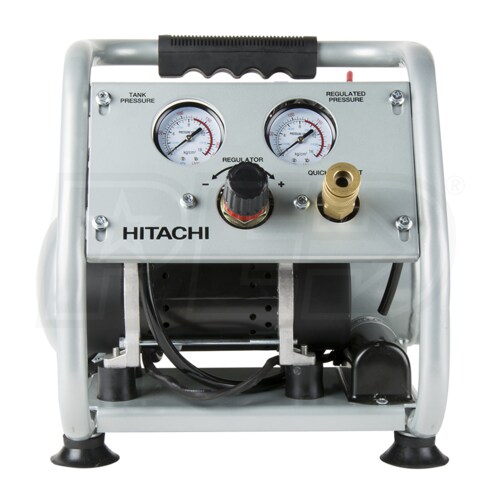

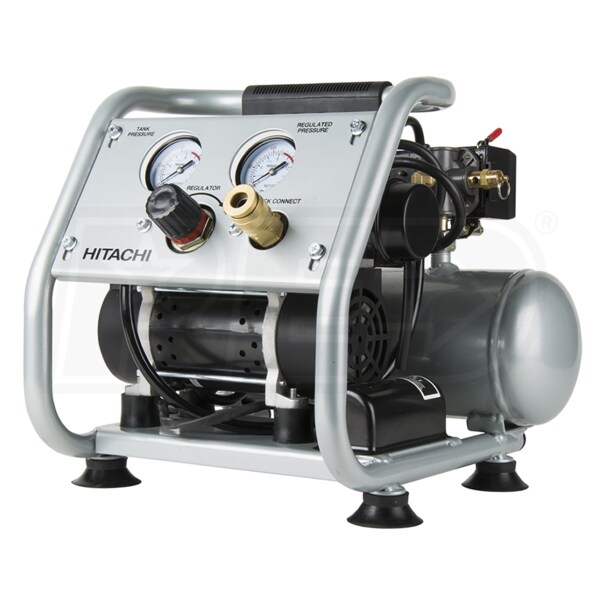

Hitachi EC28M
Hitachi EC28M
Hitachi EC28M
Hover to zoom
1 Of 5
Hitachi EC28M
Hitachi EC28M

Metabo HPT Quiet 1-Gallon Hot Dog Air Compressor

Model:

EC28M

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Metabo HPT Quiet 1-Gallon Hot Dog Air Compressor
Metabo HPT Quiet 1-Gallon Hot Dog Air Compressor
Model: EC28M
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Hot Dog

CFM

0.8

Tank Size

1



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Ultra-Quiet Hot Dog Portable Air Compressor
  • 59 dBA is great for indoor use where noise is an issue
  • Ideal choice for homeowners, DIY-ers, trim carpenters and contractors
  • Industrial Grade Oil-Free Pump
  • Aluminum head helps dissipate heat
  • Provides high durability with no maintenance
  • Great for trim, roofing, decking, framing, dust blowing, etc
  • Delivers 0.8 cfm @ 90 PSI; 125 Maximum PSI
  • More than enough to help you get the job done
  • Motor overload protection stops overheating situations
  • Durable 1/2-HP Direct Drive Motor
  • Offers efficient and reliable performance
  • Works on household 115V single phase outlets
  • Steel Roll Cage With Rubber Grip
  • Built to handle heavy usage for all types of jobs
  • Protects all critical components & provides comfort during transport
  • Stainless Steel Braided Discharge Hose
  • Resist corrosion and remains flexible
  • Stainless steel braiding adds strength to withstand high pressure
  • Compact & Lightweight
  • Easy to move and lift weighing only 25lbs
  • Small design makes it easy to transport from job to job
  • 1-Gallon Hot Dog Air Tank
  • Easy-to-use ball valve drain for quick tank draining
  • Shock absorbing feet reduce vibration and minimize crawling
  • Convenient Top Mounted Control Panel
  • Ready for plug-and-play tool functionality
  • Quick coupler for easy one-handed hose connection
  • Industrial regulator & gauges for simple operation and pressure adjustment
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EC28M
specs product image PID-85544
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
59
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
2.8
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
0.8
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1 Gallon
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
25.2 Pounds
Consumer Warranty
1 Year
Product Length
14 Inches
Product Width
14.5 Inches
Product Height
14 Inches
UPC
717709023666
