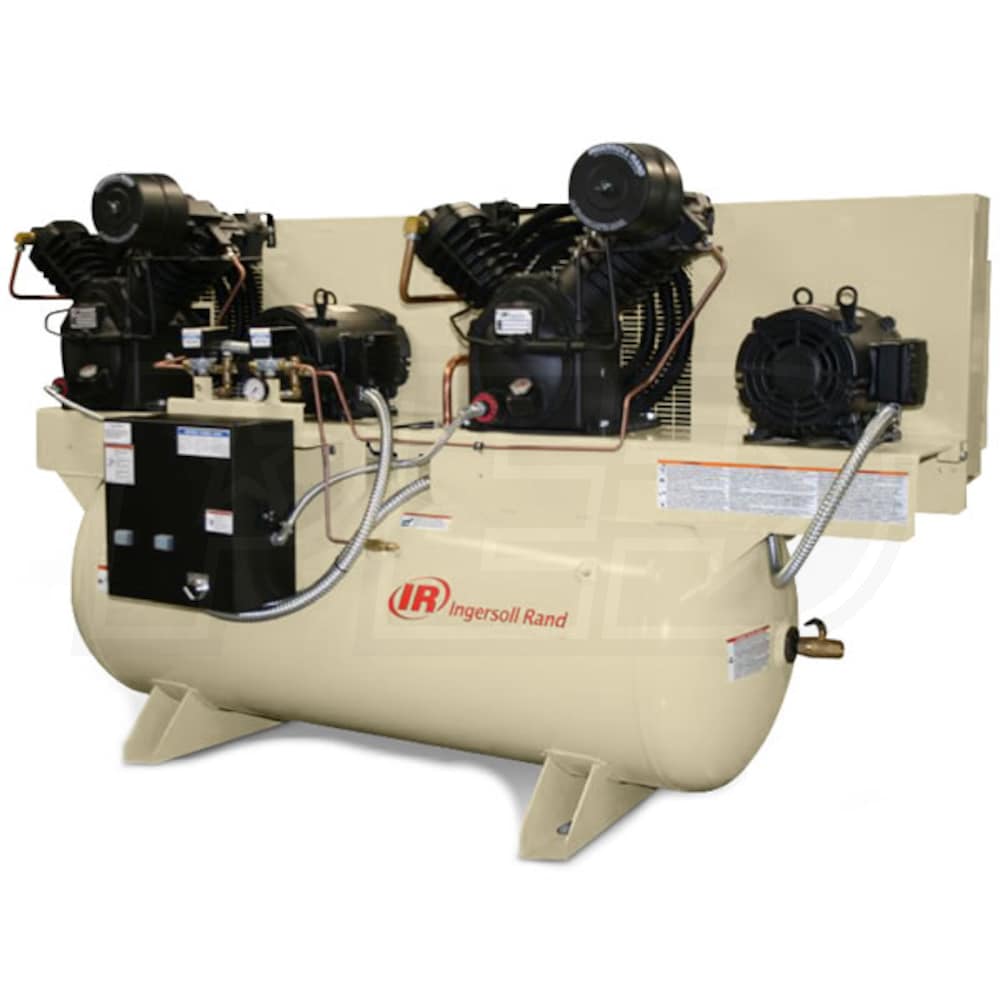

Ingersoll Rand 7.5-HP / 15-HP 120-Gallon Two-Stage Duplex Air Compressor (230V 3-Phase) Fully Packaged

Model:

2-2475E7.5P-230

Write A Review
$9,699.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 20th
Shipping to60601

Ingersoll Rand 7.5-HP / 15-HP 120-Gallon Two-Stage Duplex Air Compressor (230V 3-Phase) Fully Packaged
Ingersoll Rand 7.5-HP / 15-HP 120-Gallon Two-Stage Duplex Air Compressor (230V 3-Phase) Fully Packaged
Model: 2-2475E7.5P-230
$9,699.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

48.2

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • 2 Individual 7.5HP Motors & Pumps Mounted On A Single Tank
  • Provides 100% backup
  • Automatic alternating of motors & pumps for even wear

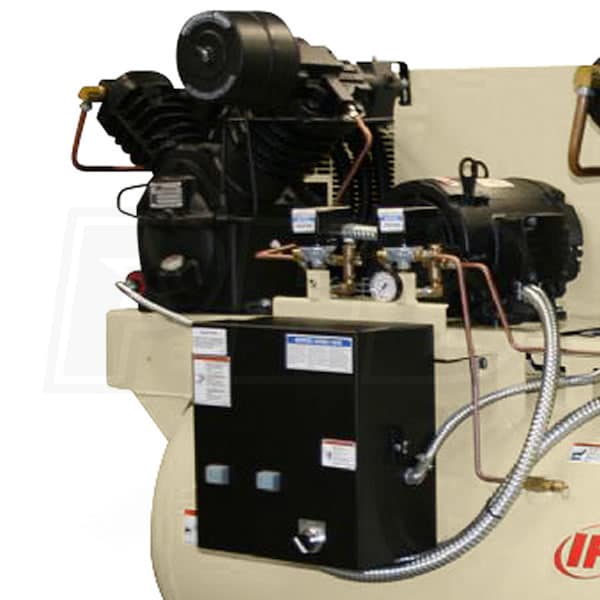

  • Fully Packaged With Magnetic Starter
  • Electric drain, aftercooler, low oil level switch, & dual control
  • Dual Control With Centrifugal Unloader
  • Allows you to select which motor/pump to use
  • Continuous-Duty Operation
  • 100% duty cycle from durable cast-iron cylinders and pump
  • Individually Cast Cylinders & Overhung Crankshaft
  • One-piece connecting rod for easy maintenance & service
  • 175 PSIG Maximum Operating Pressure
  • Ideal for applications requiring high air capacity & pressure
  • Low Oil Level Switch & Air Cooled Aftercooler
  • Switch protects the pump; unit runs cooler & lasts longer
  • Electric Tank Drain
  • Easier to maintain; limits condensation & rust
  • 1-Year Warranty (Unit Ships Dry)
  • 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
  • (2) IR Start Up Kit must be added at time of air compressor purchase
  • Ingersoll Rand Reciprocating Compressors Ship Dry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2-2475E7.5P-230
specs product image PID-9392
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
48.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage - Dual Pump
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Overview
Product Category
Air Compressor - Stationary
Weight
1315 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
84 Inches
Product Width
35 Inches
Product Height
48 Inches
Power Type
Electric
UPC
678384656894
