Ingersoll Rand 2475X13GH
Ingersoll Rand 2475X13GH
Hover to zoom
1 Of 5

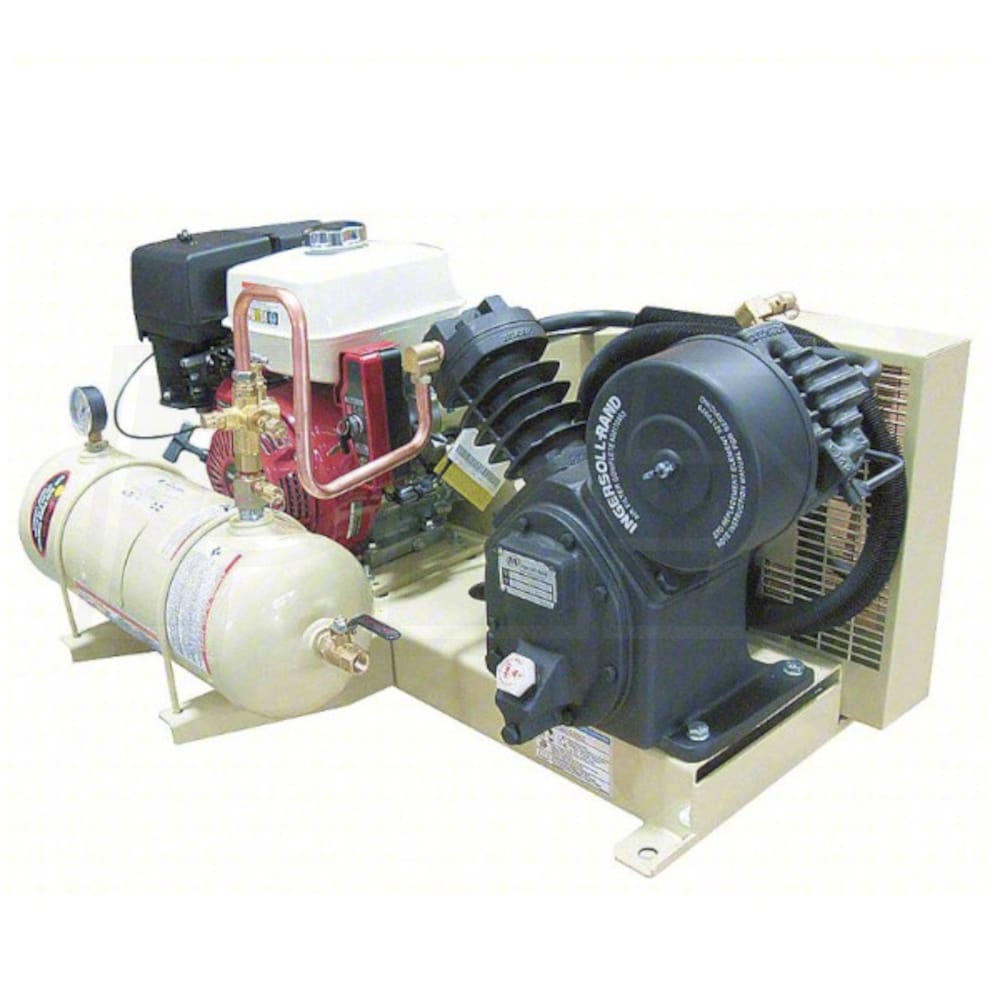

Ingersoll Rand 13-HP 4-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine

Model:

2475X13GH

Write A Review
$4,499.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Ingersoll Rand 13-HP 4-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine
Ingersoll Rand 13-HP 4-Gallon Two-Stage Truck Mount Air Compressor w/ Honda Engine
Model: 2475X13GH
$4,499.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Style

Truck Mount

Engine Brand

Honda GX

CFM

24.3

Tank Size

4



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Truck-Mounted Two-Stage Gas Air Compressor
  • For fleet and field service applications where electrical power is scarce
  • Ideal for remote pneumatic applications, emergency production lines & other situations
  • Honda GX 390 Commercial-Grade OHV Engine
  • Contractor recommended and approved
  • GX Series offers premium features with easy starting
  • Low oil shutdown, quieter performance, and lower fuel consumption
  • Electric Start w/ Backup Recoil Start
  • Easily start your air compressor with a turn of a key
  • Battery and cables not included; must be purchased separately
  • Built-In Alternator
  • Recharges electric start battery
  • No need to wire into service trucks electrical system
  • Idle Control
  • Saves fuel and allows for a quieter operation
  • Weather-Resistant Paint & Cast-Iron Construction
  • High quality, reliable performance that's built to last
  • Powder coated finish is tough and stands up to the elements
  • 4-Gallon Baseplate
  • Easy to read pressure gauge
  • Mount to the bed of a truck or a trailer for ready access to compressed air
  • American Pride
  • Proudly built in the U.S.A.
  • 1-Year Warranty (Unit Ships Dry)
  • 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2475X13GH
specs product image PID-93202
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Fuel Tank Size
1.7
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24.3
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
400 Pounds
CARB Compliant
Yes
Certification
ASME
Product Style
Air Compressor - Portable
Product Length
41 Inches
Product Width
27 Inches
Product Height
27 Inches
Power Type
Gas
UPC
678384238038
