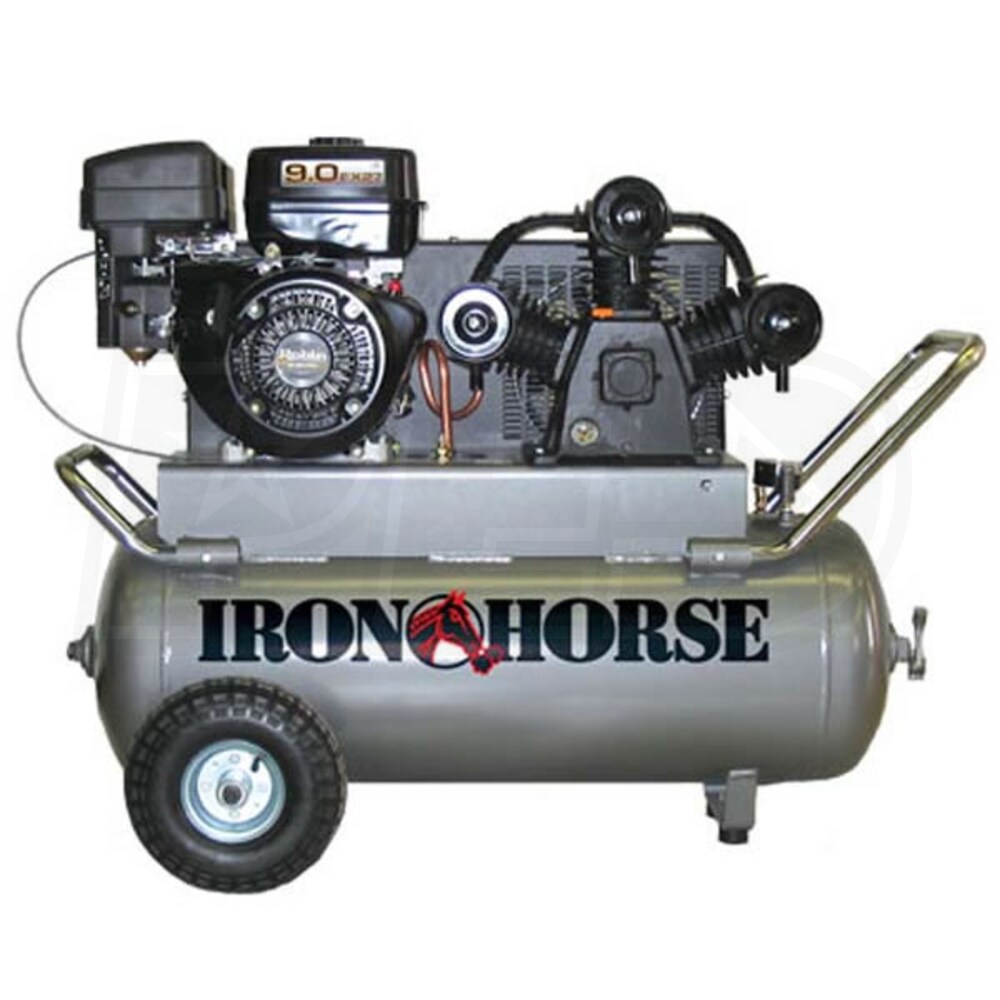

Iron Horse 9-HP 25-Gallon (Belt Drive) Cast-Iron Air Compressor

Model:

IHP90G25H1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Iron Horse 9-HP 25-Gallon (Belt Drive) Cast-Iron Air Compressor
Iron Horse 9-HP 25-Gallon (Belt Drive) Cast-Iron Air Compressor
Model: IHP90G25H1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Horizontal

Engine Brand

Robin Subaru

CFM

16.5

Tank Size

25

  • Reliable 9-HP Robin/Subaru OHV Engine
  • Starts easy, works hard, and runs quiet
  • Provides smooth and maximum reliability
  • Rugged 3 Cylinder Solid Cast Iron Pump
  • Durable and dependable, operates smoothly
  • Tough enough for professional use & larger tools up to 16.5 CFM
  • Rugged Removable & Individual Cast Iron Cylinders
  • Offers easy maintenance
  • Sturdy 25 Gallon Tank Rated To 150 PSI
  • Handles on each end for ease of transport
  • Pneumatic wheels dampen vibration
  • Top Mounted Pressure Gauge
  • Protected location is still easy to see
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

IHP90G25H1
specs product image PID-5504
Engine
HP
9
Engine Brand
Robin Subaru
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
25 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
331 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
40 Inches
Product Height
49 Inches
Power Type
Gas
UPC
020791502057
