Jenny AM780-HC4V
Jenny AM780-HC4V
Hover to zoom
1 Of 5

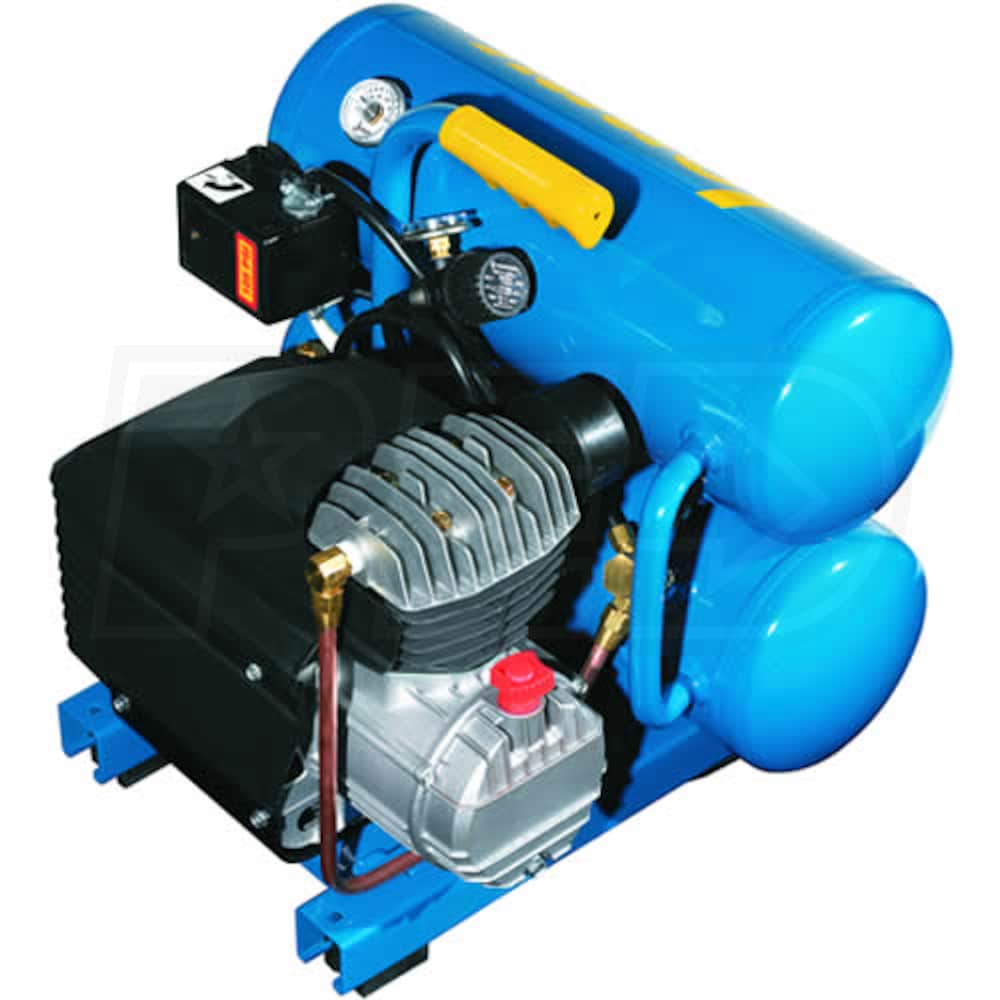

Jenny 2-HP 4-Gallon Contractor Twin Stack Air Compressor

Model:

AM780-HC4V

Write A Review
$644.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Out of Stock
Sorry, this product is currently unavailable.
Continue Shopping With These Categories
Jenny 2-HP 4-Gallon Contractor Twin Stack Air Compressor
Jenny 2-HP 4-Gallon Contractor Twin Stack Air Compressor
Model: AM780-HC4V
$644.99
Out of Stock
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Twin Stack

CFM

4.1

Tank Size

4

  • 4-Gallon Twin Stack Design
  • Lightweight, compact and extremely portable
  • Oil-Lubricated Direct-Drive Pump
  • Cast iron cylinder for extended pump life
  • Aluminum head for better heat dissipation
  • Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
  • Canister Inlet Filter
  • With replaceable filter elements for extend pump life
  • Heavy Duty Steel Tank & Frame Assembly
  • Powder coated to provide protection on the job site
  • Air Line Regulator & Two Gauges
  • The ability to monitor line and tank pressure
  • Added Features
  • Anti-vibration feet
  • Protectively mounted fittings
  • Pressure relief safety valve
  • Manual tank drains
  • Special unloading valves to assist in motor/engine starting
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

AM780-HC4V
specs product image PID-3824
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Recommended Breaker
15 Amp Breaker
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.1
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
60 Pounds
Certification
CSA
Consumer Warranty
1 Year
Product Length
18 Inches
Product Width
15 Inches
Product Height
16 Inches
Power Type
Electric
UPC
885188000024
