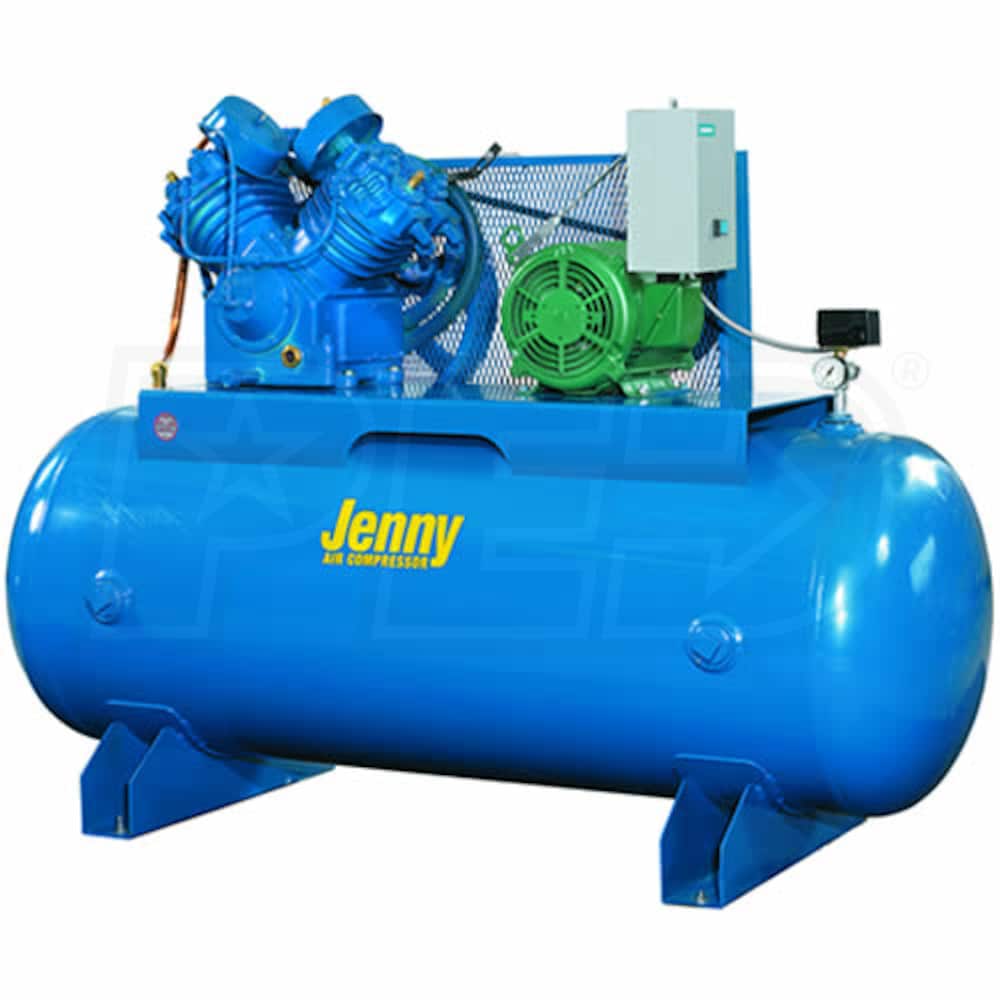

Jenny U75B-80 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)

Model:

U75B-80-460/3

Write A Review
$4,099.99
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Out of Stock
Sorry, this product is currently unavailable.
Continue Shopping With These Categories
Jenny U75B-80 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Jenny U75B-80 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: U75B-80-460/3
$4,099.99
Out of Stock
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

27.2

Tank Size

80

  • Heavy Duty Splash Lubricated Two Stage Cast Iron Pump
  • Made in Somerset, PA USA
  • Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
  • Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
  • Large flywheel for extra cooling and easier start-up
  • Directional air shroud for reduced pump temperatures
  • 7.5-HP Industrial/Commercial Grade UL Listed Electric Motor
  • Thermal overload motor protection
  • Includes magnetic starter
  • 80-Gallon Air Receiver
  • Powder coated and ASME certified
  • Large Canister Inlet Filter
  • With replaceable filter elements for extended pump life
  • Auto Start/Stop Control w/ Pressure Unloader
  • Set at 145-175 PSI
  • Added Features
  • Protectively mounted fittings & manual tank drain
  • Tank gauge & pressure relief safety valve
  • Special unloading valves to assist in motor starting
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

U75B-80-460/3
specs product image PID-3835
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
27.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
815 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Product Length
75 Inches
Product Width
38 Inches
Product Height
53 Inches
Power Type
Electric
UPC
885188072489
