Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
17.5
Tank Size
80
- Heavy Duty Splash Lubricated Two Stage Cast Iron Pump
- Made in Somerset, PA USA
- Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
- Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
- Large flywheel for extra cooling and easier start-up
- Directional air shroud for reduced pump temperatures
- 5-HP Industrial/Commercial Grade UL Listed Electric Motor
- Thermal overload motor protection
- Includes magnetic starter
- 80-Gallon Air Receiver
- Powder coated and ASME certified
- Large Canister Inlet Filter
- With replaceable filter elements for extended pump life
- Auto Start/Stop Control w/ Pressure Unloader
- Set at 145-175 PSI
- Added Features
- Protectively mounted fittings & manual tank drain
- Tank gauge & Pressure relief safety valve
- Special unloading valves to assist in motor starting
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
W5B-80V
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17.5
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
640 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Product Length
51 Inches
Product Width
42 Inches
Product Height
78 Inches
Power Type
Electric
UPC
885188067720
Reviews
(2)
Jenny W5B-80V Reviews & Ratings
How-To Articles
How To Pick The Perfect Two-Stage Air Compressor
If you've ever worked in manufacturing or visited your local garage, you might ...
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make itsimple. W...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

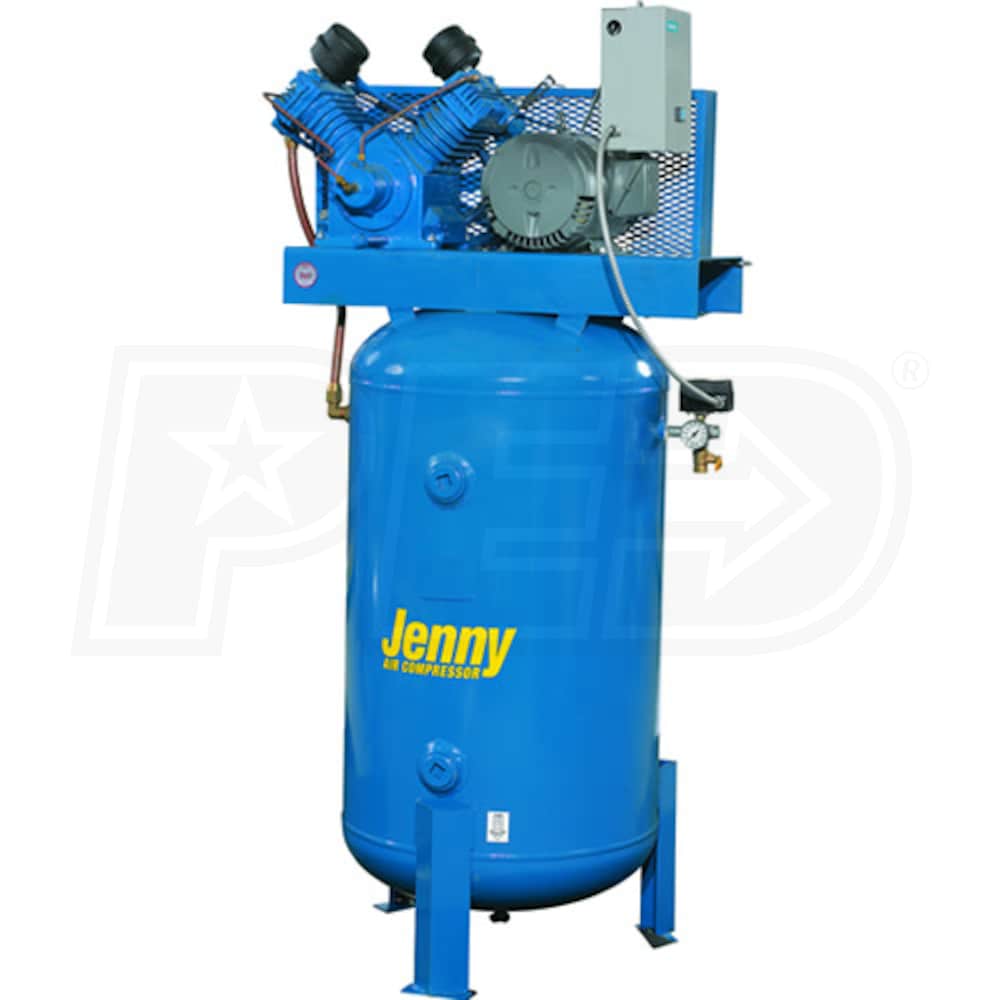

Jenny W5B-80V 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
