MAXair 3.2-HP 25-Gallon (Belt Drive) Cast-Iron Air Compressor

Model:

P4125H1-MAP

Write A Review
$1,349.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

MAXair 3.2-HP 25-Gallon (Belt Drive) Cast-Iron Air Compressor
MAXair 3.2-HP 25-Gallon (Belt Drive) Cast-Iron Air Compressor
Model: P4125H1-MAP
$1,349.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Horizontal

CFM

12.5

Tank Size

25

    **Due To Product Issue Unit Will Be Occasionally Built On A Black Tank If Necessary**
  • Rugged 3.2 Running HP Electric Air Compressor
  • Heavy duty design elements for top performance

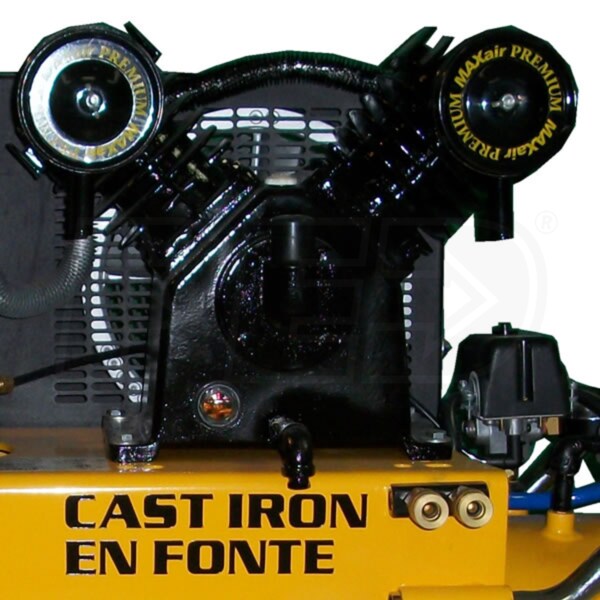

  • Cast Iron Pump And Premium Air Filters
  • Long lasting and easy to maintain
  • "V" Design Minimizes Vibration
  • Improves cooling and extends compressor life
  • Individual & Removable Cylinders
  • For smoother and cooler operation
  • 25 Gallon Air Tank With Liquid Filled Pressure Gauge
  • Rated to 170 PSI; 12.5 CFM @ 100 PSI runs powerful tools
  • Sturdy Pneumatic Tires
  • Easy handling & maneuverability
  • Efficient Heat Removal From Pulley-Fan
  • For cooler running and longer life
  • Sturdy Metal Belt Guard
  • Protects you and the belt during operation & transport
  • Outlet Valve & Regulator Included
  • Easy view oil sight glass makes maintenance simple
  • Generous 2 Year Factory Warranty
  • Protects your investment
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

P4125H1-MAP
specs product image PID-5488
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
15
Engine
HP
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
12.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
25 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
222 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
46 Inches
Product Width
24 Inches
Product Height
44 Inches
Power Type
Electric
UPC
020791502033
