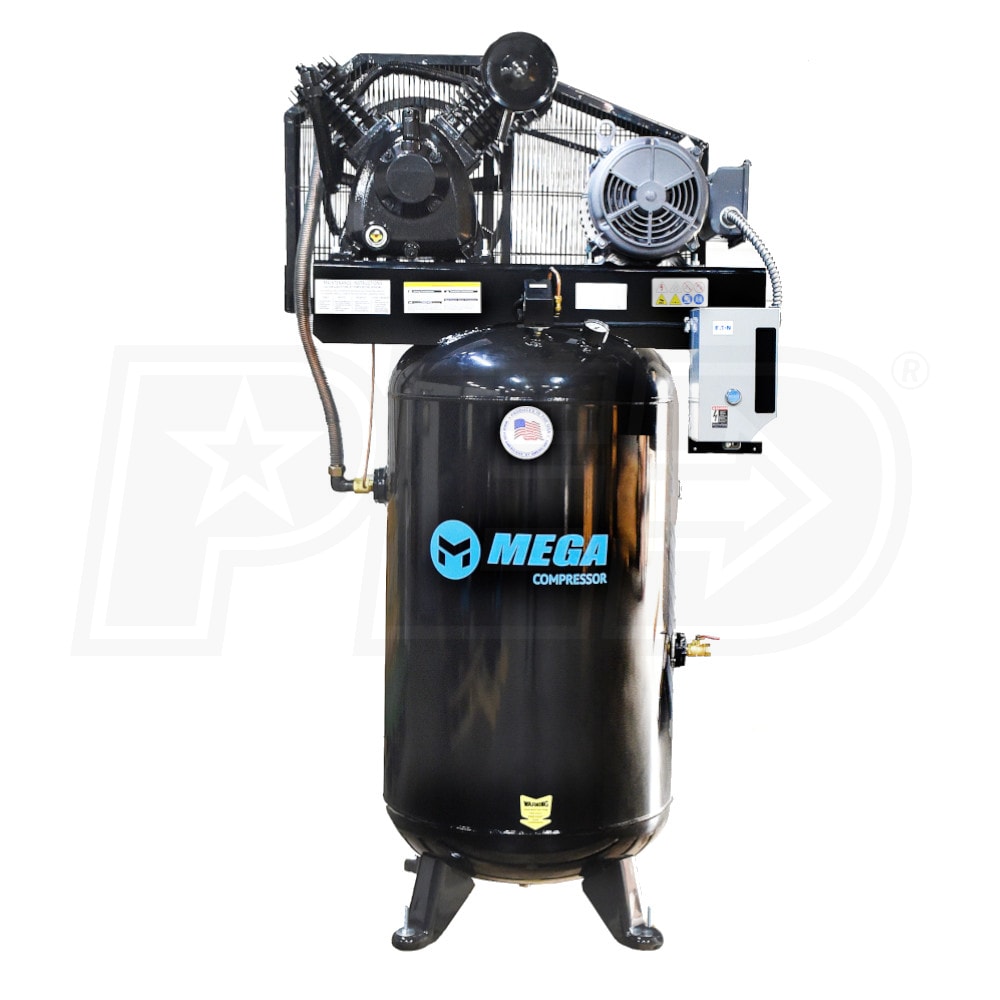

MEGA Industrial Series 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 3-Phase)

Model:

MP-7580VM3

Write A Review
$2,683.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

MEGA Industrial Series 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 3-Phase)
MEGA Industrial Series 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 3-Phase)
Model: MP-7580VM3
$2,683.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Voltage

208-230 Volt AC

Phase

3-Phase

CFM

22

Tank Size

80

  • MEGA Two-Stage Industrial Air Compressor
  • Designed for the serious DIY'er, professional or contractor
  • Install and operate in garages, farm shops & industrial applications
  • Heavy-Duty 7.5-HP Induction Motor
  • Provides maximum performance and efficiency
  • Low 1755 RPM reduces wear and tear for longer life span
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • Provides thermal overload protection for the motor
  • Delivers 22 CFM @ 90 PSI: Max 175 PSI
  • Plenty of power to run a wide range of air tools
  • Tackle rotating tires, grinding, sanding, painting, nailing & more
  • Cast Iron Splash Lubricated Pump
  • Thermally stable cast iron cylinder body
  • Aluminum head and machine cast iron valve plate
  • Aluminum pump head helps dissipate heat for longer pump life
  • One-Piece Cast Iron Crankcase
  • "V" Design minimizes vibration and improves cooling
  • Durable automotive-style ball bearing and stainless steel reed valves
  • 80-Gallon Vertical ASME Tank
  • Fully enclosed belt guard protects you and the belt
  • Easy-access manual drain simplifies routine maintenance
  • Easy Viewing Oil Sight Glass On Pump
  • Easily check compressors pump oil level
  • Conveniently accessible oil fill for fast maintenance
  • 1-year Limited Warranty
  • Protects your investment
  • Shipped with 100% full synthetic air compressor
  • MEGA Two-Stage Industrial Air Compressor
  • Designed for the serious DIY'er, professional or contractor
  • Install and operate in garages, farm shops & industrial applications
  • Heavy-Duty 7.5-HP Induction Motor
  • Provides maximum performance and efficiency
  • Low 1755 RPM reduces wear and tear for longer life span
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • Provides thermal overload protection for the motor
  • Delivers 24 CFM @ 175 PSI: Max 175 PSI
  • Plenty of power to run a wide range of air tools
  • Tackle rotating tires, grinding, sanding, painting, nailing & more
  • Cast Iron Splash Lubricated Pump
  • Thermally stable cast iron cylinder body
  • Aluminum head and machine cast iron valve plate
  • Aluminum pump head helps dissipate heat for longer pump life
  • One-Piece Cast Iron Crankcase
  • "V" Design minimizes vibration and improves cooling
  • Durable automotive-style ball bearing and stainless steel reed valves
  • 80-Gallon Vertical ASME Tank
  • Fully enclosed belt guard protects you and the belt
  • Easy-access manual drain simplifies routine maintenance
  • Easy Viewing Oil Sight Glass On Pump
  • Easily check compressors pump oil level
  • Conveniently accessible oil fill for fast maintenance
  • 1-year Limited Warranty
  • Protects your investment
  • Shipped with 100% full synthetic air compressor
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

MP-7580VM3
specs product image PID-118708
General Information
Product Category
Air Compressor - Stationary
Engine
HP
7.5
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
17
Recommended Breaker
40 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22
CFM Rated @
90 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
508 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
39 Inches
Product Width
44 Inches
Product Height
84 Inches
Power Type
Electric
UPC
376204971546
