Features
Grade
Contractor
Style
Portable - Horizontal
Engine Brand
Honda GX
CFM
20
Tank Size
22
- Reliable 9-HP Honda GX270 OHV Engine
- Low oil engine shutdown for maximum reliability
- Easy starting, high low fuel and oil consumption and reduced noise levels
- Delivers 20 CFM @ 90 PSI: Max 150 PSI
- Plenty of power to run a wide range of air tools
- Low 1100 RPM reduces wear and tear for longer lifespan
- Cast Iron Splash Lubricated High Stroke Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- One-Piece Cast Iron Crankcase
- "W" Design minimizes vibration and improves cooling
- Durable automotive-style ball bearing and stainless-steel reed valves
- Easy Viewing Oil Sight Glass
- Simply check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 22-Gallon Capacity ASME Tank
- Fully enclosed belt guard protects you and the belt
- Manual tank drain for quick tank draining to prevent rust
- Pneumatic wheels and sturdy grip handles make transporting effortlessly
- Top-Mounted Control Panel
- 3/8" quick connect outlet and easy to read pressure gauges
- Regulator allows maximum air flow for peak tool performance
- 1-Year Limited Warranty
- Protects your investment
- Shipped with 100% full synthetic air compressor oil
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MP-9022G
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
CC
270
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
20
CFM Rated @
90 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
22 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
242 Pounds
CARB Compliant
No
Certification
ASME
Consumer Warranty
1 Year
Product Length
28 Inches
Product Width
48 Inches
Product Height
44 Inches
Power Type
Gas
UPC
376204971683
Reviews
(1)
MEGA Compressor MP-9022G Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Manuals
MP-9022G
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

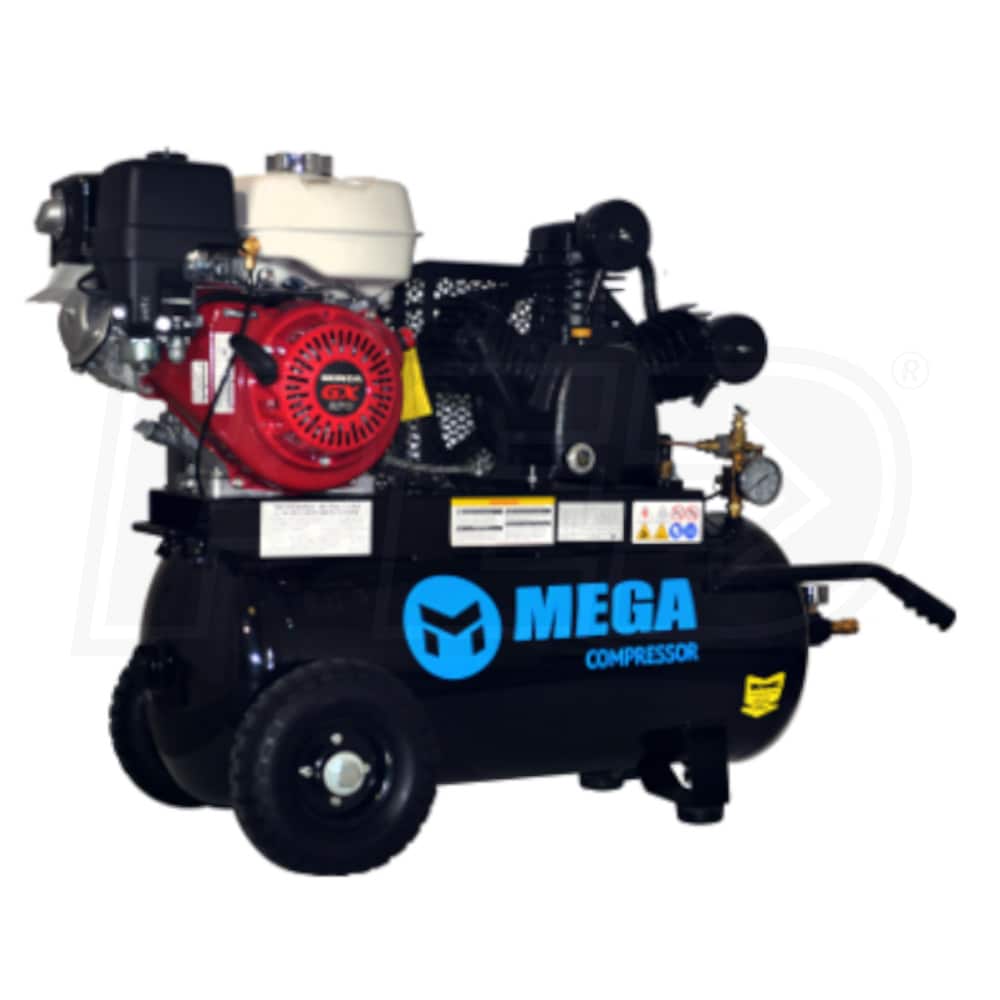

MEGA 9-HP 22-Gallon Gas Air Compressor w/ Honda Engine (150 PSI)
