Features
Grade
Consumer
Voltage
230 Volt AC
Phase
1-Phase
CFM
16.9
Tank Size
80
- Powerful 5 HP Industrial Electric Unit Is Designed for Heavy Use
- Cast iron cylinder & head last longer than lightweight components
- Needs a 230 volt, 1 phase, 22.5 amp circuit
- Splash Lubricated, Cast Iron Crankcase
- Rugged and durable to work hard and last a long time
- Manual drain valves for proper maintenance
- Large Flywheel With 14 Gauge, 1 Piece Belt Guard
- Allows extra cooling; prolongs unit life
- Guard allows easy access to belts; powder coating resists rust
- All This On A Sturdy Chassis
- Powder coated, ASME certified, 80 gallon receiver tank
- Magnetic starter with mounting box and wiring
- Two-stage intercooler helps maintain safe working temperature
- Large canister intake filter keeps airflow clean & steady
- Generous Warranty
- 1 year limited warranty on electric motor
- 2 year limited pump exchange program
- 2 year limited warranty on the rest of the unit
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ACS-23105-80V
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
22.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.9
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
466 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
26 Inches
Product Height
72.5 Inches
Power Type
Electric
UPC
016977990817
Additional Model Numbers
AM2-SE05-80M, ACS-23105-80V
Reviews
Mi-T-M ACS-23105-80V Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How To Pick The Perfect Two-Stage Air Compressor
If you've ever worked in manufacturing or visited your local garage, you might ...
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make itsimple. W...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

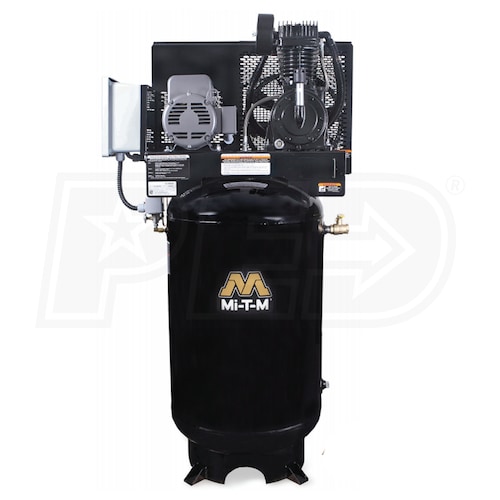

Mi-T-M 5-HP 80-Gallon Two-Stage Air Compressor
