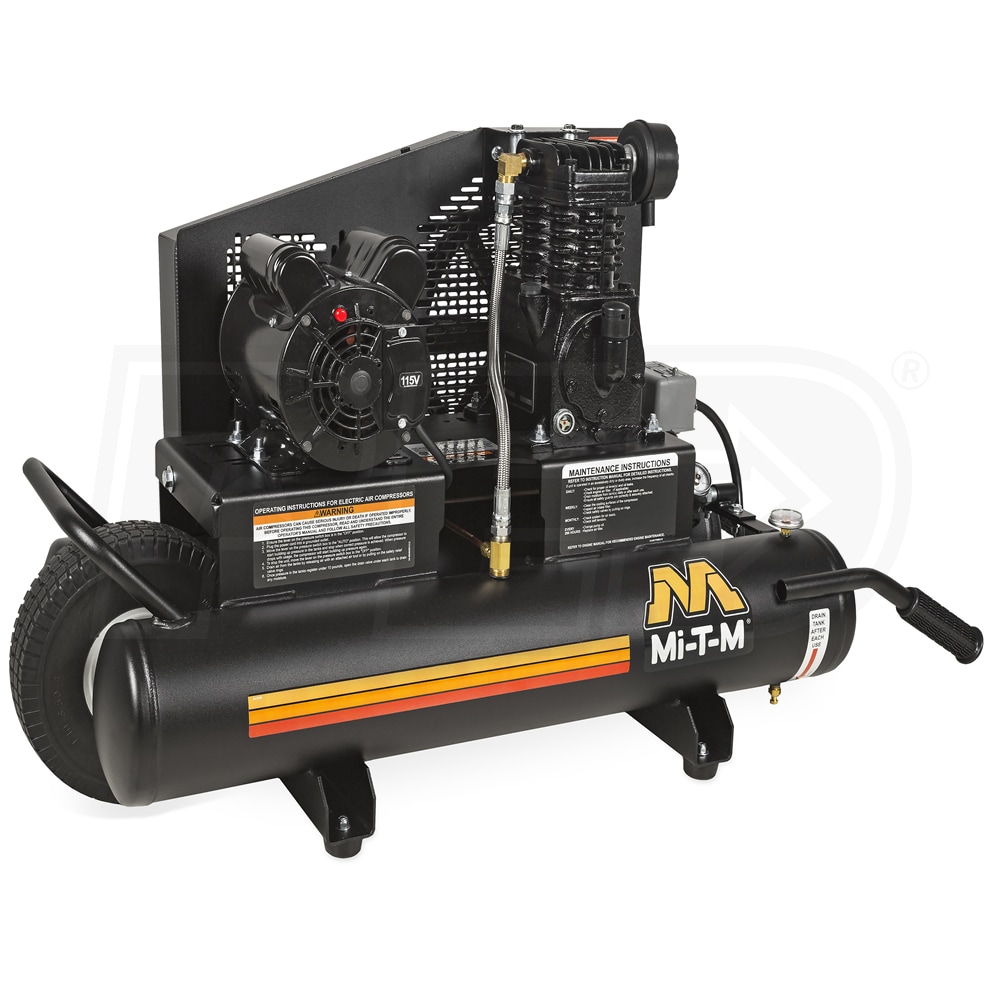

Mi-T-M 1.5-HP 8-Gallon Electric Wheelbarrow Air Compressor (120V 1-Phase)
Model:
AM1-PE15-08M
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
CFM
6.5
Tank Size
8
- Industrial UL Listed Electric 1.5 HP Motor Works Inside Or Out
- Auto start/stop with industrial grade pressure switch
- Thermal overload motor protection; uses 13 amp circuit
- Quality Cast Iron 6.5 CFM @ 100 PSI Single Stage Compressor
- Rugged and long lasting; aluminum head dissipates heat
- 10" flywheel for extra cooling and longer life
- Belt Tightening System
- Pulls engine straight to ensure constant belt alignment
- 8 Gallon Powder Coated Twin Tanks
- Includes regulator and 2 gauges for tank and outlet pressure
- 7 gauge base plate reduces vibration; steel braid discharge hose
- Ergonmically Designed
- Convenient lifting handles
- Pneumatic tire with tube and steel hub can take on rough terrain
- Generous Warranty Program
- 1 year limited warranty on electric motor
- 2 year limited pump exchange program
- 2 year limited warranty on tanks and frame
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
AM1-PE15-08M
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Engine
HP
1.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6.5
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
170 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44.5 Inches
Product Width
18.5 Inches
Product Height
25 Inches
Power Type
Electric
UPC
016977115081
Additional Model Numbers
AC1-PE15-08M, AM1-PE15-08M
