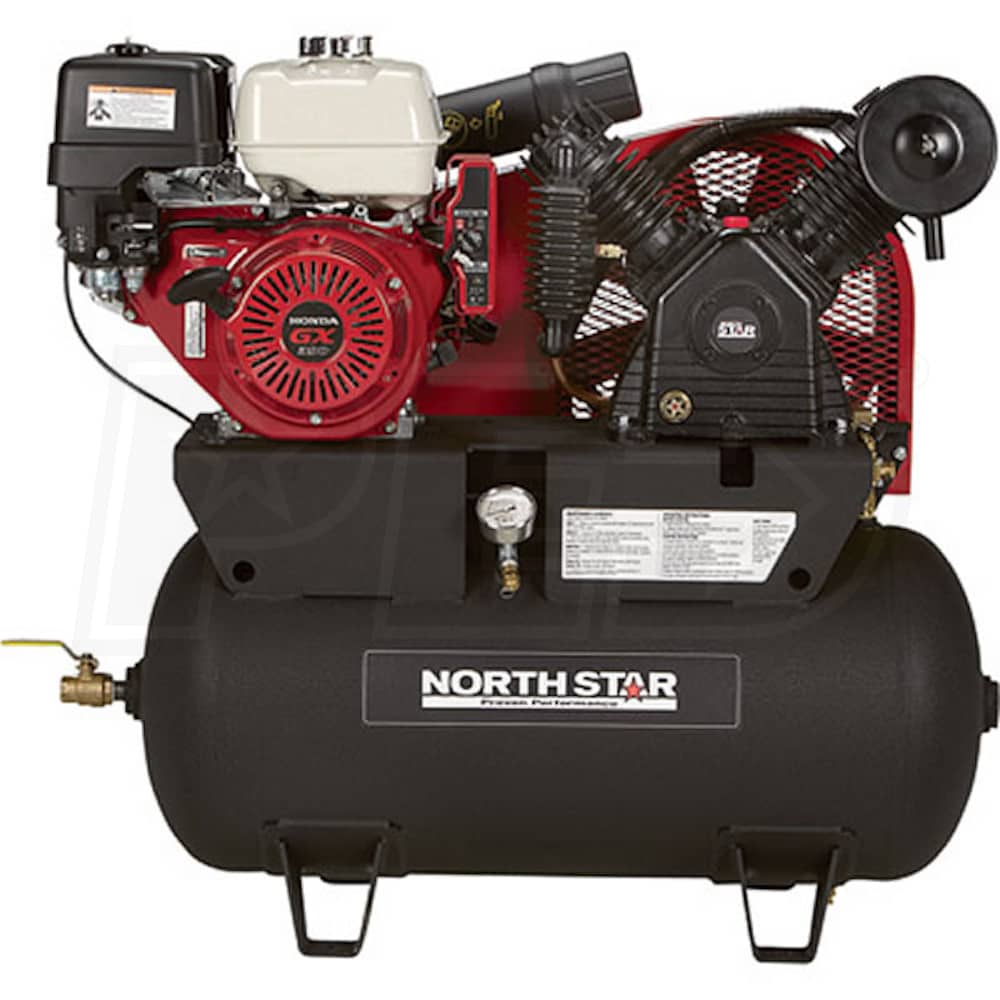

NorthStar 12-HP 30-Gallon Truck Mount Air Compressor w/ Honda Engine
NorthStar 12-HP 30-Gallon Truck Mount Air Compressor w/ Honda Engine
Model: 459382
Features
Specifications
Reviews
How-To Articles
Share

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

24.4

Tank Size

30

  • Honda GX390 OHV Engine
  • Electric start with recoil backup for easy starts
  • 3 Amp battery charging circuit (battery not included)
  • Full Cast Iron Pump
  • V-style cylinder design for superior cooling
  • Pump head made of FC35 Grade cast iron for long service life
  • Low Vibration Technology (LVT)
  • Dynamically balanced pump for smooth operation & long life
  • Heavy Cast Iron Flywheel
  • Oversized provides extra momentum & cooler operation
  • 100% Duty Cycle
  • Delivers 24.4 CFM @ 90 PSI up to 175 PSI maximum
  • Pressure Regulator
  • Easily control outlet pressure & monitor with liquid filled gauge
  • 3/4in. NPT outlet on 30 gallon ASME certified tank
  • Sight glass for quick viewing of oil level
  • Easy Start Lever On Unloader Valve
  • Isolates pump from tank pressure so engine starts load-free
  • Durable Steel Belt Guard
  • Protects the belt & the operator

Specifications

459382
specs product image PID-13617
Engine
HP
12
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
379 Pounds
Certification
ASME
Consumer Warranty
4 Years
Commercial Warranty
2 Years
Product Length
41 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
