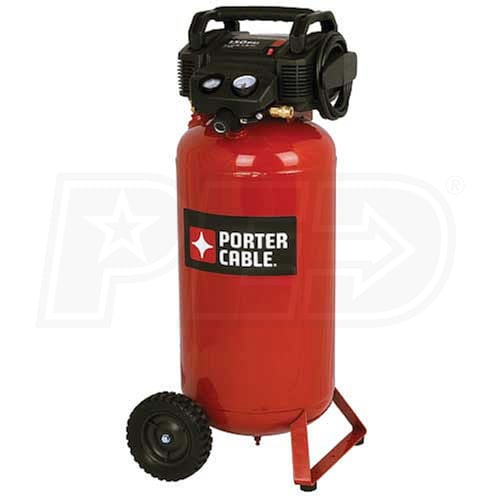

Porter Cable 1.1-HP 17-Gallon Portable Single-Stage Air Compressor

Model:

C6001

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Porter Cable 1.1-HP 17-Gallon Portable Single-Stage Air Compressor
Porter Cable 1.1-HP 17-Gallon Portable Single-Stage Air Compressor
Model: C6001
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

3.3

Tank Size

17

  • Universal 120 Volt Motor
  • Starts easily in cold weather or with extension cord
  • 3.3 SCFM @ 90 PSI
  • Fast recovery time per ISO1217
  • 17 Gallon Vertical Tank
  • Smaller footprint for easy storage
  • Air Pressure Regulator
  • Controls air pressure shown on the outlet pressure gauge
  • Allows precise use for tools & inflation; 1/4" quick connector
  • Oil Free Pump
  • Maintenance-free operation; no messy oil spills
  • Console Cover With Built-In Handle
  • Protects vital components while making unit easier to transport
  • 2 Easy To Read Gauges
  • Monitor tank pressure & outlet pressure for optimum performance
  • Advanced Design Cooling System
  • Engineered fan moves large amounts of air to keep pump cool
  • Automatic Reset Thermal Overload Protector
  • Shuts down unit if it overheats; auto restart when cool

Specifications

C6001
specs product image PID-6990
Engine
HP
1
Motor
Voltage
120 Volt AC
Phase
1-Phase
Amp Draw
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
3.3
CFM Rated @
90 PSI
CFM @ 40 PSI
4.3
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
17 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Weight
67 Pounds
Consumer Warranty
1 Year
Product Length
43 Inches
Product Width
19 Inches
Product Height
22 Inches
Power Type
Electric
UPC
885911030434
