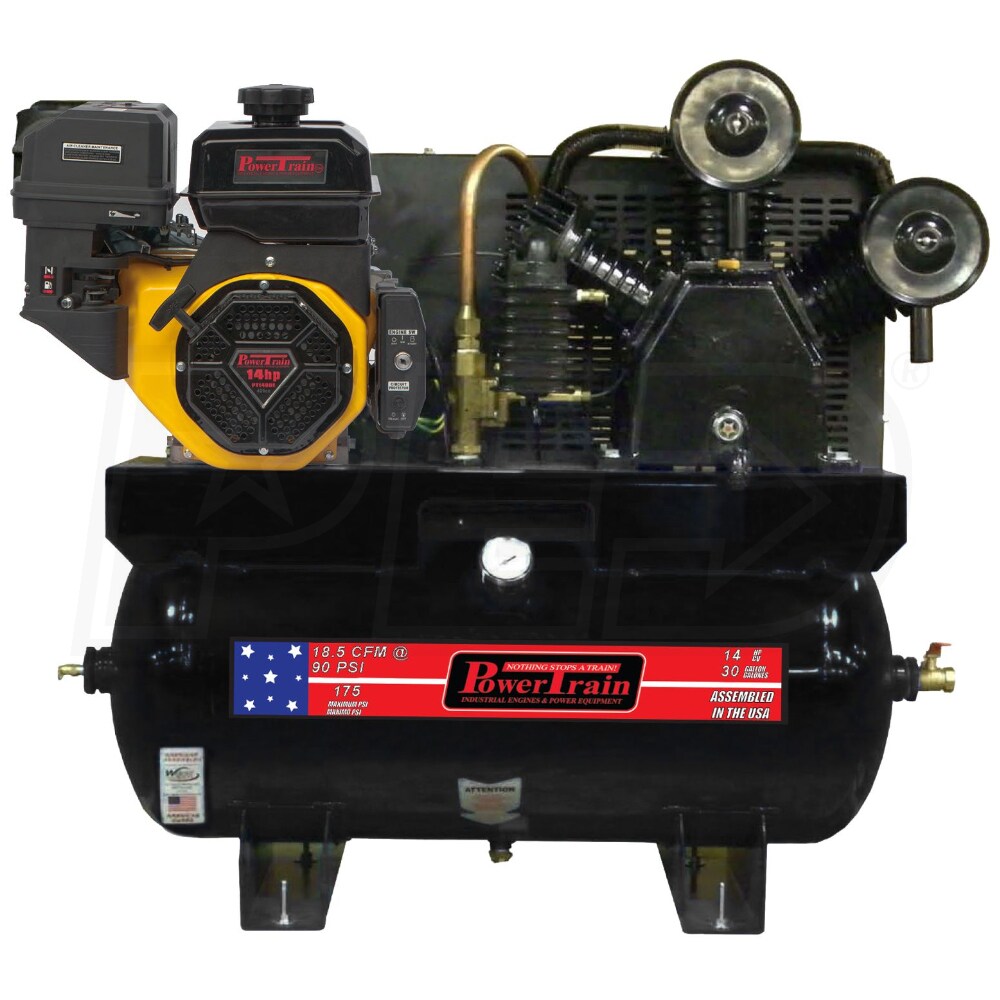

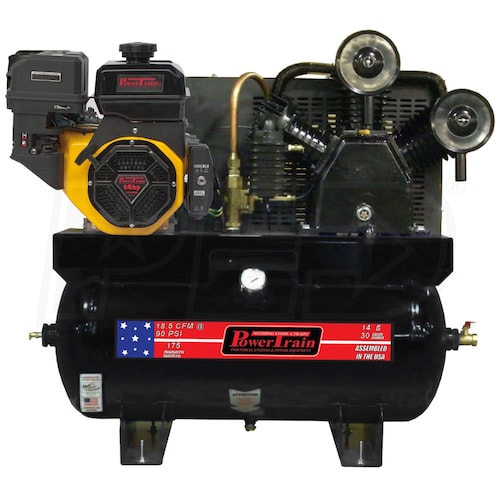

PowerTrain 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start

Model:

PT-14G30TRKE-V2

Write A Review
$2,399.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

PowerTrain 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start
PowerTrain 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start
Model: PT-14G30TRKE-V2
$2,399.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

PowerTrain

CFM

18.5

Tank Size

30

  • Truck Mounted 2 Stage Unit Produces 18.5 CFM @ 90 PSI
  • Designed for farm duty, hobbyist, and semi-pro jobs
  • Sturdy and reliable air pressure wherever you need it
  • Electric & Manual Start (Battery & Cables Not Included)
  • Makes it easy to start your compressor even without a battery
  • 14 HP PowerTrain OHV Engine
  • Automatic stop by oil alert protects your investment
  • Cast iron cylinder sleeve, air filter oil bath and EPA & CARB Compliant
  • OHV provides more power for easy starting, less fuel-use & lower emissions
  • Engine Idle Control
  • Control and regulates the engine idle speed
  • Reduces operating costs & excessive wear
  • Rugged 3 Cylinder Cast Iron Pump
  • High efficiency reed valves for maximum performance
  • Built to work hard and last a long time
  • Efficient heat removal from flywheel for cooler running
  • Individual & Removable Cylinders
  • Provide smoother & cooler operation
  • Allows for easy maintenance
  • "V" Style Design
  • Minimizes vibration, improves cooling, extends compressor life
  • Large bore pistons give the ability to run at less RPM
  • Large Air Filters With Automotive Drop-In Style Elements
  • Extend compressor life, easy to maintain
  • 30 Gallon ASME Tank
  • Rated to 200 PSI for safety; heavy duty 3/4" ball valve included
  • Convenient oil drain on front of unit
  • Sturdy metal belt guard protects the belt & the user
  • Easy View Oil Sight Gauge
  • Monitor pump oil level at a glance
  • Simplifies maintenance
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

PT-14G30TRKE-V2
specs product image PID-145352
General Information
Product Category
Air Compressor - Portable
Engine
HP
14
Auto Idle
Yes
Engine Brand
PowerTrain
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
401 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
020791500787
