Features
Grade
Consumer
Style
Portable - Vertical
CFM
3.5
Tank Size
20
- Direct Drive Operation
- Oil free, low maintenance operation
- No belts or pulleys to replace
- Easy cold weather starting
- 20-Gallon Vertical Tank w/ Pre-Attached Wheels
- Takes up less space than a horizontal tank & easy to move around
- Fully Enclosed Shroud
- Covers working components and protects your investment
- 1.5-HP Induction Motor
- Long lasting for maximum performance and reliability
- 120-Volt
- Plugs into standard outlet
- Added Equipment
- Pressure regulator, pressure gauges, quick connect air outlet
- On/Off switch
- Extra Value Kit Included
- 25' Coil Hose, Blow Gun w/ safety nozzle
- Inflation Needle and Adapter, Dual Tire Chuck, Quick Coupler
- 1/4" Male and Female Thread Connectors & Thread Sealant
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
VLF1582019
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Engine
HP
1.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
3.5
CFM Rated @
90 PSI
CFM @ 40 PSI
4.8
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
107 Pounds
Certification
UL, ASME
Consumer Warranty
1 Year
Product Length
20.5 Inches
Product Width
19.75 Inches
Product Height
43.75 Inches
Power Type
Electric
UPC
846212002377
Reviews
(1)
ProForce VLF1582019 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Manuals
VLF1582019
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

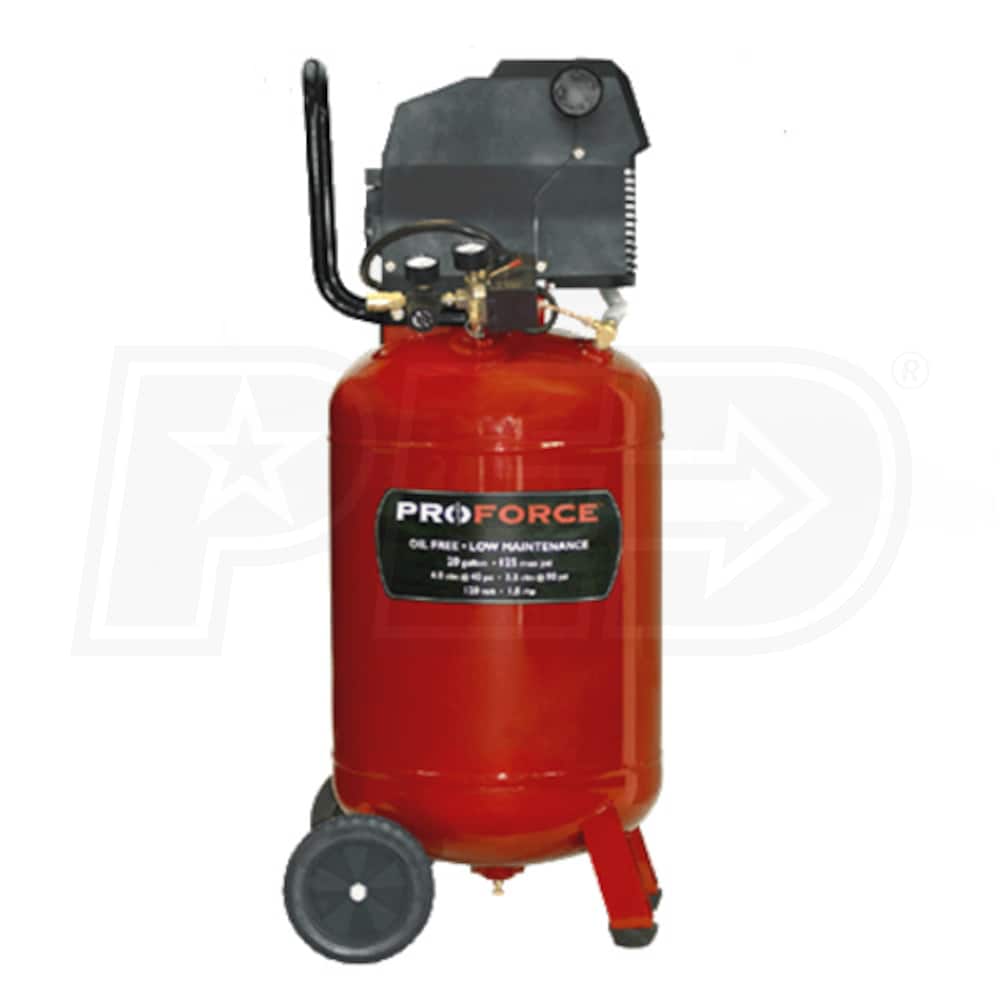

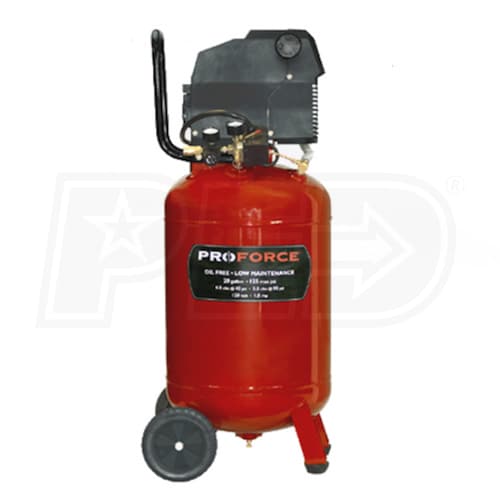

Pro-Force 1.5-HP 20-Gallon (Direct Drive) Air Compressor
